- 8 -
Connecting the Classic II
• Having ensured that the power supply is set to
the correct voltage you can begin to connect the
Classic II to the power supply. Do not connect the
power to the mains or switch on the microphone
before connecting it to the power supply.

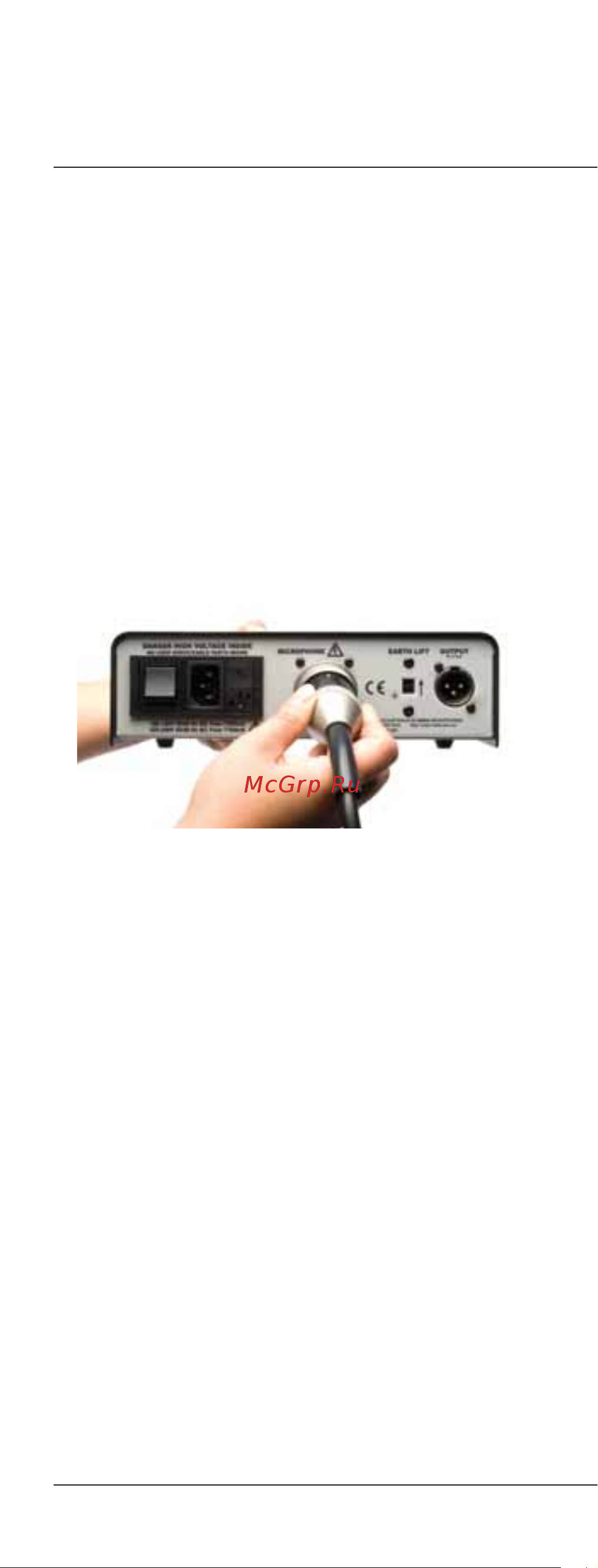

• Connect the male multicore plug of the Classic II
cable to the input socket on the rear of the power
supply. The white dot on the cable indicates the
top side, to be facing upwards.
• Place the Classic II into the SM2 shock mount,
ensuring it is fi rmly connected to a microphone
stand capable of supporting the microphone’s
weight.
• Connect the female multicore plug of the
Classic II cable to the microphone. The white dot
on the cable should align with the front of the
microphone, indicated by its gold dot.
Ensure that both plugs are correctly aligned and
pushed fi rmly into their respective sockets. By
screwing the threaded locking nut of the cable to
the base of the microphone, the Classic II should
now be seated fi rmly in the mount.
