CONTROLS & CONNECTIONS

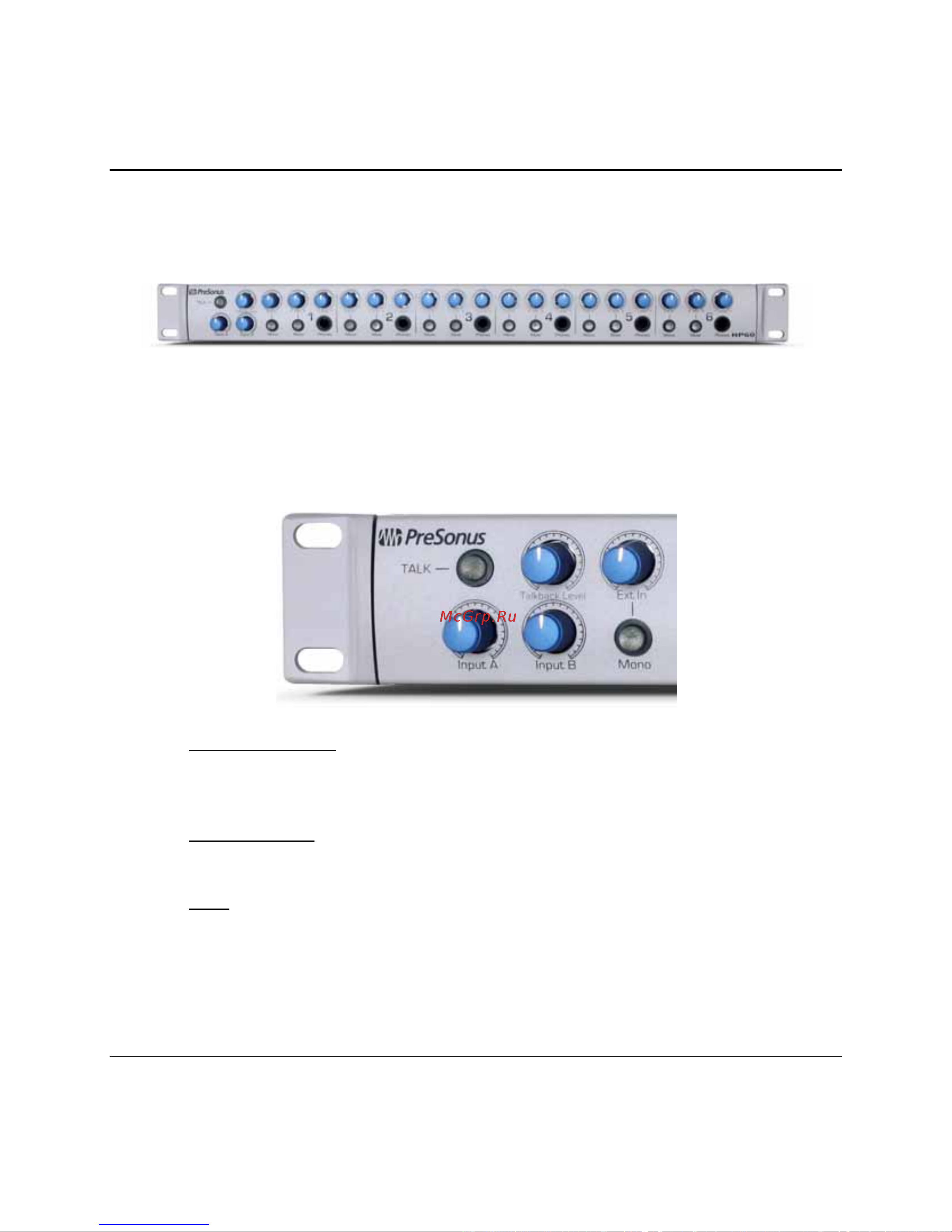

3.1 FRONT PANEL LAYOUT

The front panel of the HP60 is divided into two sections: the Master Input Controls and the

six numbered Headphone Channel Controls.

3.1.1 Master Input Controls

• Input A & Input B. These knobs control the input levels of the Input A and Input B

(Mix A & Mix B) inputs on the rear of the chassis into the HP60. These two mixes

can be separately mixed together on each headphone output channel.

• Talkback Level. This knob controls the input level of the external XLR dynamic

microphone connected to the

MIC

input on the rear of the chassis.

• Talk.

When the Talk button is pressed, the Talkback microphone input is activated.

This is a momentary type switch – the microphone is ‘ON’ only while the button is

pressed. An external foot pedal connected to the

External Control

input on the rear

of the chassis can also be used to activate the Talkback microphone.
