PRESONUS HP60 [12/20] Controls connections

CONTROLS & CONNECTIONS

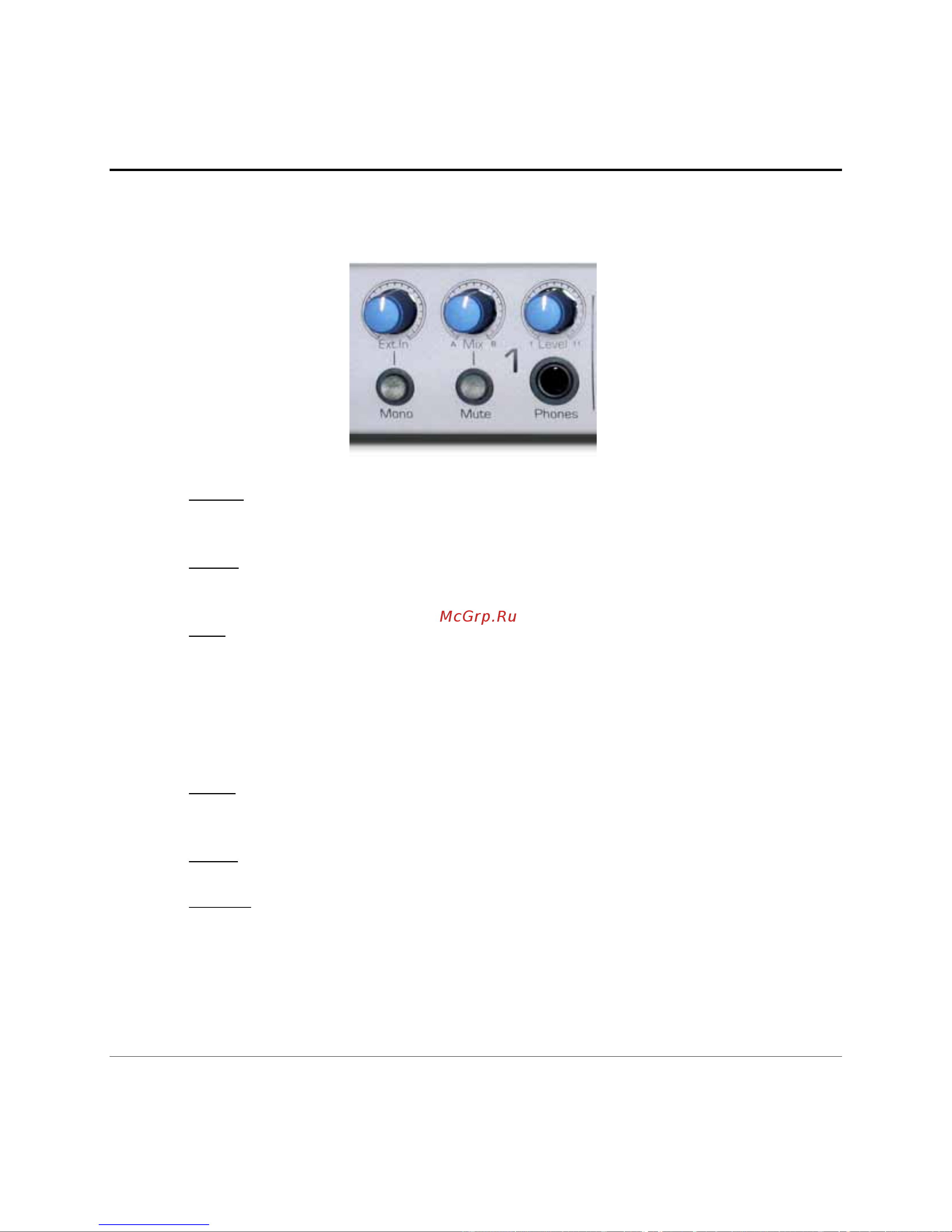

3.1.2 Headphone Channels: Level Controls

• Ext In. The external in knob controls the input level and amount of the

Stereo Ext.

on the rear of the chassis for the channel.

• Mono. When the Mono button is pressed, the

Stereo Ext. In

will act as a mono

input – summing the signals from the TIP and the RING of the ¼” connection.

• Mix. The Mix knob controls the amount of each of the two mixes A & B for the

channel. As the knob is turned counterclockwise (left), the amount of Mix A

increases, and the amount of Mix B decreases. As the knob is turned clockwise

(right), the amount of Mix A decreases, and the amount of Mix B increases. With

the Mix knob in the “12 o’clock position,” an equal amount of Mix A and Mix B is

sent to the channel’s headphones.

• Mute. When the Mute button is pressed, both Mixes are muted for the channel.

This is most commonly used as a type of “Solo” for the external stereo input.

• Level.

The Level knob controls the volume level of the channel’s Phones output.

• Phones.

This is the channel’s stereo headphone output.
