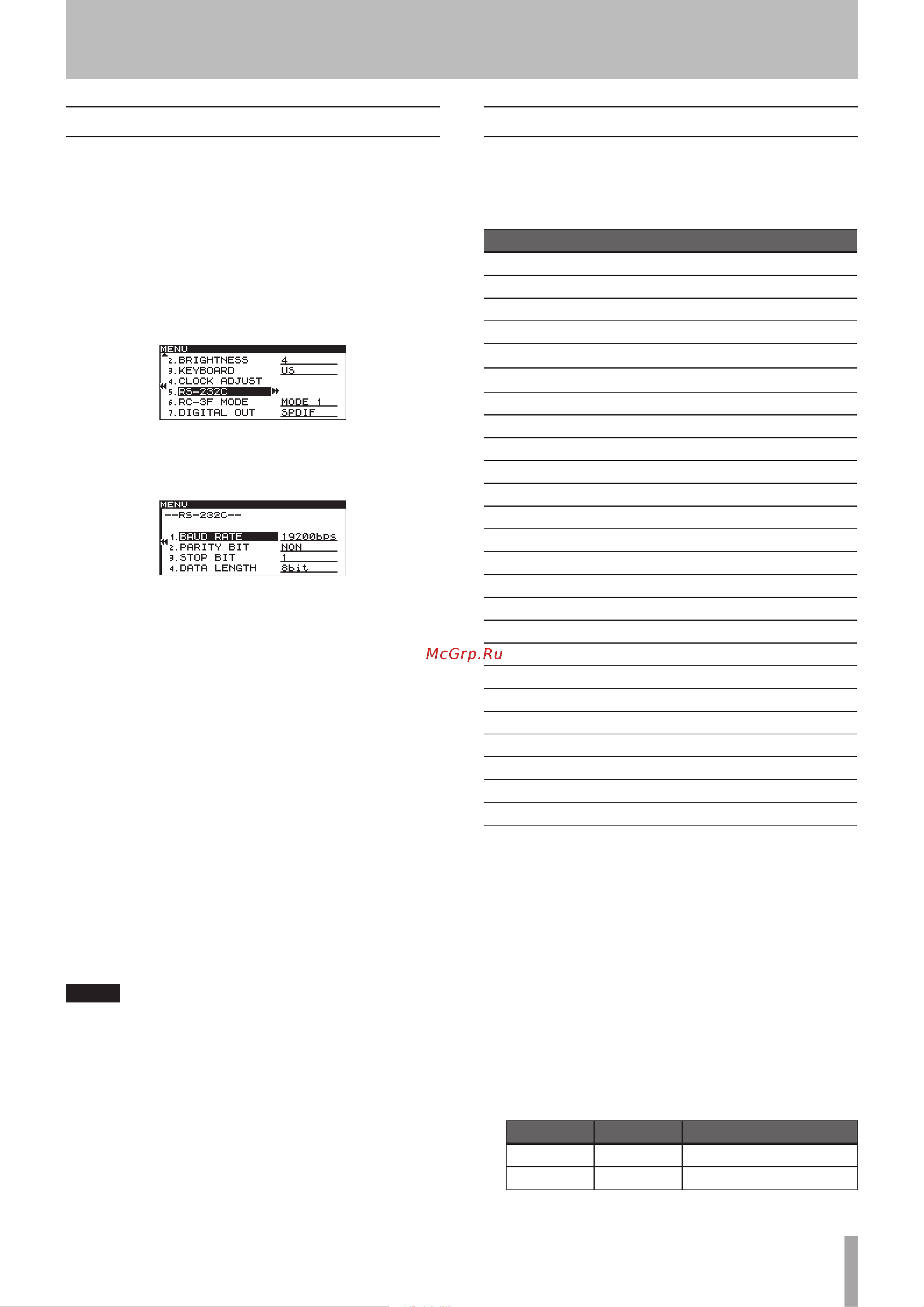

Using the RS-232C connector
Using the 9-pin, D-sub CONTROL I/O RS-232C connector,
which is compliant with RS-232C standards, you can
control the unit via this serial connection from a computer
or other external device.
Use the menu to make settings related to communication.
1 Press the MENU [JOG] button (or remote control
MENU button) to open the
MENU
screen.
2 Open the
UTILITY
menu.
3 Select
RS-232C
.
4 Press the MULTI JOG dial or , [LOCK] button (or
remote control ENTER or t button) to open the
RS-232C
setting screen.
5 Set the items on the
RS-232C
screen.
BAUD RATE
Set the baud rate (communication speed).
Options:
4800 bps
,
9600 bps
,
19200
bps (default
value),
38400 bps
PARITY BIT
Set the parity bit use.
Options:
NON
(none, default value),
EVEN
,
ODD
STOP BIT
Set the stop bit.
Options:
1
(default value),
2
DATA LENGTH
Set the data length.
Options:
7
,
8
(default value)
6 After setting each item, press the HOME/DISPLAY
button (or remote control HOME/DISP button) to
return to the Home Screen.
NOTE
RS-232C settings are retained even after the power is
turned OFF.
For details on the unit’s RS-232C command protocol,
please contact TASCAM customer support.
Using the parallel connector
Using the CONTROL I/O PARALLEL connector, you can
control this unit through serial connection with a TASCAM
RC-SS20 or other external controller. The pin assignments
are as follows.
Pin Function IN/OUT
1 GND
2 PLAY/Flash 1 In
3 STOP/Flash 2 In
4 RECORD/Flash 3 In
5
/ (Next)/Flash 4
In
6
. (Previous)/Flash 5
In
7 Flash Load In
8 Fader Start In
9 Flash Tally Out
10 Ready Tally Out
11 Record Tally Out
12 Stop Tally Out
13 Play Tally Out
14 Remote Select*
2
In
15 Ready/Flash 6 In
16 Call/Flash 7 In
17 Auto Cue/Flash 8 In
18 Auto Ready/Flash 9 In
19 Pitch/Flash 10 In
20 Flash Page*
3
In
21 EOM Tally Out
22 Device Select Tally 1*
4
Out
23
24 Device Select Tally 2*
4
Out
25 +5V*
1
In: Active low external command reception (operates
when ground 30 ms or longer)
Out: Signal for transport status display by open drain
(maximum voltage 50 V, maximum current 50 mA)
*1 Maximum supplied current 100 mA.
*2 Pin 14 (Remote Select)
When set to high, input pins with two functions shown
above with a “/” (pins 2–6 and 15–19) use the first
function, and can be used for ordinary parallel control.
When set to low, these input pins function as flash
start keys.
*3 Pin 20 (Flash Page)
When pin 14 (Remote Select) is set to low, the high/low
setting of pin 20 determines the track assignments.
#14 #20 Flash start tracks
Low High 1–10
Low Low 11–20
14 − Using control I/O (SS-CDR200/SS-R200 only)
