76 TASCAM SS-CDR200/SS-R200/SS-R100

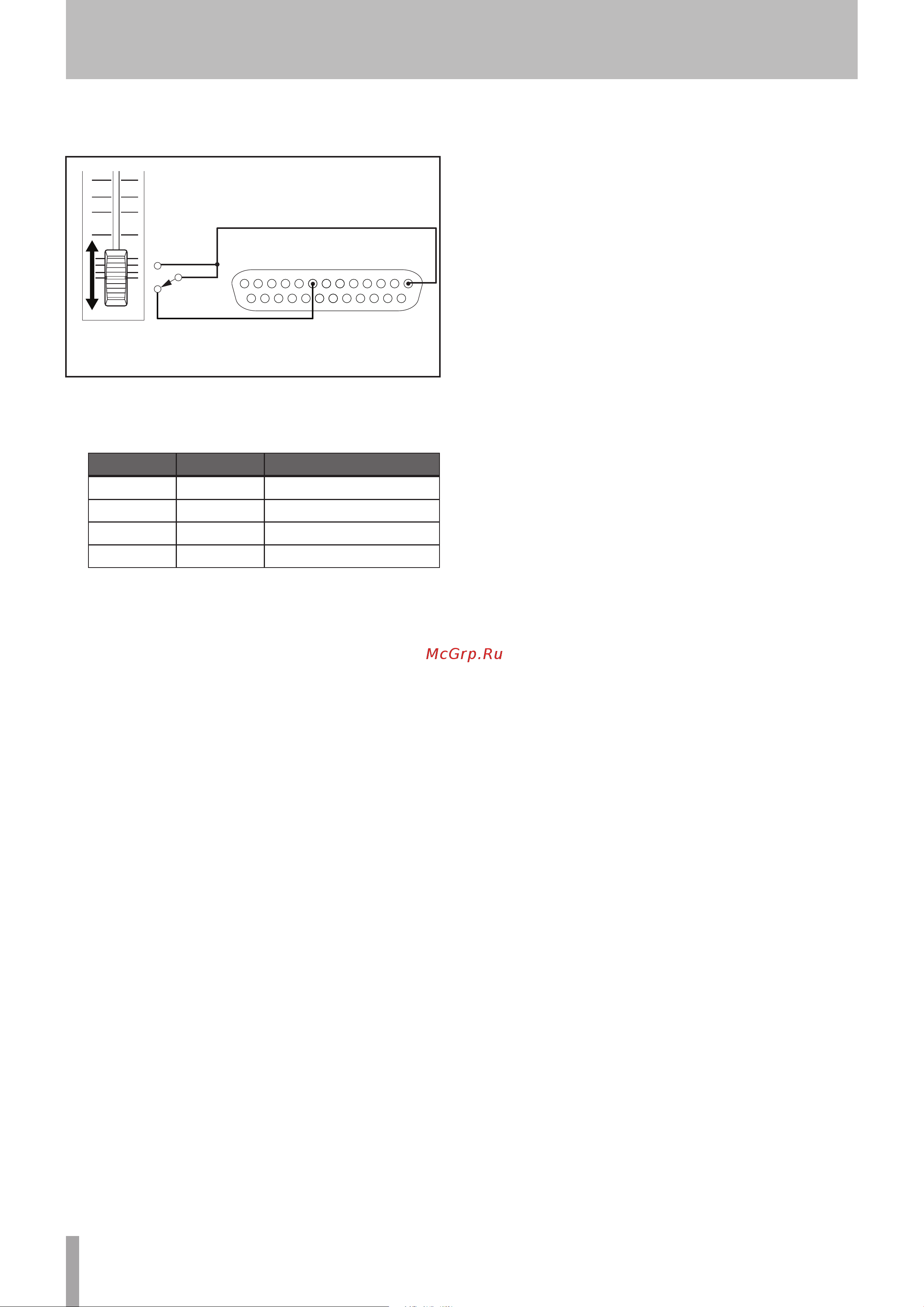

The following is an example of connecting for playback
control of this unit using fader start/stop
START
STOP
Pin 1
FADER START
Pin 8
GND
PARALLEL
*4 Pin 22/24 (Device Select Tally 1/2)
Depending on the high/low settings of pins 22 and 24,
the device assignment will be as follows.
#22 #24 Device assignment
Low Low USB
High High SD
High Low CF
Low High CD
14 − Using control I/O (SS-CDR200/SS-R200 only)
