Revo 4 Operation Revo 4 Traits & Values - 4 Channel DMX Mode

Sound Active Mode: This mode allows a single unit or several units

linked together, to run to the beat of the music.

1. Tap the MENU button until “SOUN” is displayed, and press

ENTER.

2. Tap the UP or DOWN buttons until “ON” is displayed and press

ENTER.

3. The optional UC3 Controller (not included) may be used to con-

2. Tap the UP or DOWN buttons until you nd your desired show,

and press ENTER to conrm.

3. The optional UC3 Controller (not included) may be used to con-

trol different functions including blackout.

Revo 4 UC3 Control

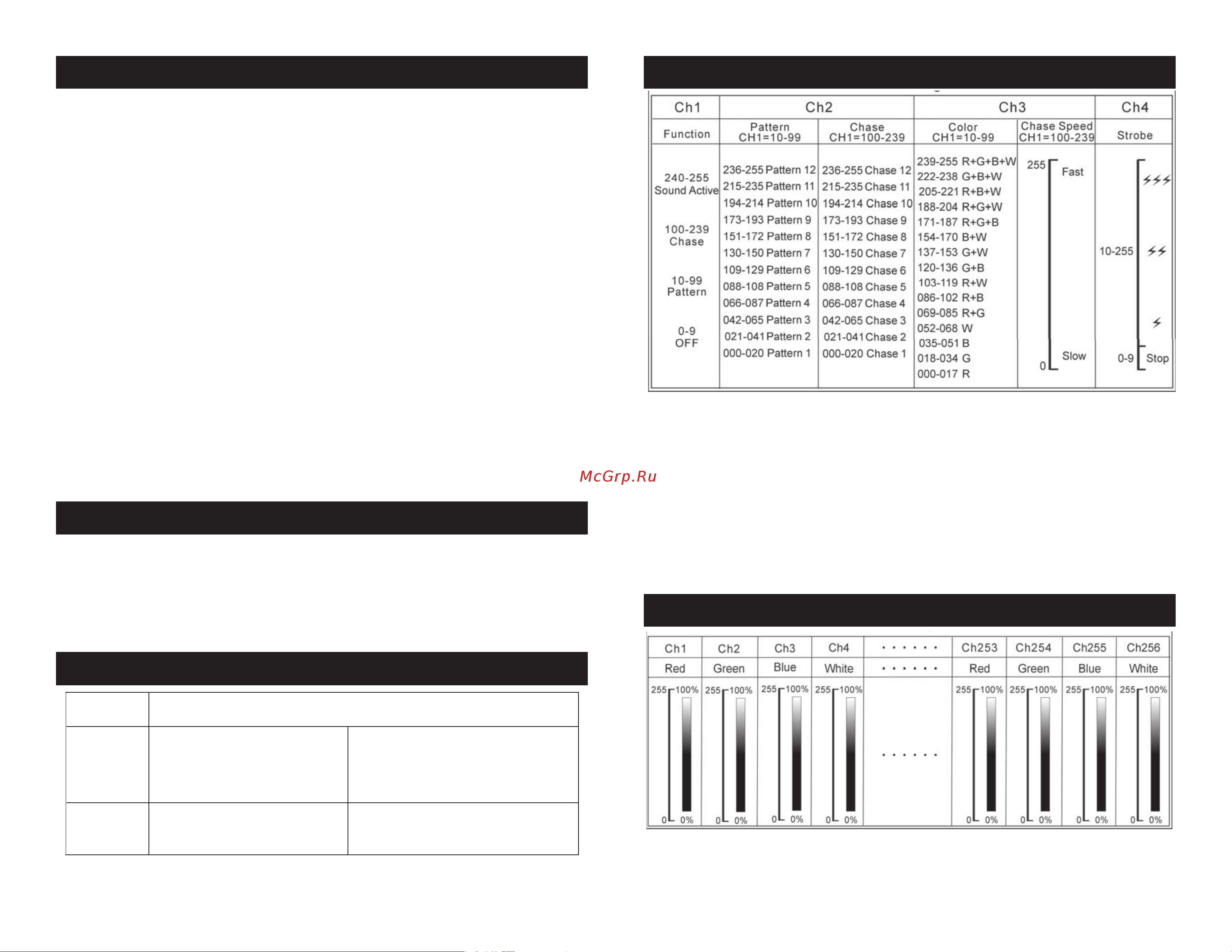

Revo 4 Traits & Values - 256 Channel DMX Mode

Using 4 Channel DMX Mode:

To project a pattern using Channel 2, the Channel values must

be between 10-99. This also applies to changing the pattern

color using Channel 3.

To run the chases using Channel 2, the Channel 1 values must

be between 100-239. This also applies to controlling the chase

speed using Channel 3.

Revo 4 Power Cord Daisy Chain
