Alto ALTOGATE [10/15] Screen
![Alto ALTOGATE [10/15] Screen](/views2/2008642/page10/bga.png)
9
For XLR connector
XLR Unbalanced input XLR alanced inputB
2 Hot (+ve)
3 Cold (-ve)
1 Screen
Link3to1
2 Hot (+ve)
1 Screen
b. In Line Connection

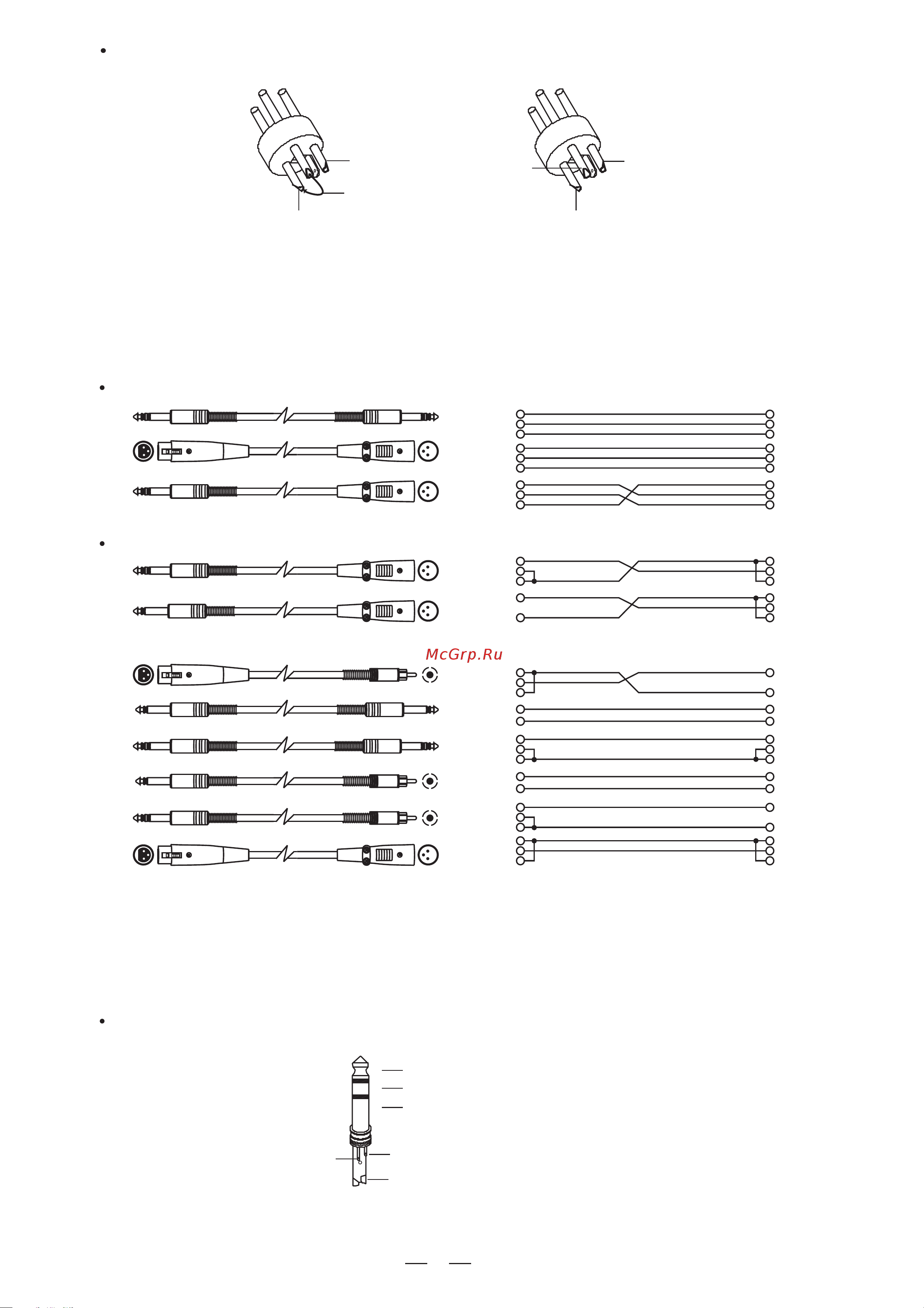

Please see following drawing for details:
