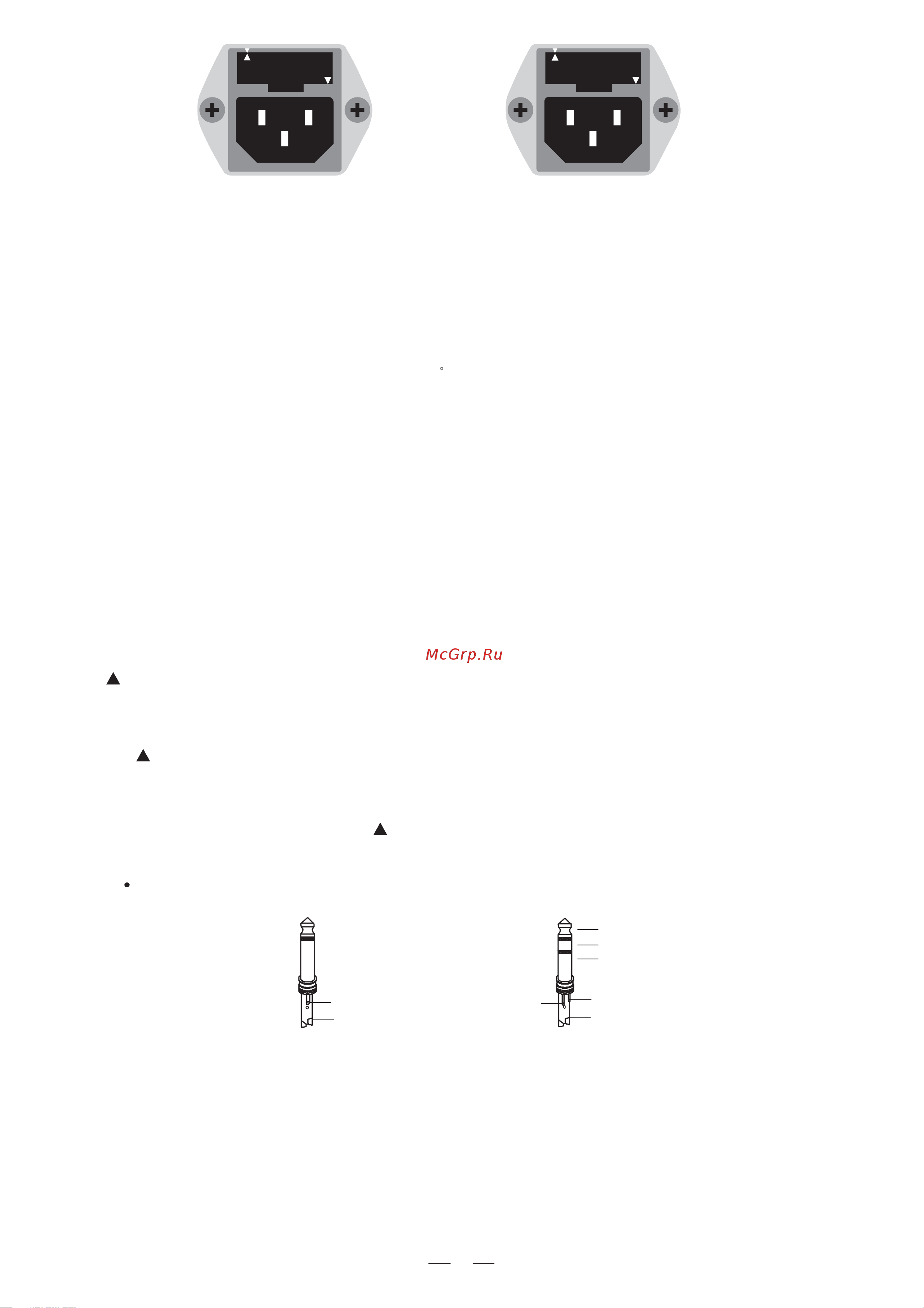

15. AC Inlet
Please don't plug power cord into this unit and AC power if voltage has not been correctly set.
THIS IS SET FOR
110V AC TO 120V
AC OPERATION
THIS IS SET FOR
220V AC TO 240V
AC OPERATION
220-240V
110-120V
110-120V
220-240V
16. Audio In
The inputs are balanced XLR and 1/4" TRS connectors, they can be used to input signals.
17. Audio Out
The outputs are balanced XLR and 1/4" TRS connectors, they can be used to output signals.
4. INSTALLATION AND CONNECTION
4.1 Mains Connection
LTO GATE is provided with dual voltage plug. You must check the power supply voltage available in your country
before connecting the power cord in the wall outlet. Please see Page 8 for further information.
4.2 Audio Connection
The LTO GATE is equipped with balanced XLR connectors as well as 1/4" phone jack and can be connected with
other units in different ways to support a vast range of applications without experiencing a signal loss.
8
The fuse-holder above the AC connector on the rear of the chassis has 3 triangular markers (please refer to the
above pictures), with two of these triangles opposing each other, your unit is set to the operating voltage printed
next to these markers.
To change, pull fuse-holder out and rotate 180 , then push in again.
a. Wiring Configuration
Both types of connectors available on LTO GATE can be wired in balanced and unbalanced modes.
Please see following drawing for details:
For 1/4" TRS jack
Unbalanced Balanced
Gnd/Screen
Tip
Hot (+ve)
Cold (-ve)
Gnd/Screen
Tip
Ring
Sleeve
