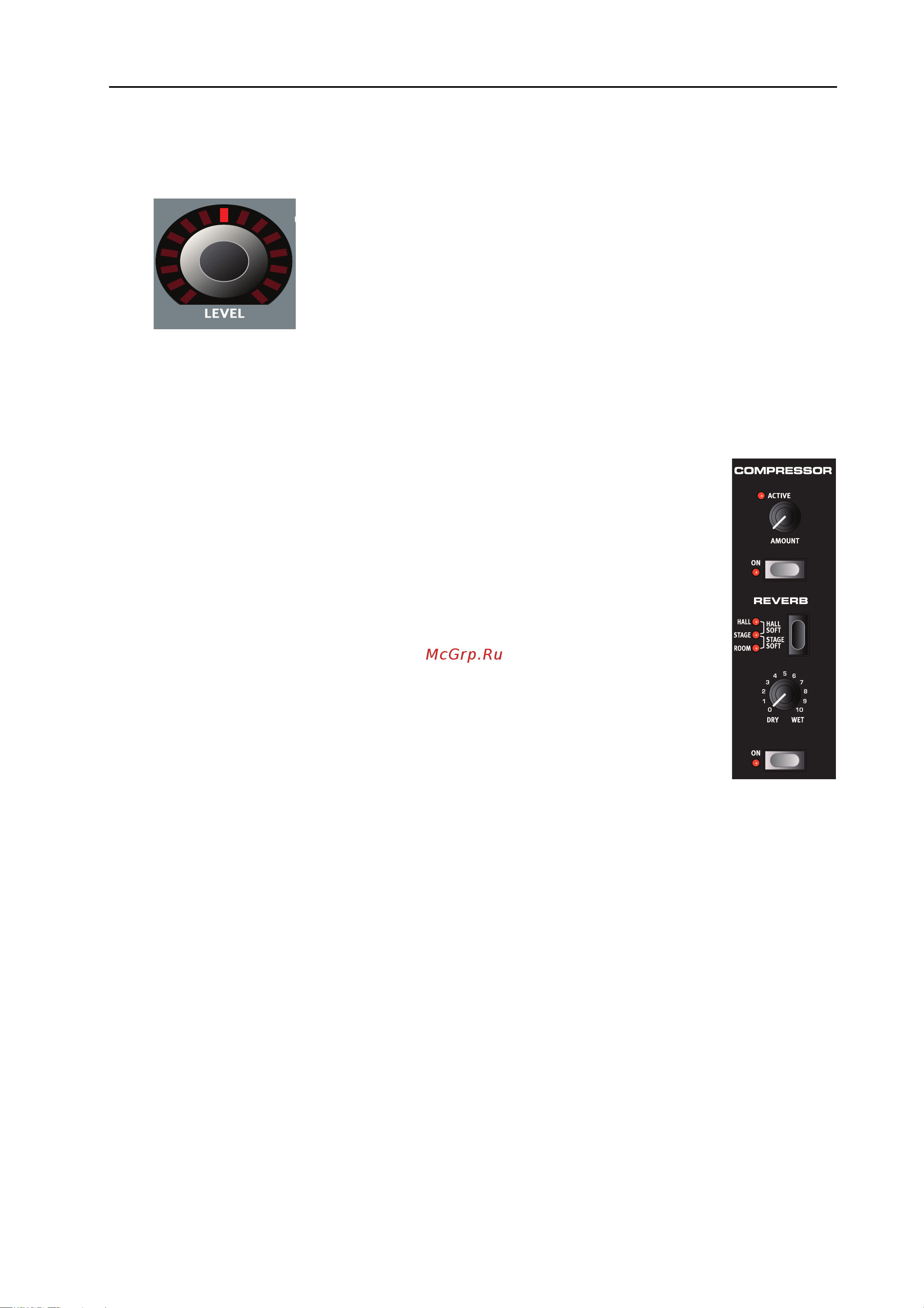

Nord Stage EX v6.x 4. Getting Started: Setting output Level for instruments
Page 15
SETTING OUTPUT LEVEL FOR INSTRUMENTS
Each instrument has a LEVEL rotary encoder at the top of the panel. This adjusts the output level for
the corresponding instrument section. The L
EVEL encoders can be controlled in a Morph scenario.
ADDING A GLOBAL EFFECT
Nord Stage EX features four effect groups; the Rotor section (rotary speaker effect),
the Effects section (three separate effects units; Effect 1, 2 and Delay), the Ampsim/
EQ section (overdrive and amplifier/speaker modelling with EQ), and a Compressor
and Reverb section. The Compressor and Reverb effects are global, and affect all in-
struments routed to the main CH OUT 1/2 jacks. The Rotor can process the same
instrument from both panels (Organ A&B, Piano A&B or Synth A&B). The other
effects can process one freely selectable instrument per Panel.
• To add a global reverb effect to a sound, simply press the O
N button in the Reverb
section.
Now you can adjust the amount of reverb effect using the D
RY/WET knob, and set
the basic reverb character (Hall/Hall soft/Stage/Stage soft/Room) using the Selector
button!
How to use the other effects is described in the Effects chapter, see “The Effects” on
page 49.
