5. The Program section: Overview Nord Stage EX v6.x
Page 16
5. THE PROGRAM SECTION
OVERVIEW

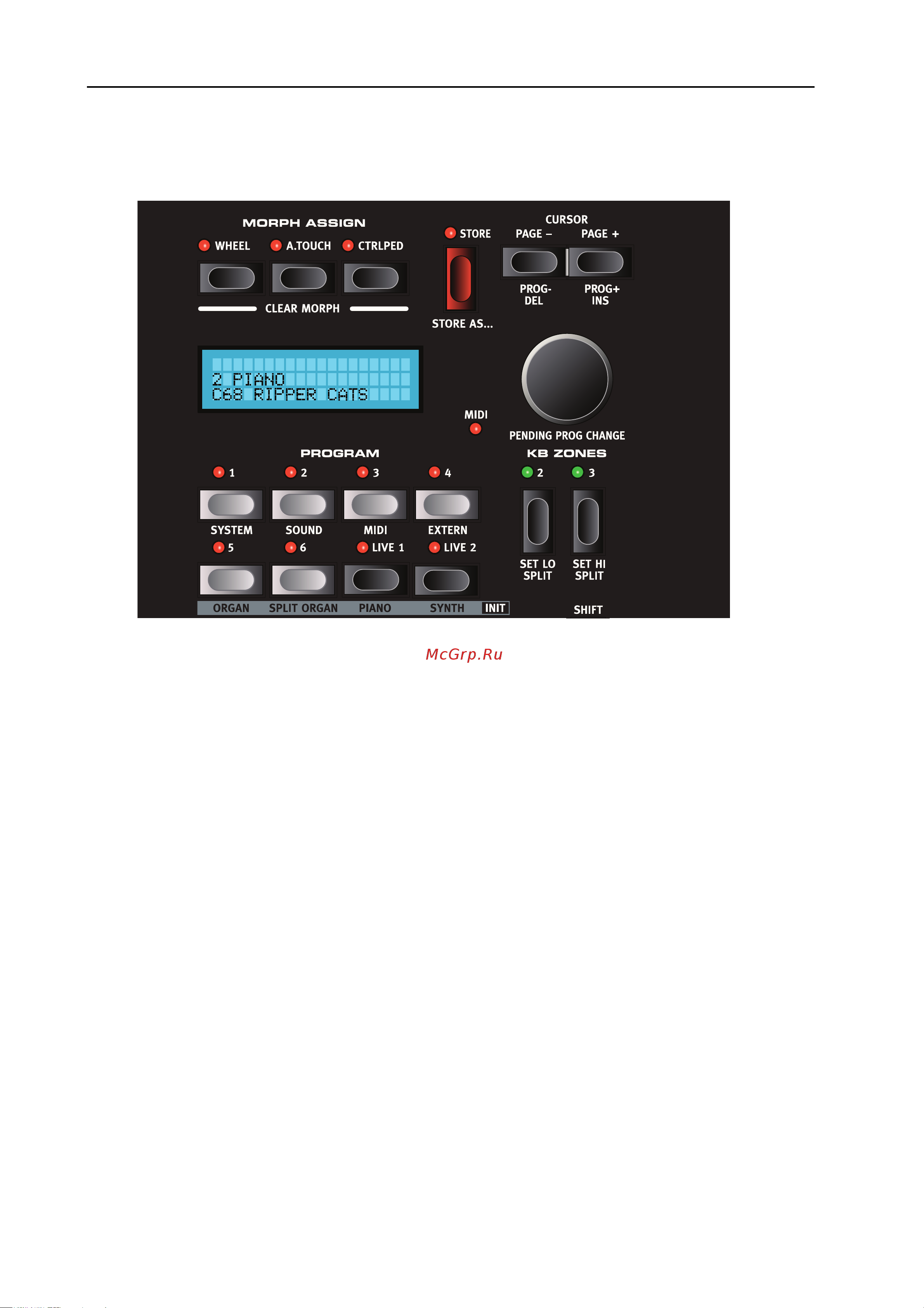

The Program section comprises central functions such as Program handling, system pages etc. Sys-
tem pages are covered in a separate chapter - see “System functions” on page 66.
LOAD A PROGRAM
You can load a program in several different ways.
• Press any of the P
ROGRAM 1-6 buttons to load the corresponding program from the current Pro-
gram Page.
• Press or hold P
AGE + or - to step through the 21 Program Pages in the Nord Stage.
• Turn the V
ALUE DIAL in either direction to scroll through all Programs. Program Page focus is
shifted as needed.
• Hold S
HIFT and press or hold the PAGE buttons to step through the Programs. Program Page focus
is shifted as needed.
• Press either of the L
IVE 1-2 buttons to activate one of the special Live Buffers (see “About the
Live 1&2 Buffers” on page 19).
