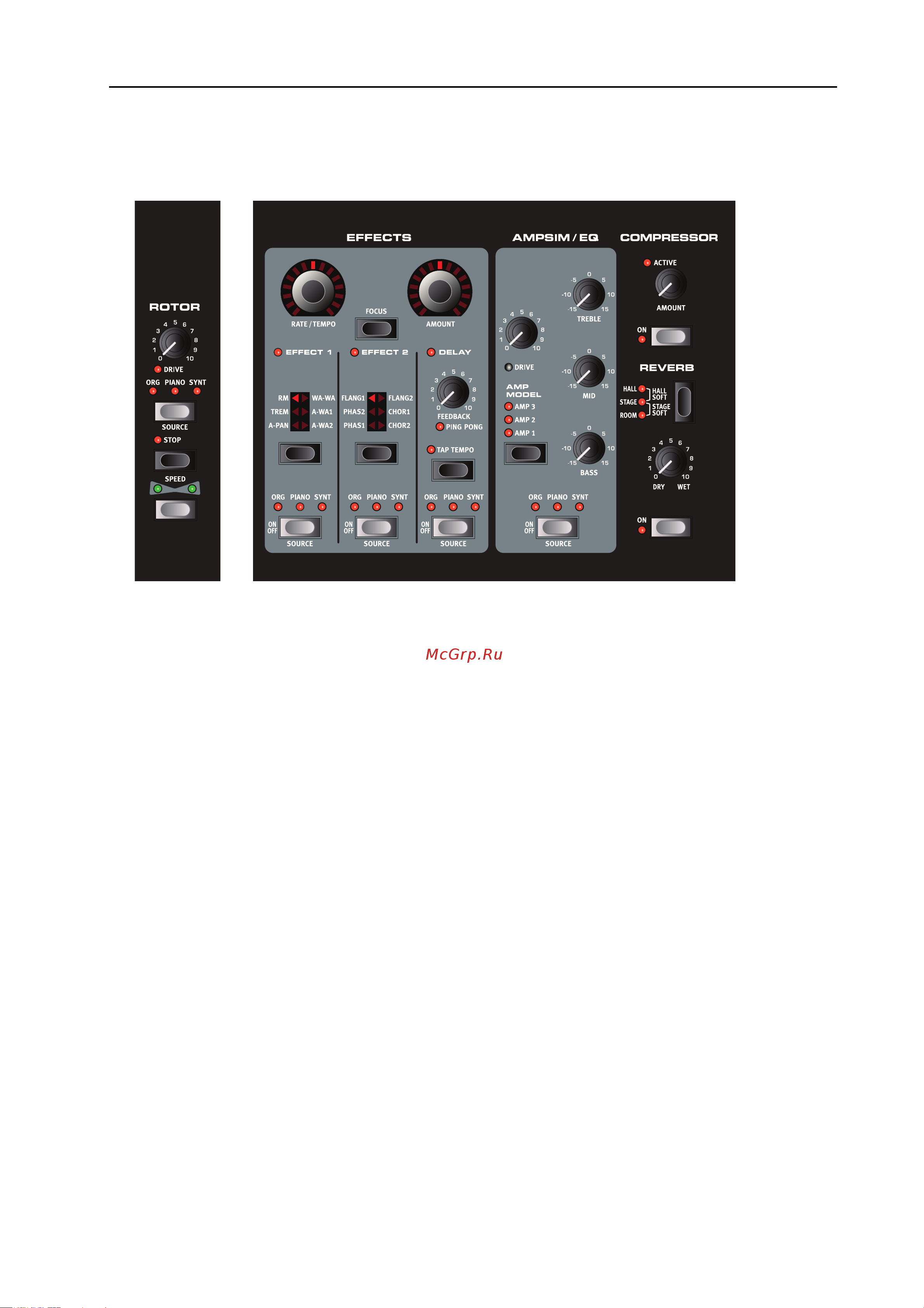

Nord Stage EX v6.x 7. The Effects: About the effects
Page 49
7. THE EFFECTS
ABOUT THE EFFECTS
The effects available in Nord Stage EX can be divided into three main categories:
• Panel Effects - these can affect one instrument (per Panel) at a time. Panel effects are the effects in
the main Effects section and in the AmpSim/EQ section. All Panel effects have separate engines
and settings for Panel A and B, thus you have two sets of Panel effects available for each Program.
See below for a description of the Panel effects.
• Global Effects - these affect all instruments routed to the main outputs CH1 & CH2. The Com-
pressor and Reverb on the far right of the front panel are global effects. See page 54.
• The Rotor Effect works slightly differently compared to Panel effects. See “The Rotor section” on
page 55.
ABOUT MONO/STEREO AND EFFECT ROUTING
Some of the effects are mono in/out, some are stereo in/out and others are mono in/stereo out. For
each individual effect the channel configuration is stated in the related text. The internal routing of
some effects, means that the instrument level has to be taken into account. Whenever this applies it
will also be explained in the corresponding effect description.
