LINE 6 StageSource L3m [13/24] Allouts

L3S caLLoutS

1. LED – Thefront-panelLEDglowswhitewhenthespeakerispowered,ashesredwhenthelimitercircuitisactive,andglowsbluewhenreceiving

communicationfromStageScapeM20d.

2. Logo – TheL3s’sLine6logobadgecanberotated90°.Gentlypulloutward,rotatetomatchthedesiredorientation,andsnapbackintoplace.

3. Wheels – These70mmwheelsalloweasytransportoftheL3s.

4. Handles – TheL3shasthreeheavy-dutyhandlesforeasytransportation.

5. Pole Mounts– Threethreadedpolemounts(oneontop,twoontherightside)accommodateLine6M20threadedspeakerpoles.

6. Rear Panel – Therearpanelcontainsallinputs,outputs,andcontrols.Seepage14formoreinformation.

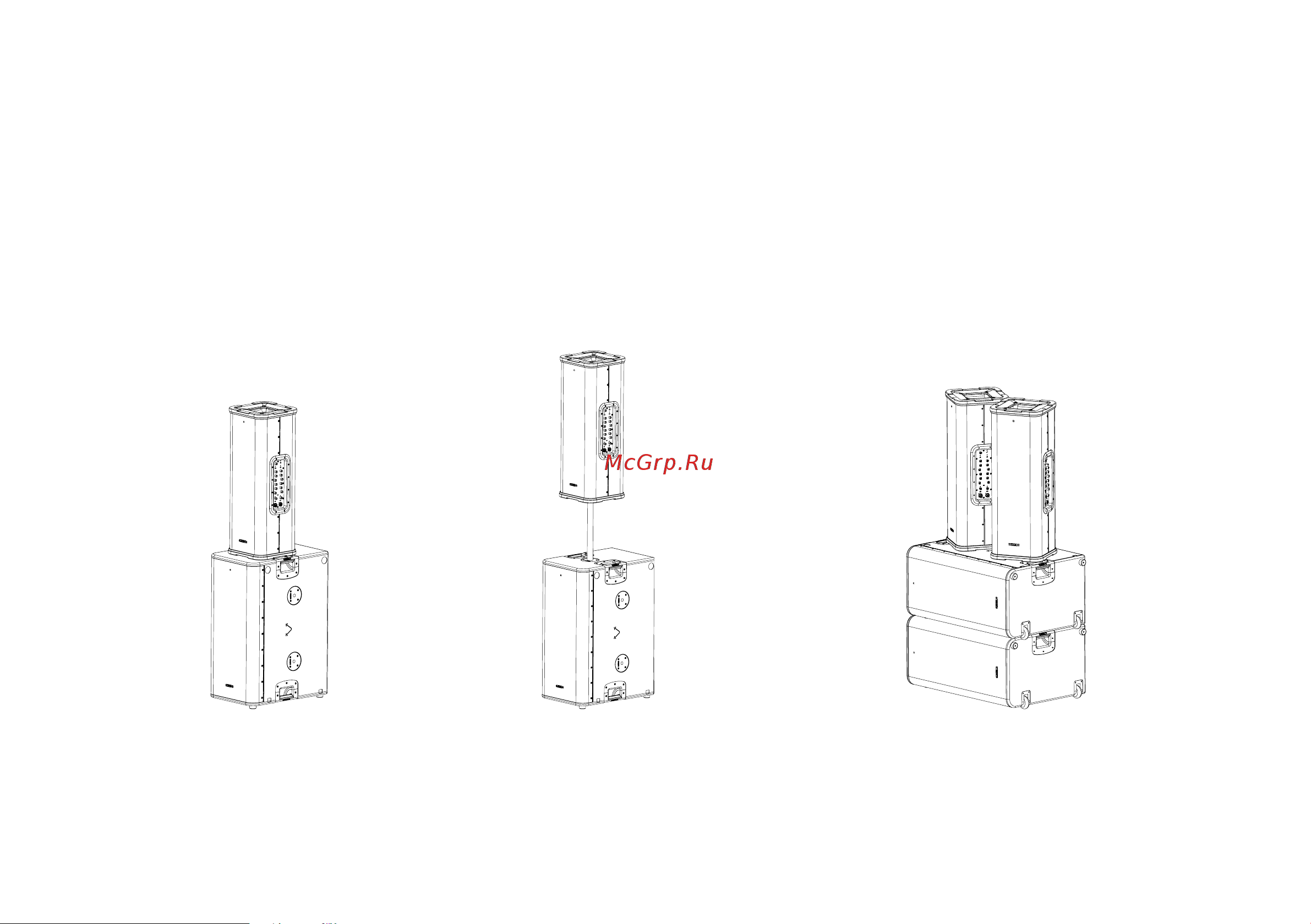

L3s sub with one L3t tower

(on ﬂoor or low stage)

Useonelongspeakerpole(not

included);neveruseanypole

longerthan24-3/4”(626mm)in

thisconguration

L3s sub with two L3t towers

Usetwoshortspeakerpoles(notincluded);

neveruseanypolelongerthan27-1/2”

(700mm)inthisconguration;anglethe

L3ttowersinthedirectionofthearrows

routedintotheL3s’ssidepanel

L3s sub with one L3t

tower (on stage)

Useoneshortspeakerpole

(not included)
