L3t / L3m caLLoutS
1. LED – Thefront-panelLEDglowswhitewhenthespeakerispowered,ashesredwhenthelimitercircuitisactive,andglowsbluewhenreceiving
communicationfromStageScapeM20d.
2. Logo – TheLine6logobadgecanberotated90°.Gentlypulloutward,rotatetomatchthedesiredorientation,andsnapbackintoplace.
3. Handle – Thisrobustcarryinghandledoublesasastand,allowingtheL3t/L3mtobeangledupwardsat30°(seeillustration,belowleft).
4. Endcaps – The heavy-duty endcaps double as carrying handles.
5. Pole Mount and Accelerometer– The pole mount accommodates standard 35 mm diameter speaker poles. If any “backline” mode is chosen
(Keyboard,AcousticGuitar,ElectricGuitar),theL3t/L3mthenchecksitsorientation(viatheaccelerometer)andlookstoseeifitisonapole(via
thepolesensor).Ifthespeakerisverticalandnotonapole,theL3t/L3mactivates“virtualtilt-back”,whichoptimizesthespeakertuningtoachieve
anupwardtilttoitsmainaxis.Thishelpstoaimthesoundupwardtowardstheperformer’searswhenthespeakerisplacedontheground.
If the speaker is on a pole, virtual tilt-back is not activated. It is assumed that the speaker is elevated and is being aimed in the desired direction.
6. Suspension Points – The L3t/L3mhas M10threaded attachment pointsfor suspendingthe speaker—Twosuspension pointson the top,two
suspension points on the bottom, and one pull-back point on the rear panel.
7. Kickstands – Twoback-panelkickstandsipout,allowingtheL3t/L3mtobeangledupwardsat60°(seeillustration,belowright).
8. Side Panel (L3t only) – Thesidepanelcontainsthemusician-centricinputsandcontrolsyou’llusemostoften.Seepage8formoreinformation.
9. Rear Panel – TherearpanelcontainstheP.A.-centricinputs,outputs,andcontrols.Seepage10formoreinformation.

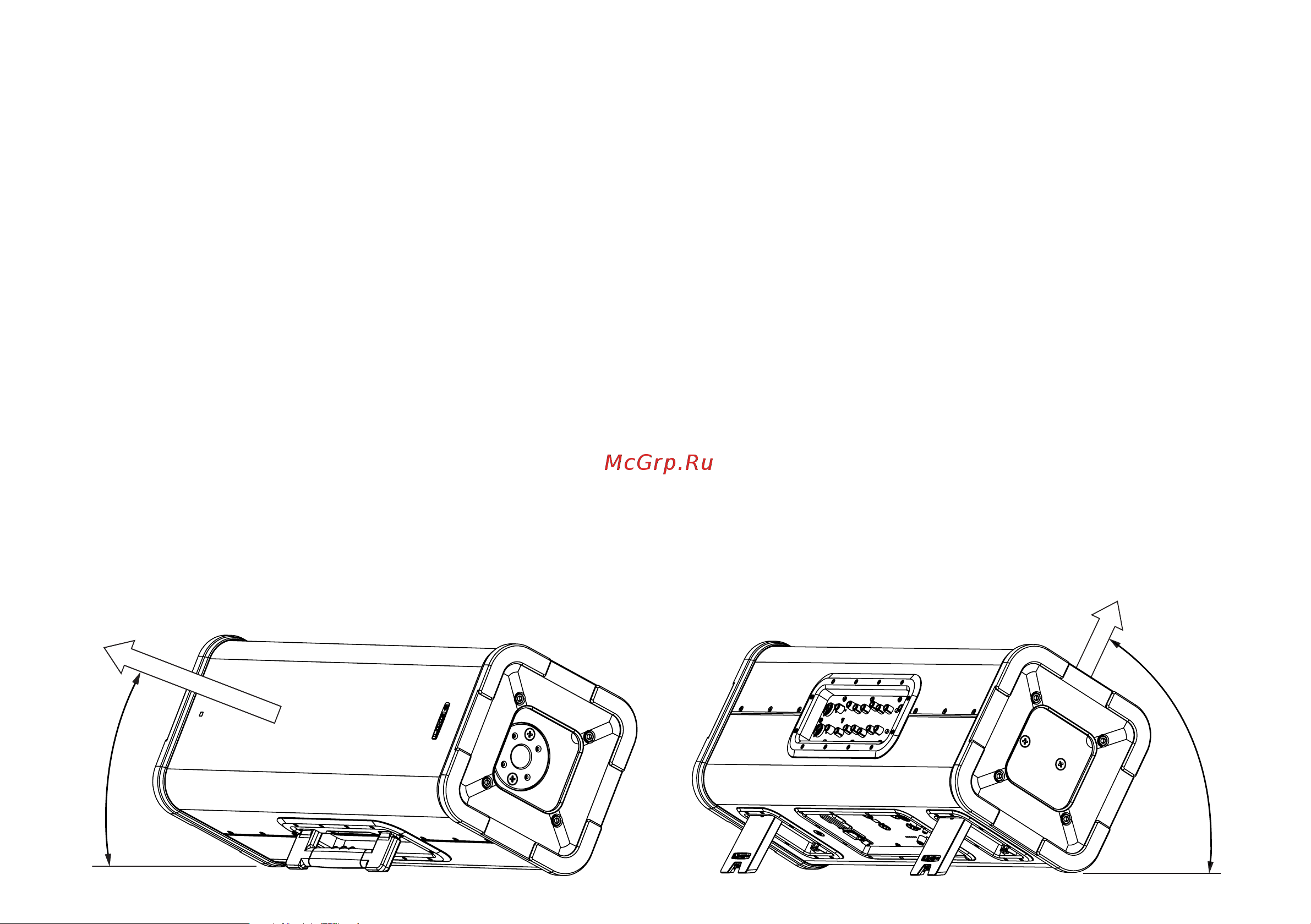

As floor monitor with handle as stand
(30° upward angle)
As floor monitor with kick stands
(60° upward angle)
30%
60%
