SuSPending the L3t / L3m
The L3t and L3m provide four threaded M10 attachment points for
suspension and one threaded M10 attachment point for pull-back and
aiming the speaker. These are designed to allow for suspending the
loudspeaker only by a qualied professional familiar with safe rigging
practices. Improper installation may result in damage to the speaker or
support structure, or injury or death.
WARNING! If you are unfamiliar with suspending loudspeakers, con-
sultanauthorized,qualiedprofessionalpriortoinstallation.
WARNING! Before rigging or suspending any loudspeaker product, in-
spect all rigging hardware, cabinets, attachment points, transducers, and
associatedperipherals.Anyabsent,warped,ornon-loadratedequipment
could seriously compromise the strength of the installation and should be
immediately corrected.
WARNING! Alwaysfollowallmunicipalbuildingcodes,aswellasany
local, state, and federal safety guidelines regarding the installation and
operation of loudspeakers and associated peripherals.
Always use two attachment points oneitherthe top or bottom of the
L3t/L3m.Therear panelpull-backattachment pointisonly for aiming
thespeakerdownwards;itisnottobeusedasaload-bearingsuspension
point.Furthermore,suspensionpointsareforhangingthespeakeronly;
do not suspend additional speakers or other items from suspension points.
For permanent installations, use only the Line 6 eyebolt kit (part no.
98-037-0005).

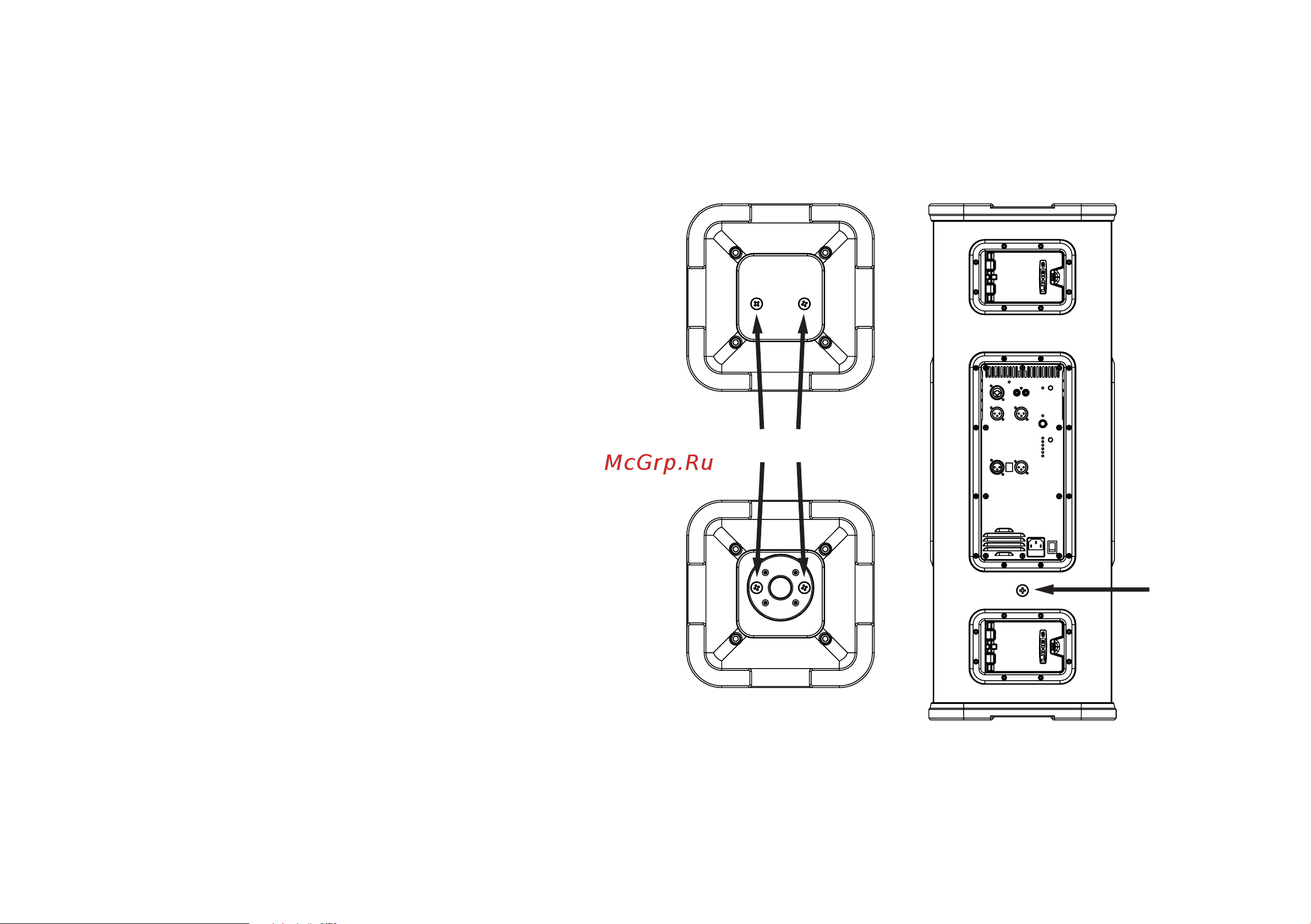

Suspension Points
Pull-back
Attachment
BOTTOM
TOP REAR PANEL
