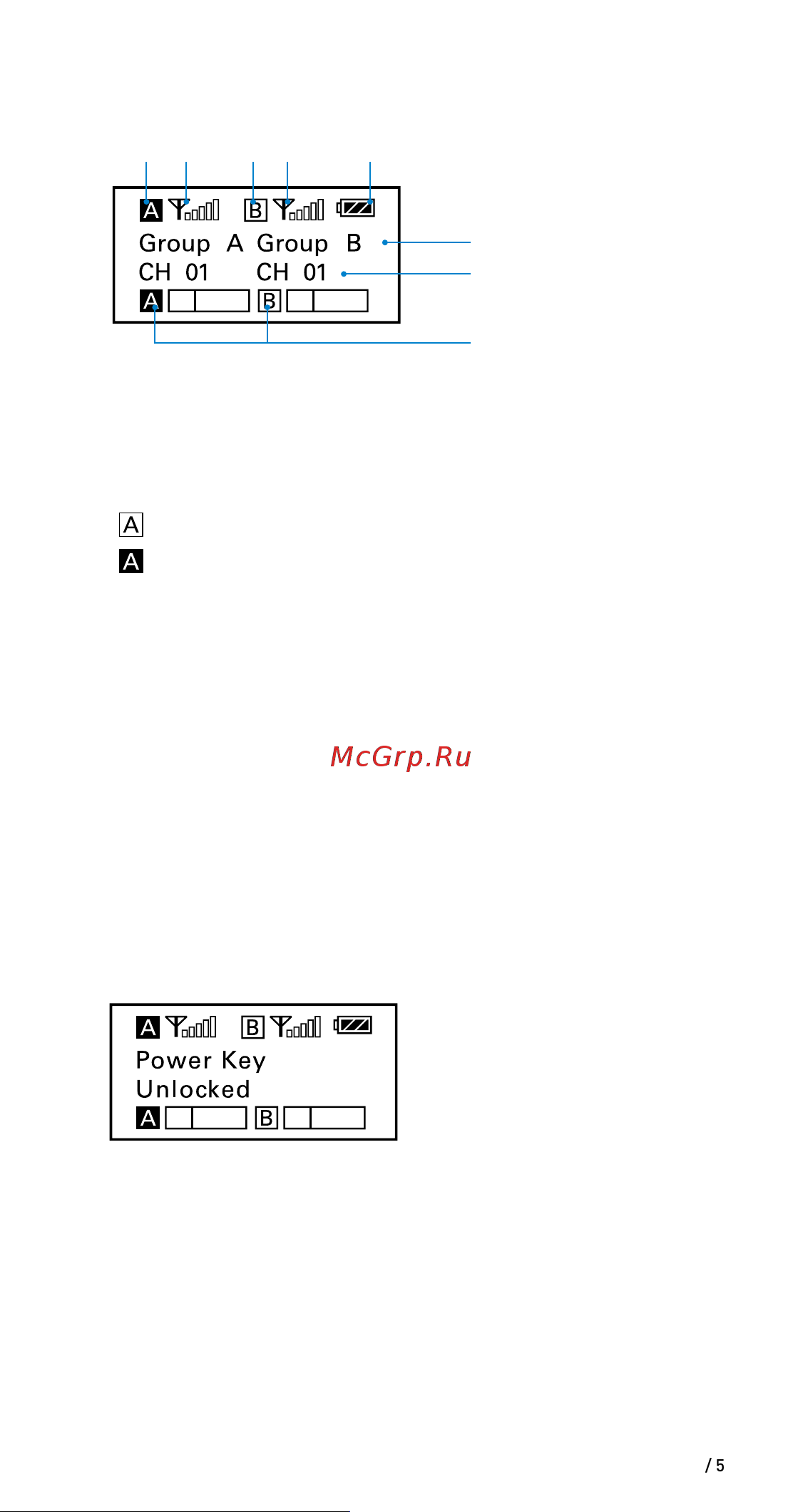

LCD Display Operation Guide
Home screen. If no operation is performed for 20 seconds on
the other screens, the display will automatically return to the
home screen.
①
Group icon
Indicates the power of group A is turned off.
Indicates the power of group A is turned on.
②
RF level indicator
Indicates the current reception level.
③
Battery level indicator
Displays the battery level. Please replace both batteries
immediately when the indicator starts flashing.
④
Name of the channel group
⑤
Current channel
Displays the current channel number.
⑥
Audio input level meter
Displays the audio input level.
2
Power key. Long press the SET button to unlocked or locked
the power key. Lock the power key to prevent the receiver
being turned off unwittingly while using.
• Unlocked: Long press the power key to turn the receiver on
or off (System default).
• Locked: The receiver will not be turned off even after
pressing the power key.
