18. Configuring the HDSPe MADI
18.1 Settings Dialog
Configuring the HDSPe MADI is done via its own settings dialog. The panel 'Settings' can be
opened by clicking on the hammer icon in the dock. The mixer of the HDSPe MADI, TotalMix,
can be opened by clicking on the mixer icon in the dock.
The Hammerfall DSP’s hardware offers a number of helpful, well thought-of practical functions
and options which affect how the card operates - it can be configured to suit many different
requirements. The following is available in the 'Settings' dialog:
• Input selection
• Configuration of digital I/Os
• Synchronization behaviour
• State of input and output
• Current sample rate

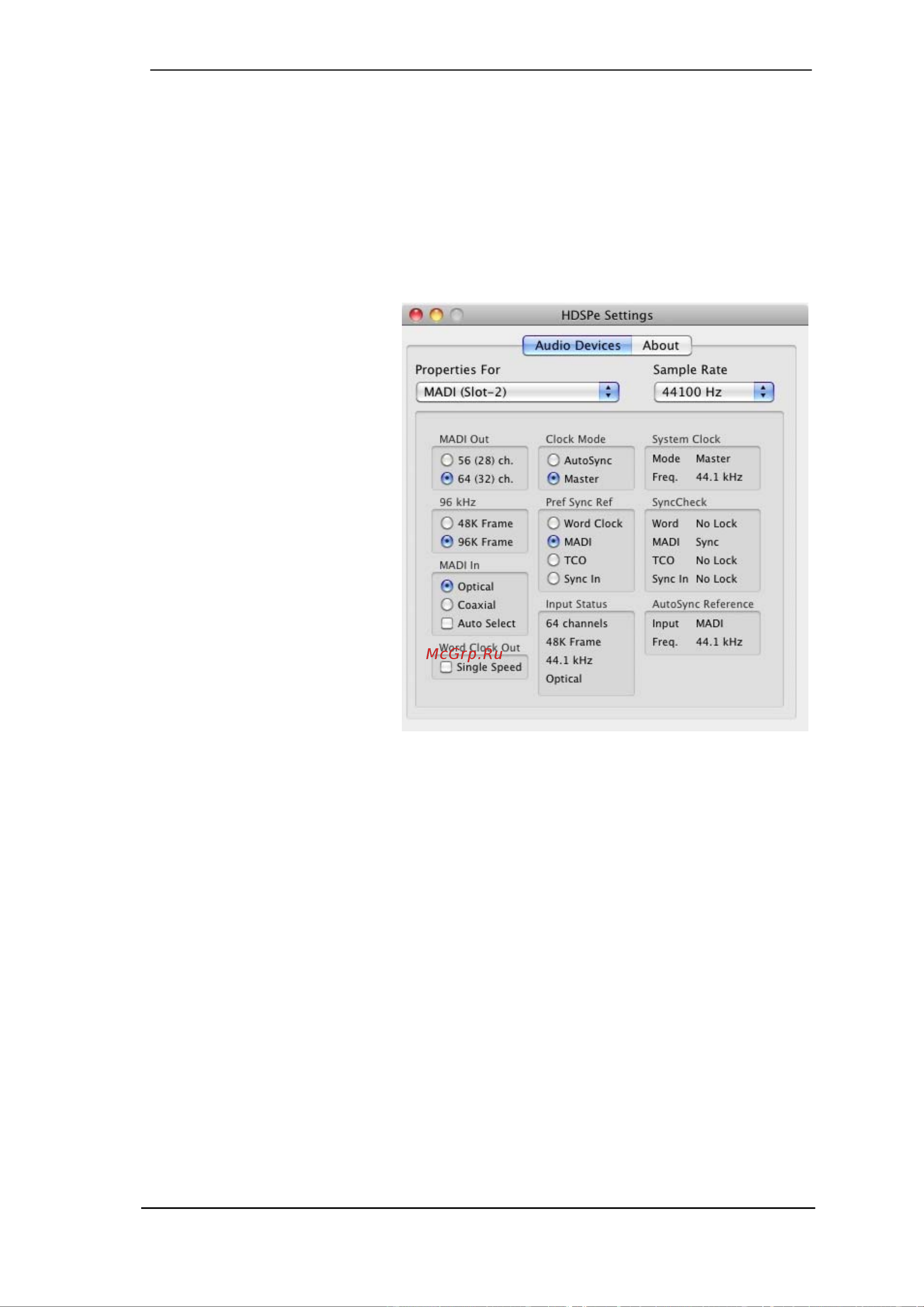

Any changes performed in the
Settings dialog are applied
immediately - confirmation (e.g.
by exiting the dialog) is not
required.
However, settings should not be
changed during playback or
record if it can be avoided, as this
can cause unwanted noises.
The About tab shows the current
firmware and driver version.
Use the drop down menu
Properties For to select the card
to be configured.
Sample Rate
Used to set the current sample rate. This is the same setting as in the Audio MIDI Setup, just
added here for your convenience.
MADI Out
Defines the format of the MADI output signal. MADI can be a 56 or 64 channel signal.
96 kHz
Sample rates higher than 48 kHz can be transmitted using the normal 48K Frame, or using a
native 96K Frame at the card's output.
MADI In
Defines the input for the MADI signal. 'Optical' relates to the optical input, 'Coaxial' to the BNC
socket. Auto Select works as automatic input selection, in case only optical or coaxial is present
as input signal. AutoSelect also enables redundancy operation. If the current input signal fails,
the other input will be used immediately, provided a valid signal is found there.
Word Clock Out
The word clock output signal usually equals the current sample rate. Selecting Single Speed
causes the output signal to always stay within the range of 32 kHz to 48 kHz. So at 96 kHz and
192 kHz sample rate, the output word clock is 48 kHz.
