30.6 SteadyClock

The SteadyClock technology of the HDSPe MADI guarantees an excellent performance in all

clock modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal, and

provides it as reference clock at the word clock output.

Usually a clock section consists of an analog PLL for external synchronization and several

quartz oscillators for internal synchronisation. SteadyClock requires only one quartz, using a

frequency not equalling digital audio. Latest circuit designs like hi-speed digital synthesizer,

digital PLL, 100 MHz sample rate and analog filtering allow RME to realize a completely newly

developed clock technology, right within the FPGA at lowest costs. The clock's performance

exceeds even professional expectations. Despite its remarkable features, SteadyClock reacts

quite fast compared to other techniques. It locks in fractions of a second to the input signal,

follows even extreme varipitch changes with phase accuracy, and locks directly within a range

of 25 kHz up to 200 kHz.

SteadyClock has originally been de-

veloped to gain a stable and clean

clock from the heavily jittery MADI data

signal. The embedded MADI clock

suffers from about 80 ns jitter, caused

by the time resolution of 125 MHz

within the format. Common jitter values

for other devices are 5 ns, while a very

good clock will have less than 2 ns.

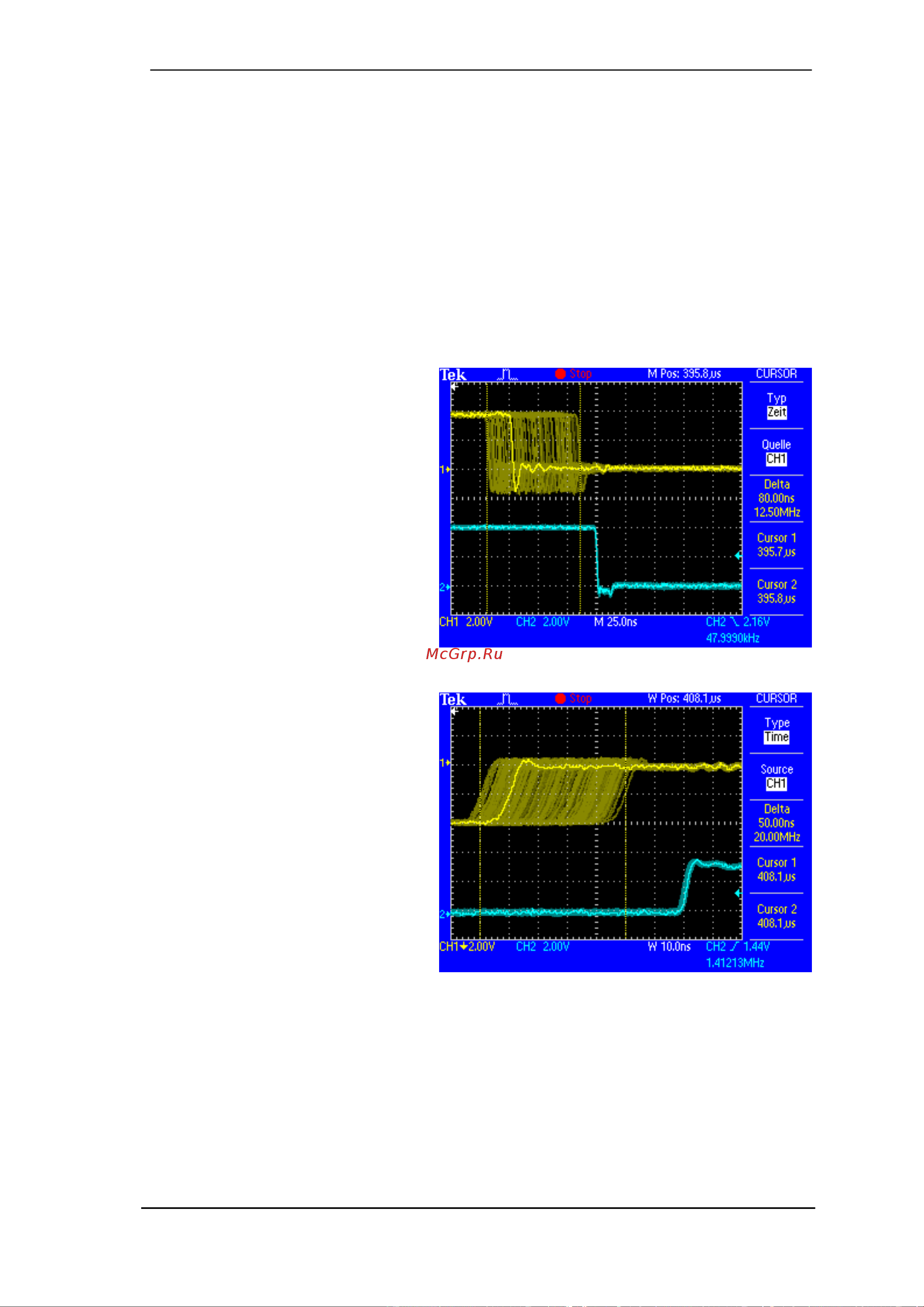

The picture to the right shows the

MADI input signal with 80 ns of jitter

(top graph, yellow). Thanks to Steady-

Clock this signal turns into a clock with

less than 2 ns jitter (lower graph, blue).

The other input sources of the HDSPe

MADI, word clock, Video and LTC,

gain a lot from SteadyClock as well. In

fact, extracting a low jitter clock from

LTC is not possible without a Steady-

Clock similar technique at all!

The screenshot to the right shows an

extremely jittery word clock signal of

about 50 ns jitter (top graph, yellow).

Again SteadyClock provides an ex-

treme clean-up. The filtered clock

shows less than 2 ns jitter (lower

graph, blue).

The cleaned and jitter-freed signal can

be used as reference clock for any

application, without any problem.
