24.14 Level Meter

The HDSPe AIO calculates all the display values Peak, Over and RMS in hardware, in order to

be capable of using them independent of the software in use, and to significantly reduce the

CPU load.

Tip: This feature, the Hardware Level Meter, is used by DIGICheck (Windows only, see chap-

ter 16) to display Peak/RMS level meters of all channels, nearly without any CPU load.

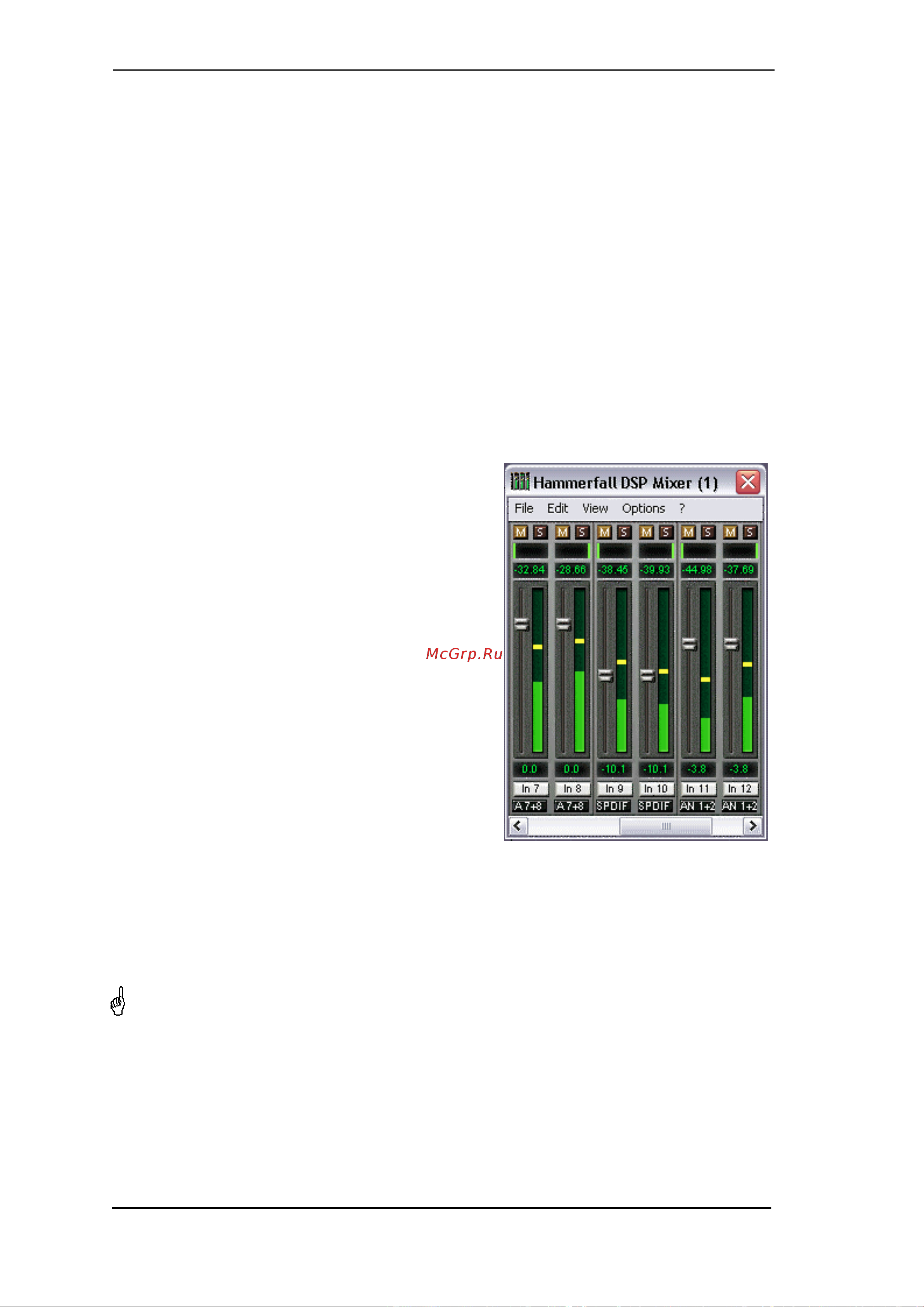

The level meters integrated in TotalMix - considering their size - cannot be compared with

DIGICheck. Nevertheless they already include many useful functions.

Peak and RMS is displayed for every channel. 'Level Meter Setup' (menu Options or F2) and

direct keyboard entry (hotkeys) make various options available:

• Display range 40 or 60 dB (hotkey 4 or 6)

• Release time of the Peak display (Fast/Medium/Slow)

• Numerical display selectable either Peak or RMS (Hotkey E or R)

• Number of consecutive samples for Overload display (1 to 15)

• RMS display absolute or relative to 0 dBFS (Hotkey 3 or 0)

The latter is a point often overlooked, but nonetheless

important. A RMS measurement shows 3 dB less for

sine signals. While this is mathematically correct, it is

not very reasonable for a level meter. Therefore the

RMS readout is usually corrected by 3 dB, so that a full

scale sine signal shows 0 dBFS on both Peak and

RMS meters. This setting also yields directly readable

signal-to-noise values. Otherwise the value shown with

noise is 3 dB better than it actually is (because the

reference is not 0 dB, but -3 dB). For example in

WaveLab.

The value displayed in the text field is independent of

the setting 40/60 dB, it represents the full 24 bit range

of the RMS measurement, thus making possible a

SNR measurement 'RMS unweighted', which you

would otherwise need extremely expensive measure-

ment devices for. An example: An RME ADI-8 DS con-

nected to the HDSPe AIO's ADAT port will show

around -113 dBFS on all eight channel's input level

meters.

This level display will constantly bring the reduced dynamic range of your equipment, maybe of

the whole studio, in front of your eyes. Nice to have everything 24 bit - but still noise and hum

everywhere in the range around -90 dB or worse... sorry, but this is the disappointing reality.

The up-side about it is that TotalMix allows for constantly monitoring the signal quality without

effort. Thus it can be a valuable tool for sound optimization and error removal in the studio.

Measuring SNR (Signal to Noise) requires to press R (for RMS) and 0 (for referring to 0

dBFS, a full scale signal). The text display will then show the same value as an expensive

measurement system, when measuring ‘RMS unweighted’.
