30.6 Noise level in DS / QS Mode

The outstanding signal to noise ratio of the HDSPe AIO's AD-converters can be verified even

without expensive test equipment, by using record level meters of various software. But when

activating the DS and QS mode, the displayed noise level will rise from -109 dB to -104 dB at 96

kHz, and –60 dB at 192 kHz. This is not a failure. The software measures the noise of the whole

frequency range, at 96 kHz from 0 Hz to 48 kHz (RMS unweighted), at 192 kHz from 0 Hz to 96

kHz.

When limiting the measurement's frequency range to 22 kHz (audio bandpass, weighted) the

value would be -109 dB again. This can be verified even with RME's Windows tool DIGICheck.

Although a dBA weighted value does not include such a strong bandwidth limitation as audio

bandpass does, the displayed value of –108 dB is nearly identical to the one at 48 kHz.

The reason for this behaviour is the noise shaping technology of the analog to digital convert-

ers. They move all noise and distortion to the in-audible higher frequency range, above 24 kHz.

That’s how they achieve their outstanding performance and sonic clarity. Therefore the noise is

slightly increased in the ultrasound area. High-frequent noise has a high energy. Add the dou-

bled (quadrupled) bandwidth, and a wideband measurement will show a siginificant drop in

SNR, while the human ear will notice absolutely no change in the audible noise floor.

30.7 SteadyClock

The SteadyClock technology of the HDSPe AIO guarantees an excellent performance in all

clock modes. Thanks to a highly efficient jitter suppression, the AD- and DA-conversion always

operates on highest sonic level, being completely independent from the quality of the incoming

clock signal.

SteadyClock has been originally de-

veloped to gain a stable and clean

clock from the heavily jittery MADI data

signal (the embedded MADI clock

suffers from about 80 ns jitter). Using

the input signals SPDIF, ADAT or word

clock, you'll most probably never ex-

perience such high jitter values. But

SteadyClock is not only ready for

them, it would handle them just on the

fly.

Common interface jitter values in real

world applications are below 10 ns, a

very good value is less than 2 ns.

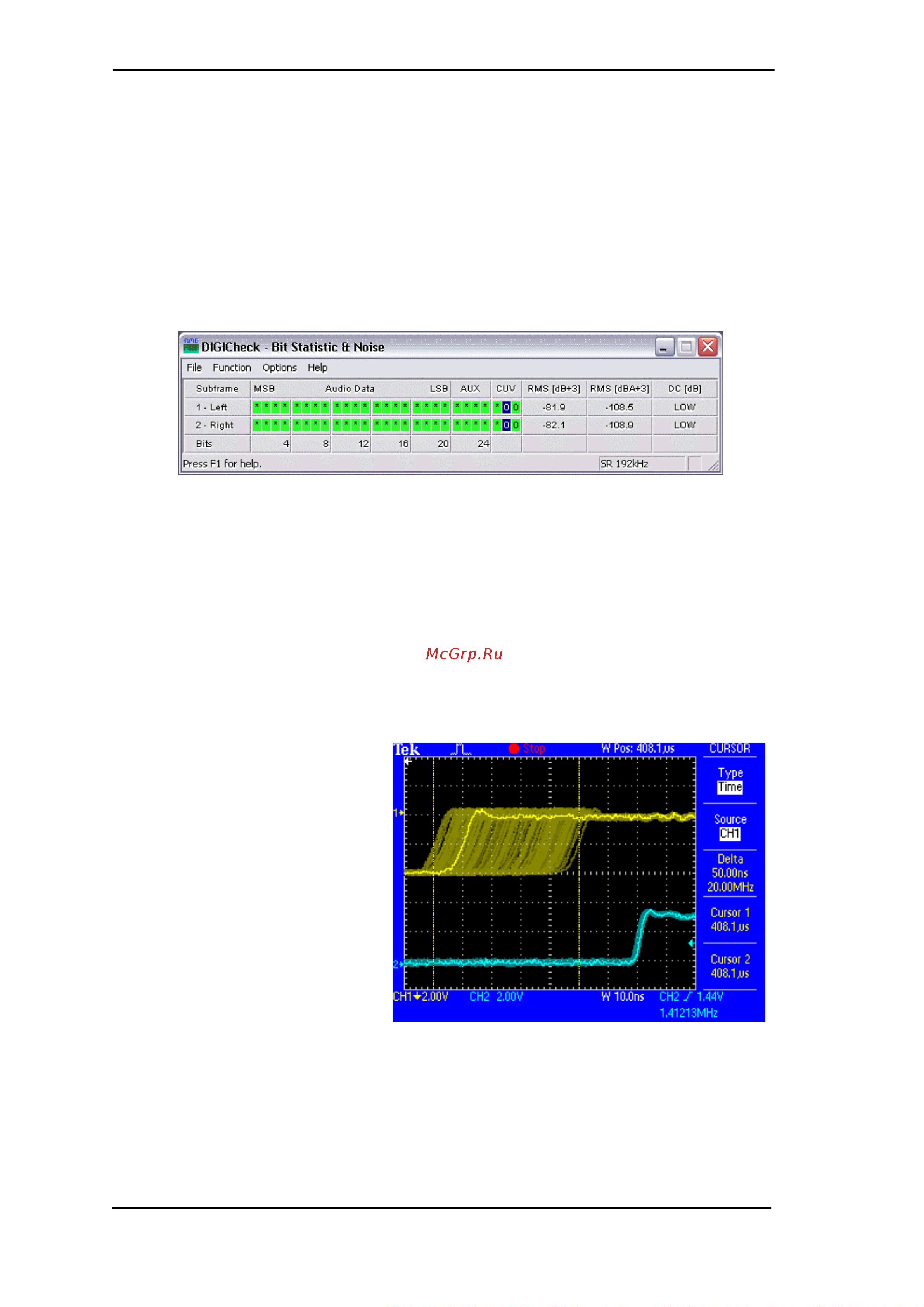

The screenshot shows an extremely jittery SPDIF signal of about 50 ns jitter (top graph, yellow).

SteadyClock turns this signal into a clock with less than 2 ns jitter (lower graph, blue). The sig-

nal processed by SteadyClock is of course not only used internally, but also used to clock the

digital outputs. Therefore the refreshed and jitter-cleaned signal can be used as reference clock

without hesitation.
