HD MADI Guide8
HD MADI Back Panel
HD MADI has the following back panel features:
MADI Optical In and Out
HD MADI provides 2 sets of MADI Optical In
and Out ports. Using high-quality optical cable,
connect these ports to the corresponding MADI
optical inputs and outputs of MADI-compatible
audio equipment, such as routers, digital mixing
consoles, and converters.
MADI Coaxial In and Out
HD MADI provides 2 sets of MADI Coaxial In
and Out ports. Using high-quality coaxial cable,
connect these ports to the corresponding MADI
coaxial inputs and outputs of MADI-compatible
audio equipment, such as routers, digital mixing
consoles, and converters.
Number of Channels
For Pro Tools sessions at 44.1 and 48 kHz, up to
64 channels of MADI Optical I/O are available
through each set of inputs (Optical or Coaxial).
At higher sample rates, both sets can be used to
achieve up to 64 channels of MADI Optical or
Coaxial I/O as shown in the table below.
Real-Time Sample Rate Conversion
HD MADI inputs can stream in at any sample
rate and be converted to the current Pro Tools
session sample rate using hardware-based real-
time sample-rate conversion (SRC). SRC is also
supported on output.

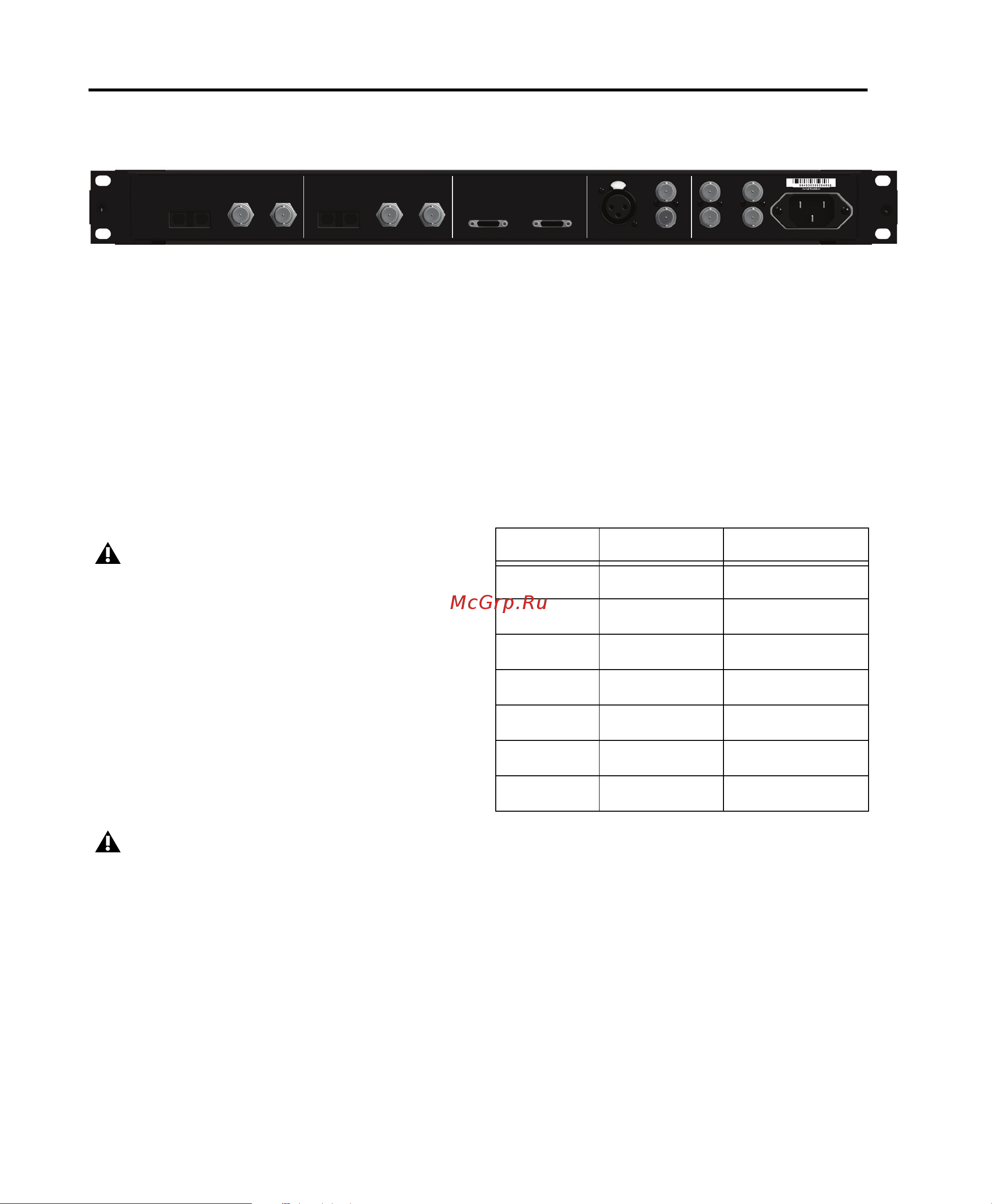

HD MADI rear panel
MADI OPTICAL 1
INOUT
MADI COAXIAL 1
OUT IN
MADI OPTICAL 2
INOUT
MADI COAXIAL 2
OUT IN
PORT 1 PORT 2
SRC AES/EBU
AC ~ 100-240V;50-60HZ; .5A
SRC WORD CLOCK WORD CLOCK LOOP SYNC
IN
OUT
IN 1
IN 2
The maximum length for MADI optical
cables is 2 kilometers (SC FDDI fiber-optic
cable).
HD MADI supports 75 Ohm coaxial (BNC)
cable (such as Belden 1855 and 1694 type).
The maximum length for copper MADI co-
axial cables is 100 meters.
Channels of HD MADI by port (optical or coaxial) and
sample rate
Port Channels Sample rate
1 1–64 44.1/48 kHz
1 1–32 44.1/48 kHz
2 33–64 44.1/48 kHz
1 1–32 88.2/96 kHz
2 33–64 88.2/96 kHz
1 1–16 176.4/192 kHz
2 17–32 176.4/192 kHz
