HD MADI Guide12
Connecting Loop Sync
If you are using two (or more) Pro Tools audio
interfaces or a SYNC peripheral, Loop Sync must
be connected to maintain proper clock synchro-
nization among the devices. For an example of
connecting multiple Pro Tools|HD audio inter-
faces, see Figure 2 below.
To make Loop Sync connections:
1 Connect the Loop Sync Out of each interface
to the Loop Sync In of the next interface with
the BNC cables included in your audio interface.
2 Connect the Loop Sync Out of the last inter-
face to the Loop Sync In of the primary interface
or SYNC peripheral.
Pro Tools|HD audio interfaces need room at
their sides to maintain proper air flow for
cooling. Do not block the sides of the unit or
disconnect the internal fan. If the units are
rack-mounted in a case, remove the case
lids or doors before operating the system.
Failure to do so can result in the units over-
heating very quickly, which can perma-
nently damage sensitive components.

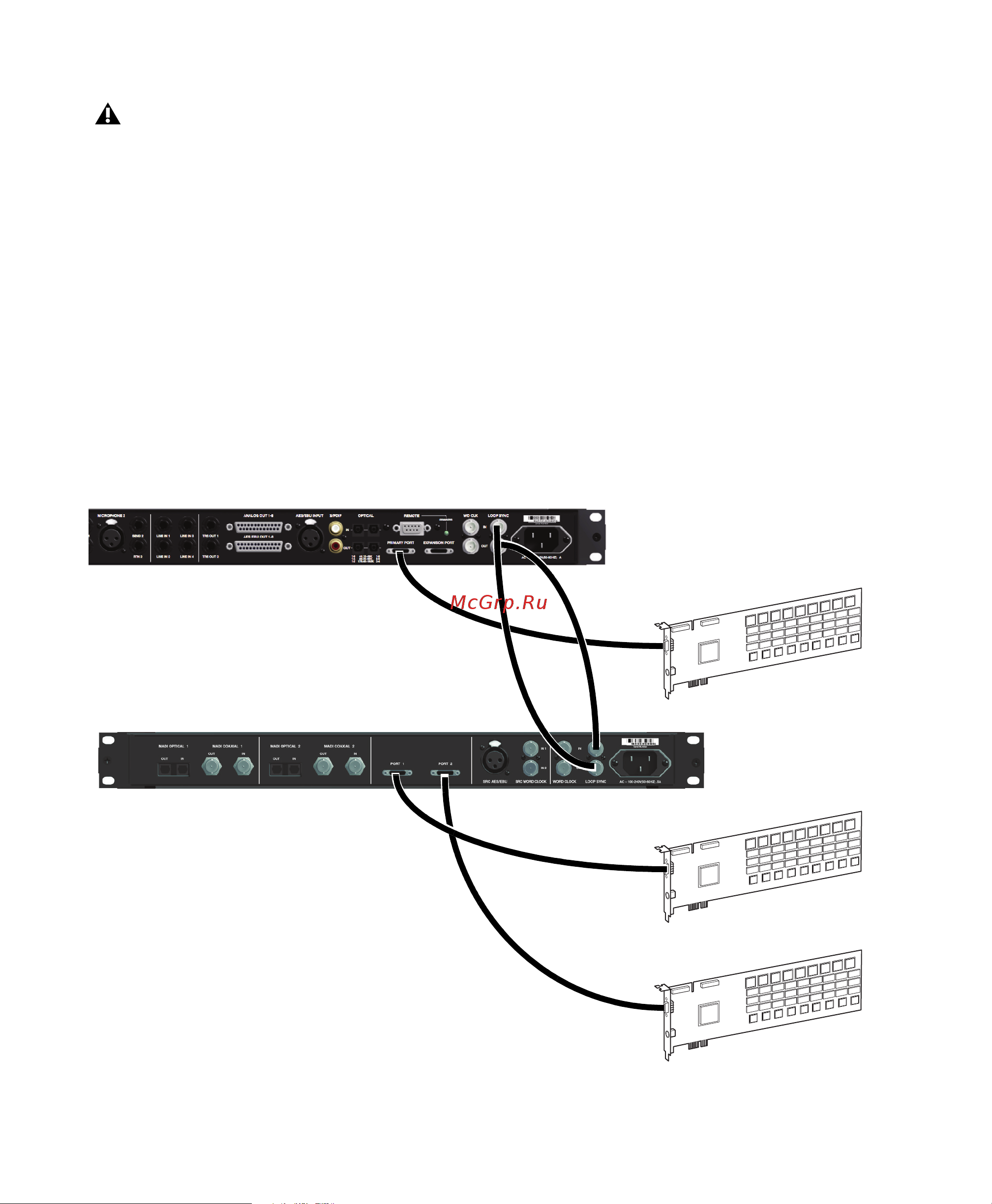

Figure 2. DigiLink and Loop Sync connections between HD OMNI (top), HD MADI (below), and an HD3 system (right)
12-foot DigiLink Mini
Pro Tools|HD Accel card
Pro Tools|HD Core card
to DigiLink cable
Pro Tools|HD Accel card
Loop Sync cables
12-foot DigiLink Mini
to DigiLink cables
HD OMNI
HD MADI
