AVID HD MADI [24/30] Output

HD MADI Guide20

Input

The Input page of the I/O Setup lets you config-

ure input signal path names, formats, and

source channel. Multichannel input paths (ste-

reo or greater) can have any number of sub-

paths. Input names and channel formats are

saved with the system.

Output

The Output page of the I/O Setup lets you con-

figure output signal path names and formats.

Output names and channel formats are saved

with the system.

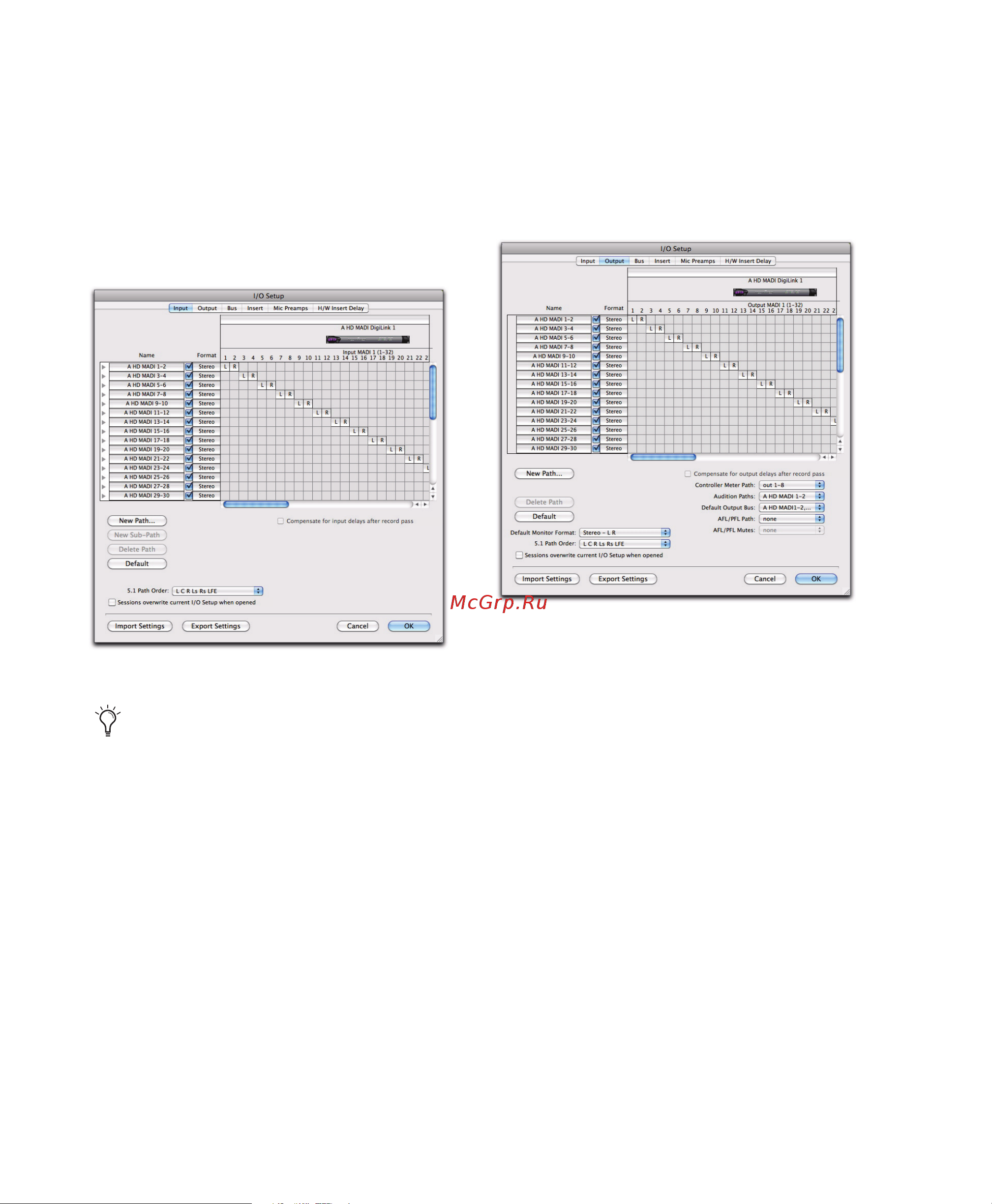

I/O Setup, Input page

Unlike other HD audio interfaces (such as

HD I/O), HD MADI physical Input and

Output channel mappings are “hard-coded”

(“hard-wired”) according to the selected set-

tings for MADI Routing (Normal or Split),

Varispeed (number of available channels),

and Sample Rate (number of available

channels).

I/O Setup, Output page
