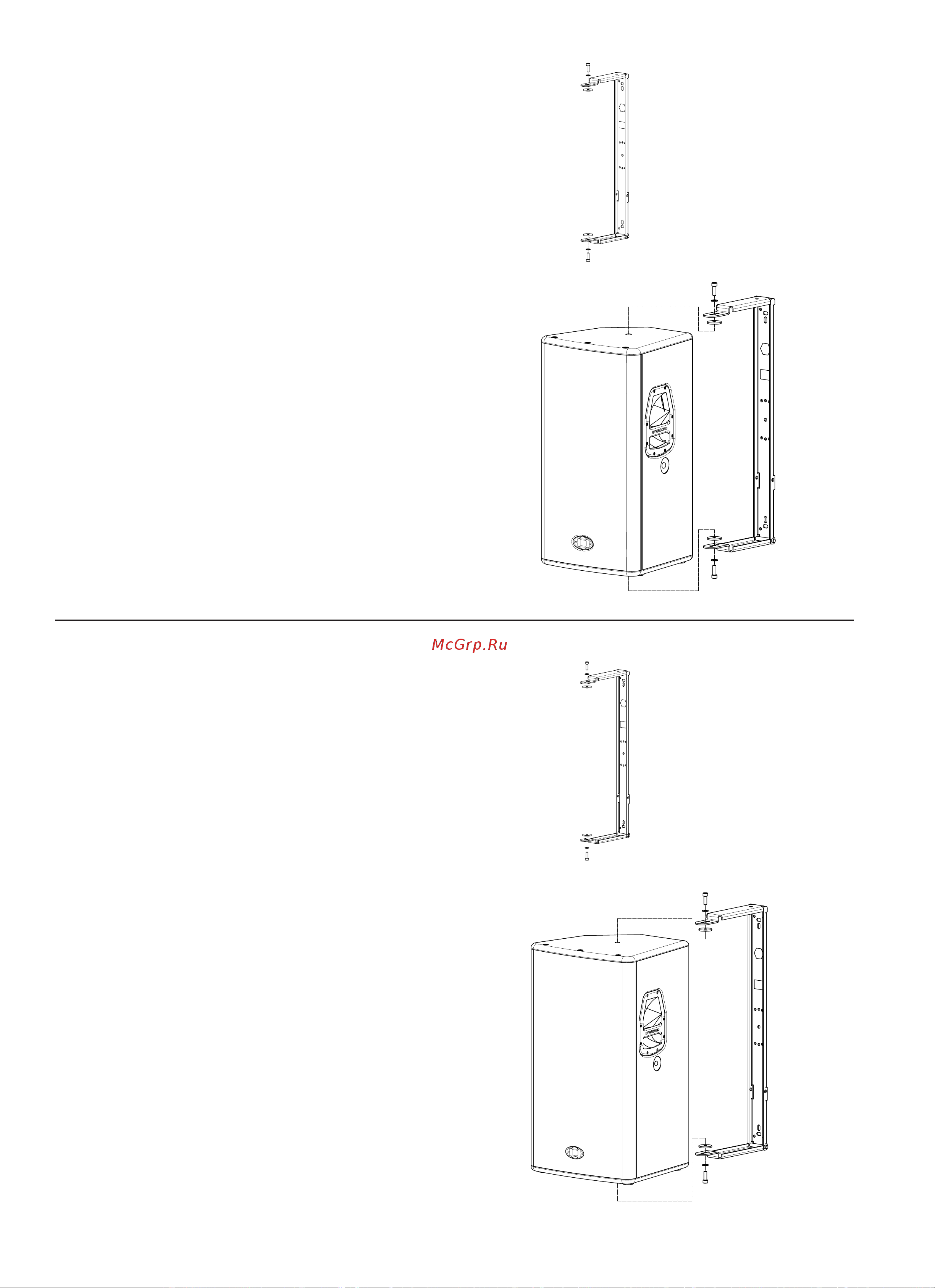

MB 122 UMH

Wall mounting bracket for VL 122

Together with the TMA inclination angles between 5°

and 45° can be adjusted in 5° steps. An adjustment to

the listeners direction with turn-in to the wall is realized

additionally with the RMA.

Assembly instruction:

The relevant assembly instructions at ceilings, walls or

booms are to be considered absolutely.

1. Install MB 122 UMH at the wall or ceiling with

suitable mounting material

2. Remove the plastic covers of the necessary M10

threaded inserts at the enclosure.

3. Unscrew the shaft screws from the threaded inserts.

4. Insert enclosed rubber washer between bracket

and enclosure. Bolt mounting bracket together with

screw M10 and disk at the enclosure. Secure

screws with thread locking compound.

Tighten screws.

MB 122 UMH

D113114

MB 152 UMH

Wall mounting bracket for VL 152
