Power Supply: The ADJ Stinger Gobo contains a automatic voltage

switch, which will auto sense the voltage when it is plugged into the

power source. With this switch there is no need to worry about the cor-

rect power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used by most lighting and controller manufactures as a form of

communication between intelligent fixtures and controllers. A DMX

controller sends DMX data instructions from the controller to the fix-

pliant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. When a fixture is assigned a DMX address

of 1, the DMX controller knows to send DATA assigned to address 1

to that unit, no matter where it is located in the DMX chain.

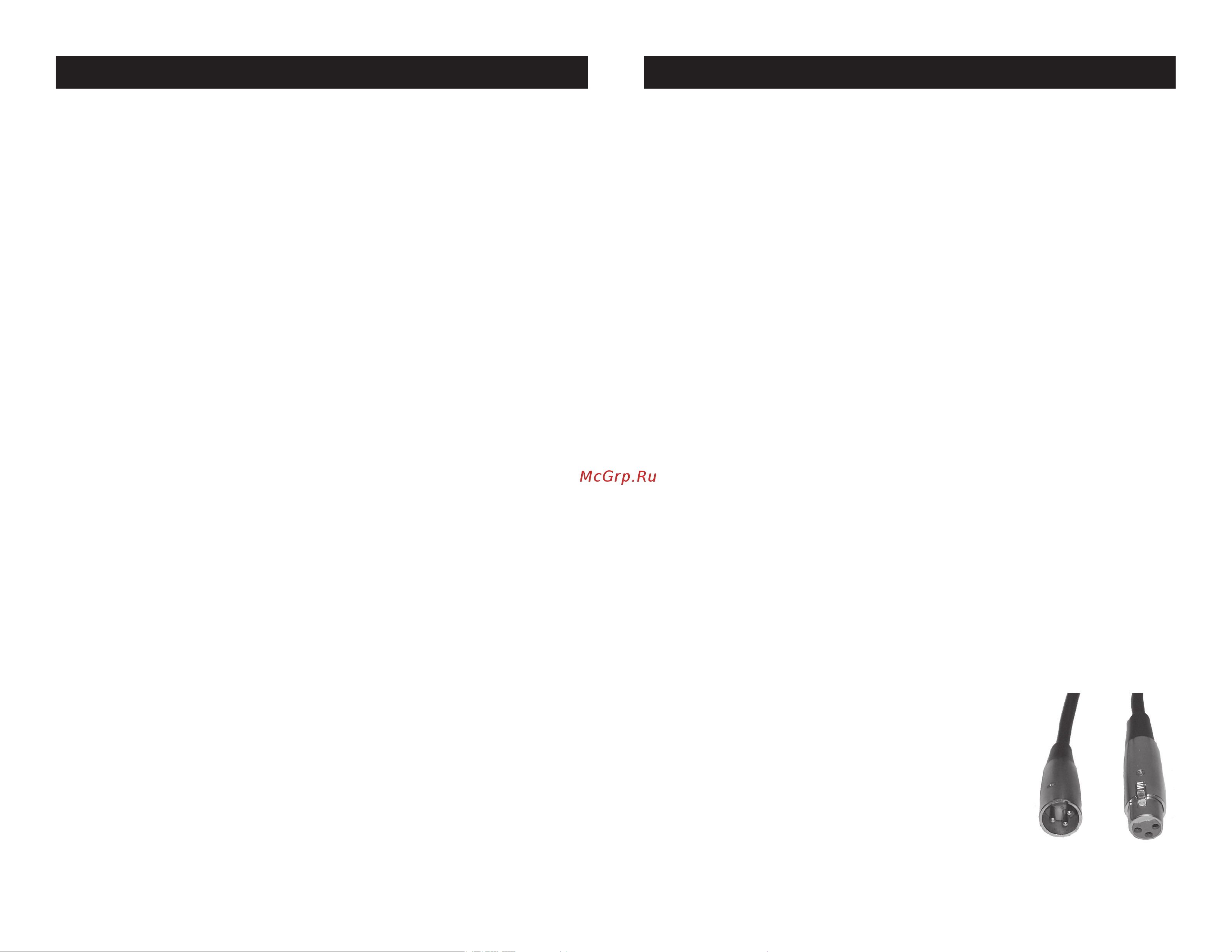

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave

Operation): The Stinger Gobo can be controlled via DMX-512 proto-

sure to use standard 110-120 Ohm shielded cable

(This cable may be purchased at almost all pro-

fessional sound and lighting stores). Your cables

should be made with a male and female XLR con-

nector on either end of the cable. Also remember

that DMX cable must be daisy chained and cannot

be split.

Stinger Gobo DMX Set Up

Figure 1

After setting up, and before public use, test laser to ensure proper

function. Do not use if any defect is detected. Do not use if laser

emits only one or two laser beams rather than dozens/hundreds, as

this could indicate damage to the diraction grating optic, and could

allow emission of higher laser levels above Class 3R.

Never point a laser at aircraft, this is a federal oense.

Never point un-terminated laser beams into the sky.

Do not expose the output optic (aperture) to cleaning chemicals.

Do not use laser if the laser appears to be emitting only one or two

beams.

Do not use the laser if the housing is damaged, the housing is open,

or if the optics appear damaged in any way.

Never open the laser housing. The high laser power levels inside of

the protective housing can start res, burn skin and will cause instant

eye injury.

ments at the location/country of use.

Always use proper lighting safety cables when hanging lights and

eects overhead.

Stinger Gobo Laser Warnings and Safety
