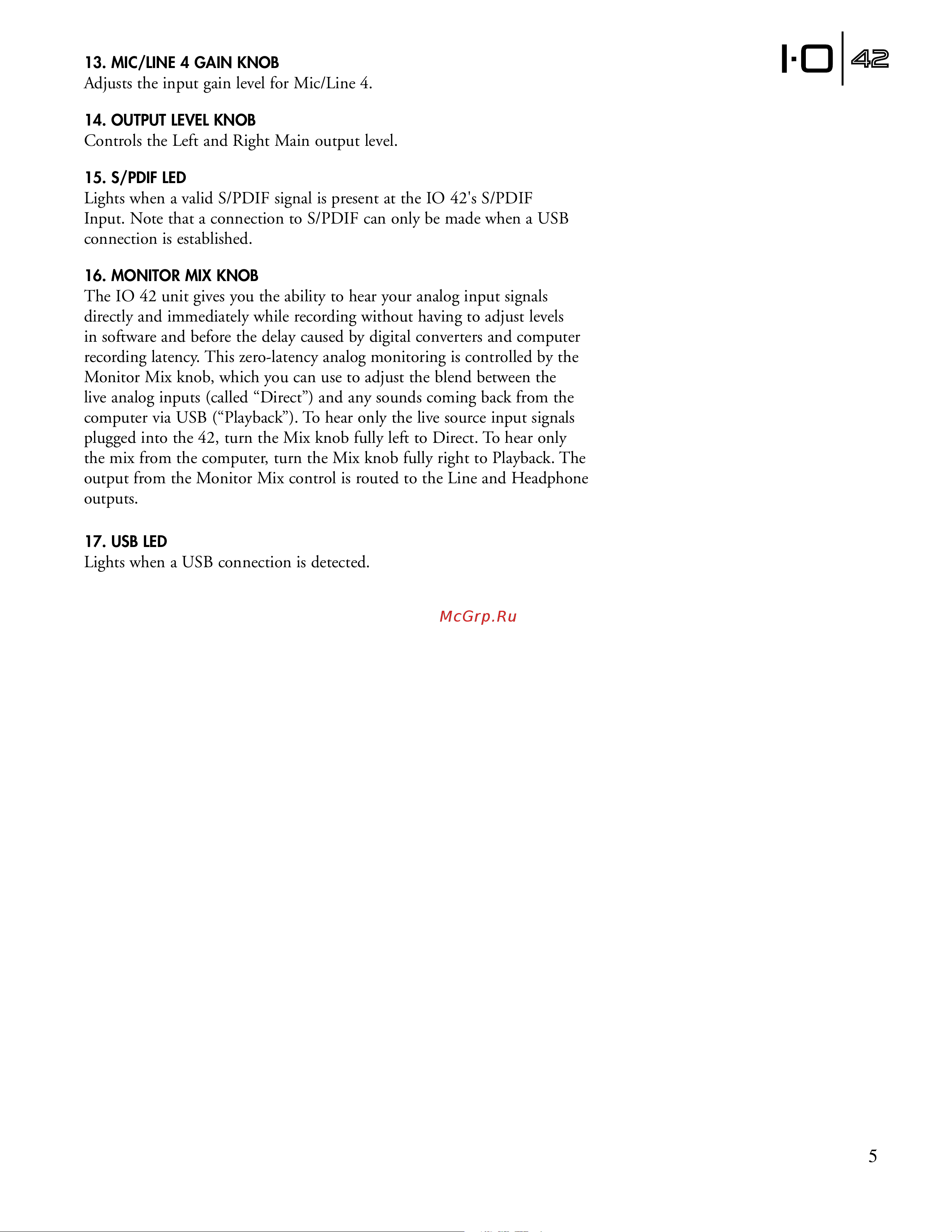

13. MIC/LINE 4 GAIN KNOB

Adjusts the input gain level for Mic/Line 4.

14. OUTPUT LEvEL KNOB

Controls the Left and Right Main output level.

15. S/PDIF LED

Lights when a valid S/PDIF signal is present at the IO 42's S/PDIF

Input. Note that a connection to S/PDIF can only be made when a USB

connection is established.

16. MONITOR MIx KNOB

The IO 42 unit gives you the ability to hear your analog input signals

directly and immediately while recording without having to adjust levels

in software and before the delay caused by digital converters and computer

recording latency. This zero-latency analog monitoring is controlled by the

Monitor Mix knob, which you can use to adjust the blend between the

live analog inputs (called “Direct”) and any sounds coming back from the

computer via USB (“Playback”). To hear only the live source input signals

plugged into the 42, turn the Mix knob fully left to Direct. To hear only

the mix from the computer, turn the Mix knob fully right to Playback. The

output from the Monitor Mix control is routed to the Line and Headphone

outputs.

17. USB LED

Lights when a USB connection is detected.
