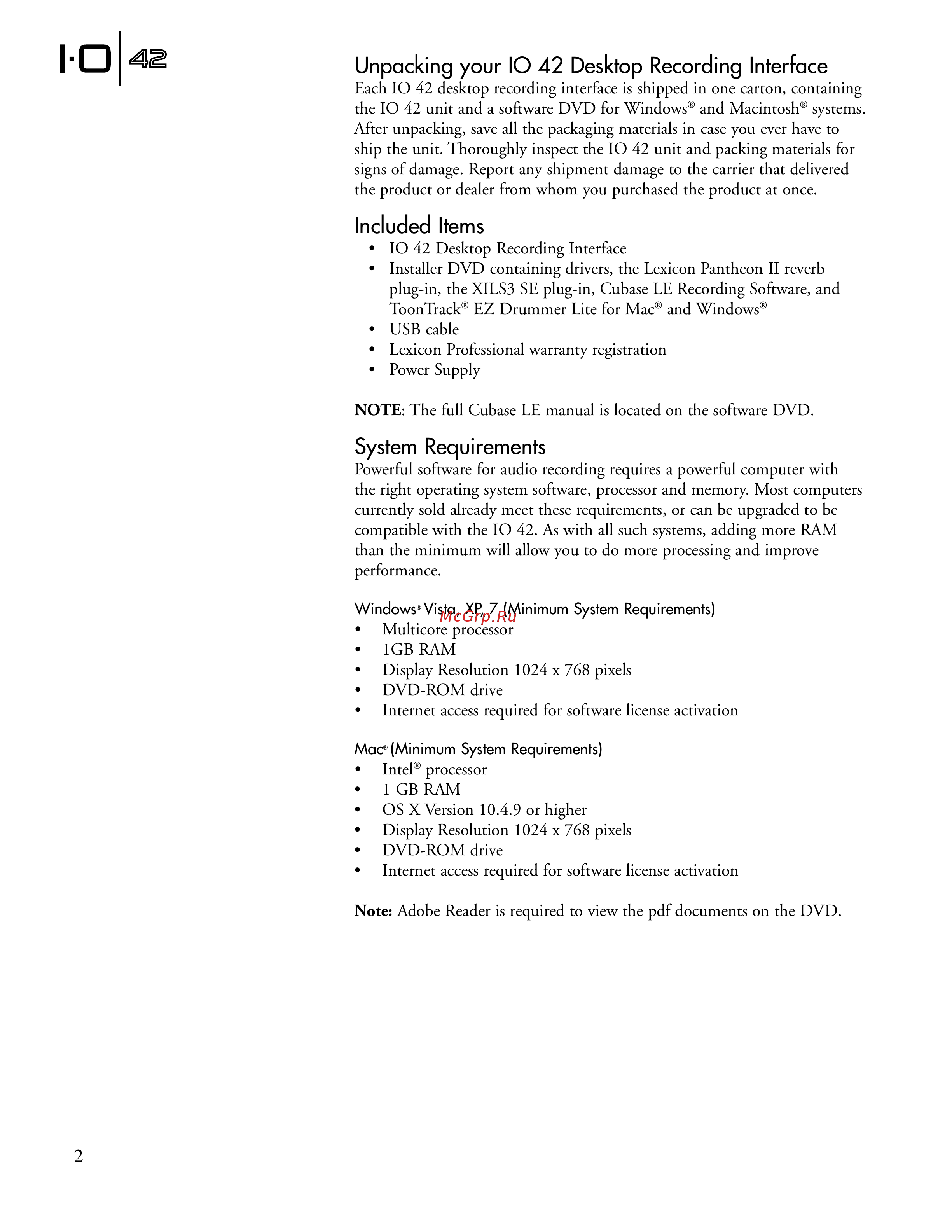

Unpacking your IO 42 Desktop Recording Interface
Each IO 42 desktop recording interface is shipped in one carton, containing
the IO 42 unit and a software DVD for Windows
®
and Macintosh
®
systems.
After unpacking, save all the packaging materials in case you ever have to
ship the unit. Thoroughly inspect the IO 42 unit and packing materials for
signs of damage. Report any shipment damage to the carrier that delivered
the product or dealer from whom you purchased the product at once.
Included Items
• IO 42 Desktop Recording Interface
• Installer DVD containing drivers, the Lexicon Pantheon II reverb
plug-in, the XILS3 SE plug-in, Cubase LE Recording Software, and
ToonTrack
®
EZ Drummer Lite for Mac
®
and Windows
®
• USB cable
• Lexicon Professional warranty registration
• Power Supply
NOTE: The full Cubase LE manual is located on the software DVD.
System Requirements
Powerful software for audio recording requires a powerful computer with
the right operating system software, processor and memory. Most computers
currently sold already meet these requirements, or can be upgraded to be
compatible with the IO 42. As with all such systems, adding more RAM
than the minimum will allow you to do more processing and improve
performance.
Windows
®
Vista, XP, 7 (Minimum System Requirements)
• Multicore processor
• 1GB RAM
• Display Resolution 1024 x 768 pixels
• DVD-ROM drive
• Internet access required for software license activation
Mac
®
(Minimum System Requirements)
• Intel
®
processor
• 1 GB RAM
• OS X Version 10.4.9 or higher
• Display Resolution 1024 x 768 pixels
• DVD-ROM drive
• Internet access required for software license activation
Note: Adobe Reader is required to view the pdf documents on the DVD.
