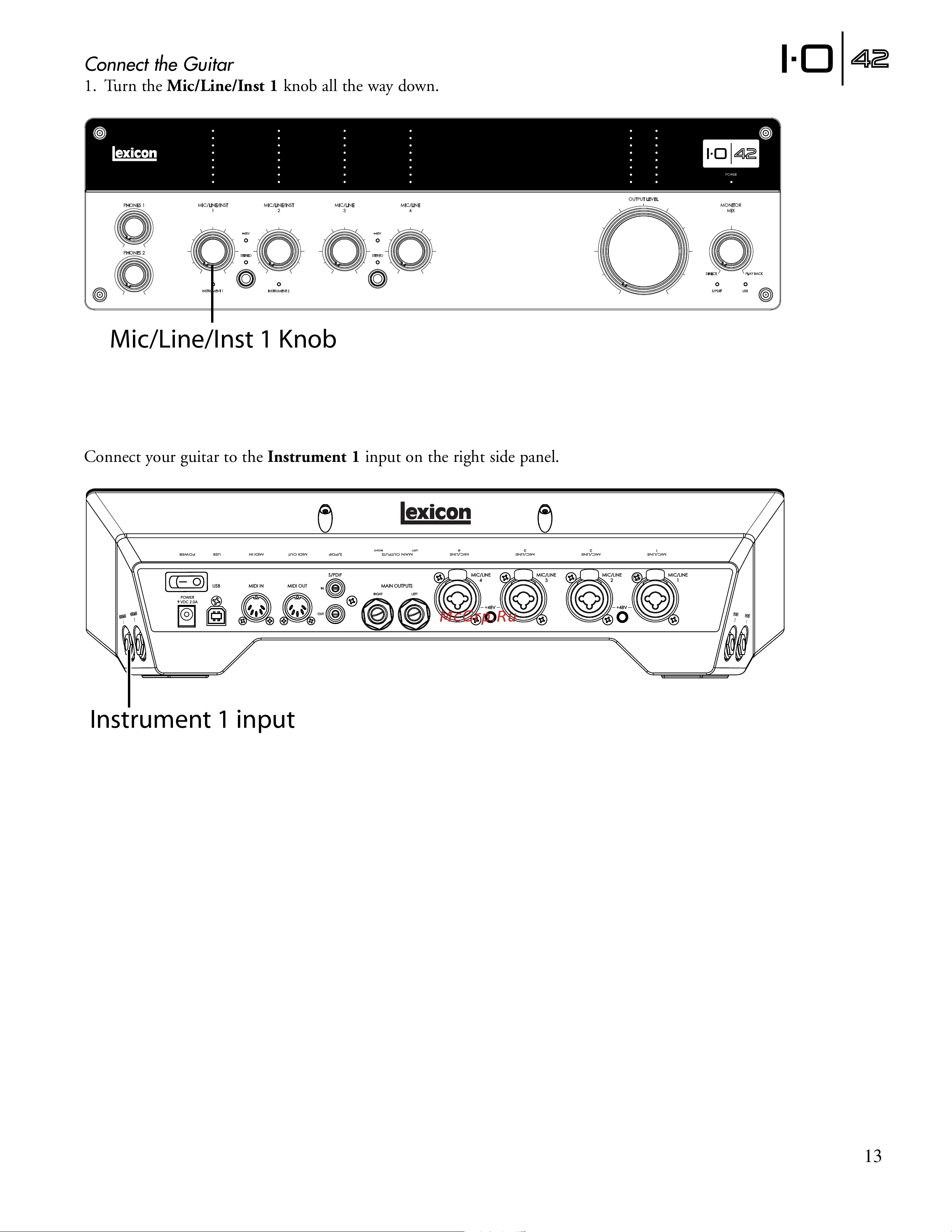

Connect the Guitar
1. Turn the Mic/Line/Inst 1 knob all the way down.
Mic/Line/Inst 1 Knob
Connect your guitar to the Instrument 1 input on the right side panel.
Instrument 1 input
