15

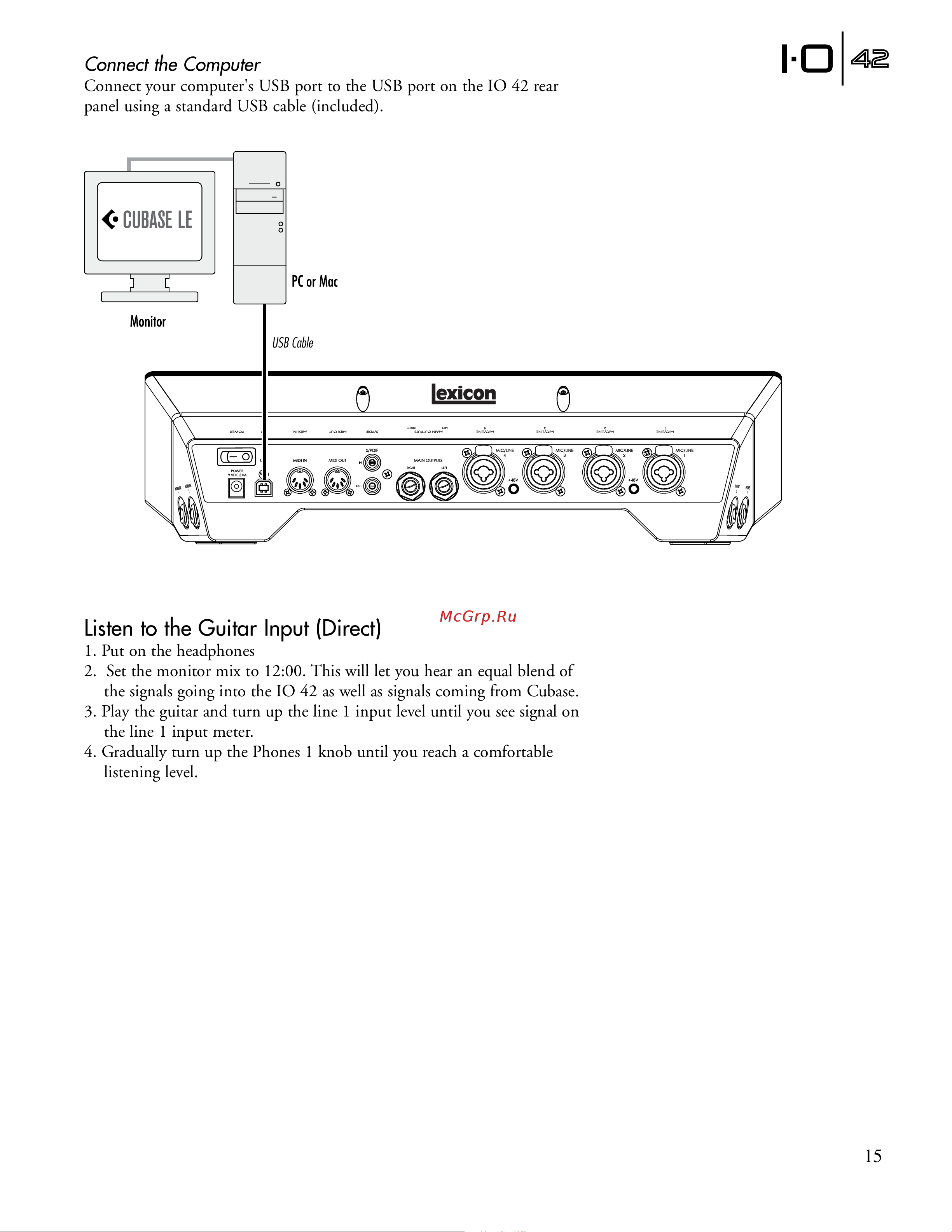

Connect the Computer
Connect your computer's USB port to the USB port on the IO 42 rear
panel using a standard USB cable (included).
USB Cable
Listen to the Guitar Input (Direct)
1. Put on the headphones
2. Set the monitor mix to 12:00. This will let you hear an equal blend of
the signals going into the IO 42 as well as signals coming from Cubase.
3. Play the guitar and turn up the line 1 input level until you see signal on
the line 1 input meter.
4. Gradually turn up the Phones 1 knob until you reach a comfortable
listening level.
