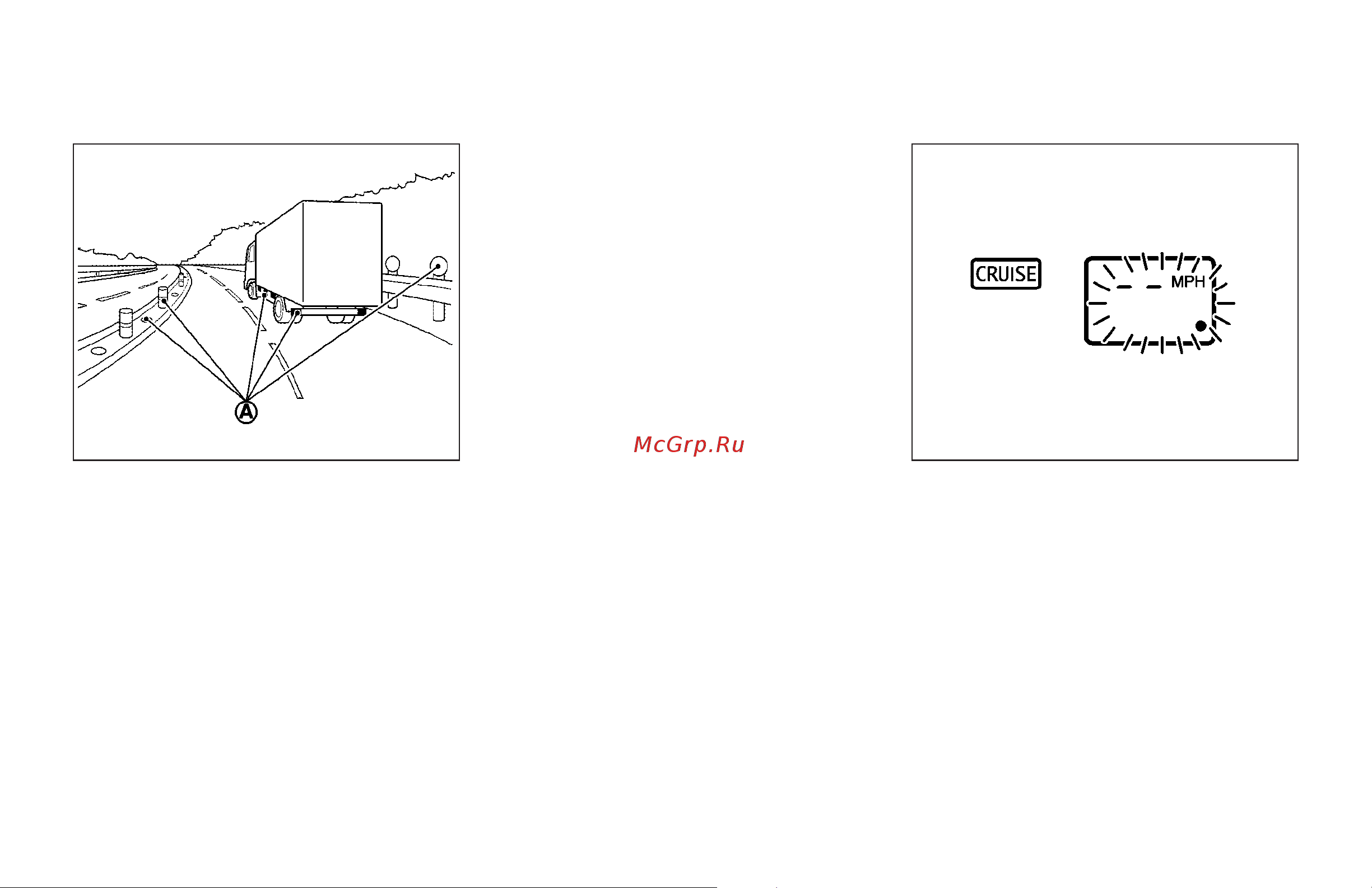

NOTE:
The approach warning chime may sound
and the system display may blink when
the ICC sensor detects some reflectors
j
A
which are fitted on vehicles in other lanes
or on the side of the road. This may cause
the ICC system to decelerate or accelerate
the vehicle. The ICC sensor may detect
these reflectors when the vehicle is driven
on winding roads, hilly roads or when en-
tering or exiting a curve. The ICC sensor
may also detect reflectors on narrow roads
or in road construction zones. In these
cases you will have to manually control the
proper distance ahead of your vehicle.
Also, the sensor sensitivity can be affected
by vehicle operation (steering maneuver or
driving position in the lane) or traffic or ve-
hicle condition (for example, if a vehicle is
being driven with some damage).
Automatic cancellation
A chime sounds under the following condi-
tions and the control is automatically can-
celed.
O When the vehicle speed falls below ap-
proximately 20 MPH (32 km/h)
O When the selector lever is shifted to the
N (Neutral) position
O When the windshield wipers are oper-
ated at low speed (LO) or high speed
(HI)
O When the parking brake is applied
O When the VDC is turned off
O When the VDC operates
Warning light and display
Condition A
The chime sounds and the Intelligent
Cruise Control system is canceled auto-
matically in the conditions described
below. Part of the system display will come
on or blink, making it impossible to set.
O When the VDC is turned off
O When the VDC operates
O When a tire slips
SSD0284A SSD0330
Starting and driving 5-39
Z 05.11.1/S50-D/V5.0 X
