The capacitor also works as a
filtering/attenuation circuit
The four pole electrolytic capacitors have
other additional advantages, which are
especially useful for reservoir capacitors in
high-end amplifiers. If you use a two
terminal, two pole capacitor the entire AC
and all noises coming from the power
supply appear on the capacitor and sent
toward to the high frequency signal path,
disturbing the load because of the common
resistive and inductive parts which force the
input and the output together electrically.
(Figure 2.).
I
DC
I
DC
I
DC
I
DC
I
DC
I
DC

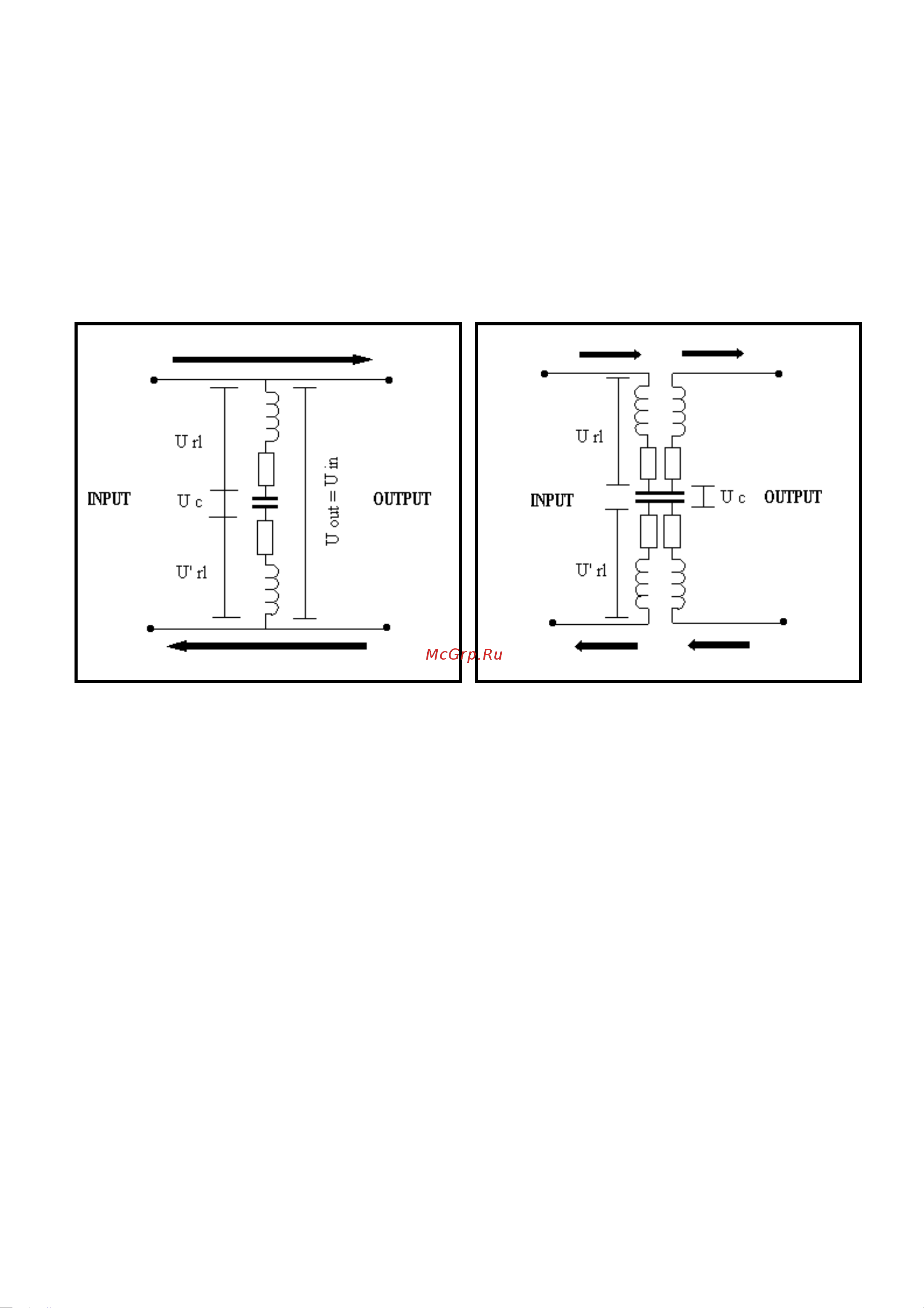

Figure 2. Figure 3.
All these disturbances can be avoided by
using four terminal capacitor constructions,
where the AC on the input terminal is
decoupled from the load. The inductances
and resistances coming from the lead to foil
connections (tab foils) form and
advantageous filter circuit which
attenuation increases with frequency.
(Figure 3.)
As a consequence of the
damping/suppressive effect of this inherent
LR filtering, often a single four-pole
capacitor can replace a complicated filter
arrangement.
Complex construction inside
The filter capability (the measure and the frequency dependence of the attenuation) and the transfer
impedance of a capacitor is determined by the inside construction and different geometrical factors of the
capacitor winding itself. As these factors depends on the dimension of the can, the length and width of
the used capacitor and tab foil, and are different from type to type, the optimisation process must be
accomplished for every single capacitance/voltage/dimension combination.
The manufacturing of the four-pole capacitor is also more complex then the traditional one.
As the yield capacitance value of the electrolytic capacitor foils (anode- and cathode-) can vary up to
20%, the length of the foil should also be adjusted accordingly to achieve the needed nominal
capacitance.
On the other hand this adjustment will destroy the hair-fine geometrical balance optimised for best
filtering and impedance so you either need to re-optimise the capacitor with the new foil length or use
raw materials, which have always the same features. It’s a really technical and economical challenge.
