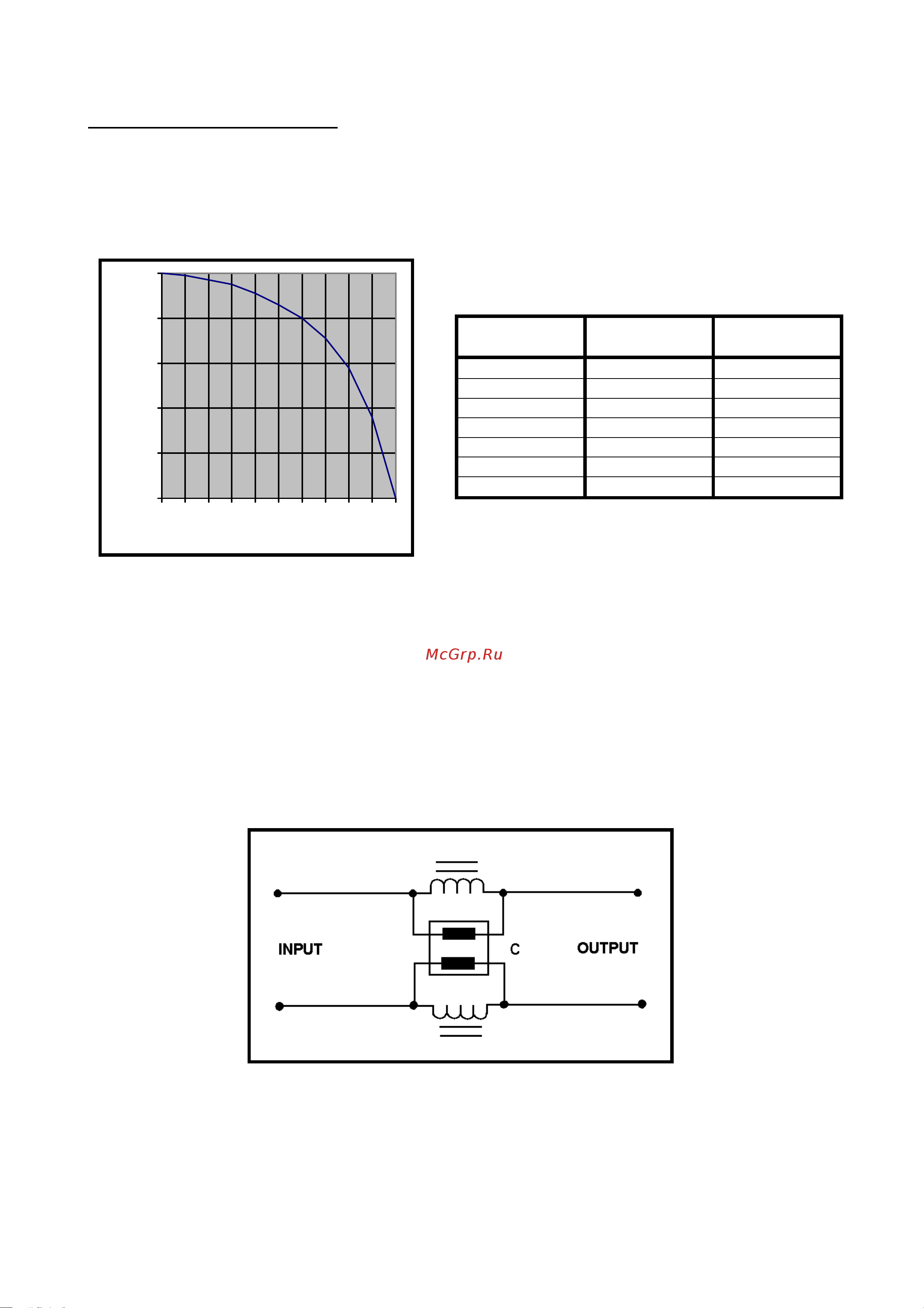

Application remarks/advices
Due to the special construction of the
capacitor the DC load current pass trough
the capacitor.
Any heat generated by this DC current
must be taken into account when the
capacitor’s operating temperature is
calculated.
The mixed DC/AC load can be calculated
with the help of the Figure 4.
0
20
40
60
80
100
0 20406080100
% I d c
% Iac
Figure 4.
The 100% of Idc is coming from the DC
resistance and the construction of the
capacitor, and mainly depends on the heat
dissipation capability of the capacitor. For
Idc values of different types and
constructions see the table above. For
calculation of the full load the Iac values
are given as max. admissible ripple current
values on the capacitor data chart.
When it is necessary the DC load can be
increased by means of a by-pass ferrite
core winding according to Figure 5. (Not
recommended for high-end audio
applications).
Figure 5.
Axial type
Ø D x L [mm]
Radial type
Ø D x L [mm]
Idc [A]
35 x 56 3,9
35 x 76 5,5
35 x 96 6,9
35 x 30 2,7
35 x 40 3,4
35 x 50 4,1
35 x 70 5,5
