As a rule of thumb the DC resistance of the

by-pass winding must be about the 1/20 of

the capacitors DC resistance (measured

between the input and output terminals on

the same polarity poles) and its AC

resistance is about 20 times higher than the

capacitors AC resistance (impedance) on

the working frequency.

The input and output terminals are marked

on the capacitor. It is recommended to use

this connection thus the inherent inside

filter is optimised for this signal direction.

However reversing the inputs with the

outputs will not damage the capacitor and

the consequence is only shown as

decreased damping/suppression effect and

slightly higher transfer impedance.

Frequently asked questions

- I would like to replace the traditional two pole capacitors in my power supply with four pole

ones. Is it possible and how?

Yes it is possible and neither so difficult. You should make some minor changes in the circuit

where the traditional two pole capacitors should be replaced by the four pole ones.

First of all remove the two pole capacitor and mark the polarity on the panel or circuit board.

When you have a two pole capacitor in the circuit, you have also wires leading to positive and

the negative pole of the capacitor. These two wires (or in printed circuit copper band leads)

should be cut off near to the original capacitor connection. By this way you get two wires for

each pole. One, which leads toward to the circuit and an other which leads to the old two pole

capacitors connection point. Simple connect the short wire, leading to the positive terminal of

the two pole capacitor to the positive output and the other part of this positive wire leading

toward the circuit to the positive input of the four pole capacitor. Make the same on the

negative side and your four pole capacitor is connected.

+ + +

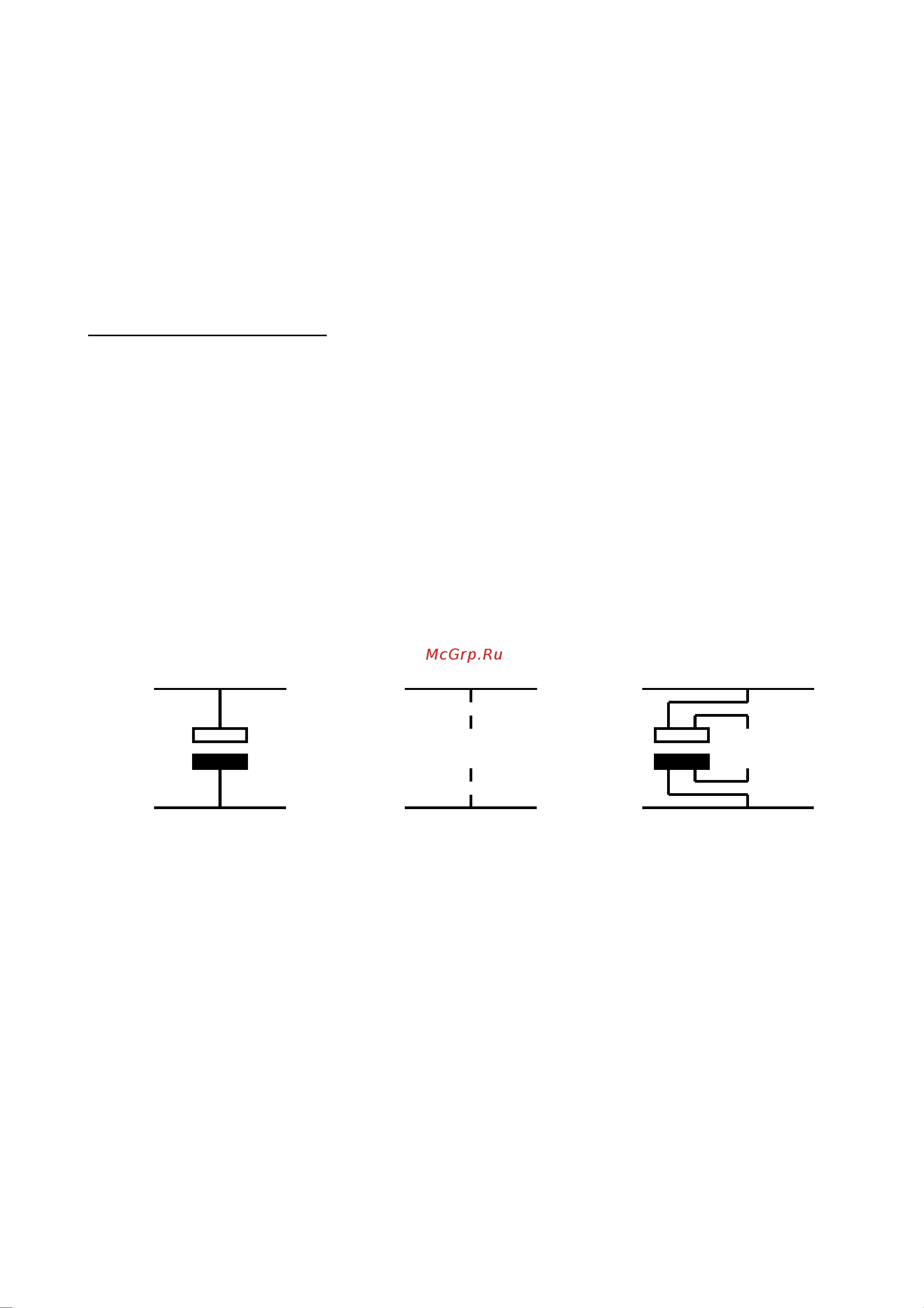

INPUT OUTPUT

- - -

- What kind of improvement of the sound quality can I expect when I replace the traditional

two pole electrolytics with fire pole ones in the power supply of my CD player/amplifier?

The degree and the type of the improvement you will get replacing the two pole electrolytic

capacitors (even they were one of the highly regarded types with graphite particles in the

capacitor paper or with ceramic particles in the electrolyte) with the four pole ones is of course

depends on your equipment, but we guarantee a significant and audiable improvement in

transparency, high frequency capabilities, detail, dynamics and microdynamics, immediacy and

clarity.
