20
Mixing amplifiers
b. Connecting and setting up a paging microphone

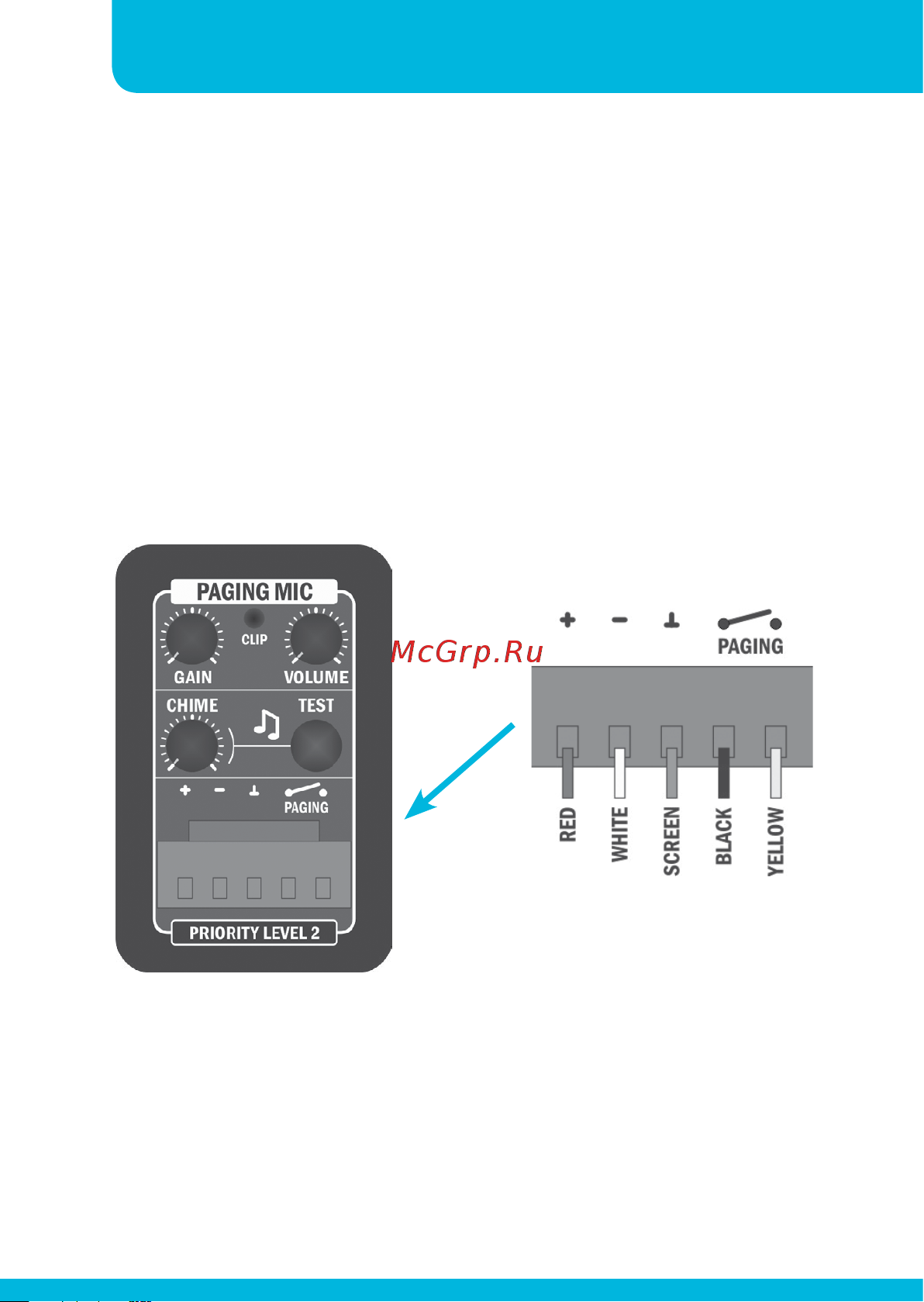

1. Connect the microphone wire as shown in the picture.
The + - GND is used for the balanced signal of the microphone.
The paging contact closure is indicated in the picture.
mic signal paging
contact
2. Close the paging contact and keep it closed.
