Stihl BR 800 [16/80] Adjusting the throttle cable

BR 800, BR 800 X

English

It may be necessary to correct the

adjustment of the throttle cable after

assembling the machine or after a

prolonged period of operation.

Adjust the throttle cable only when the

unit is completely and properly

assembled.

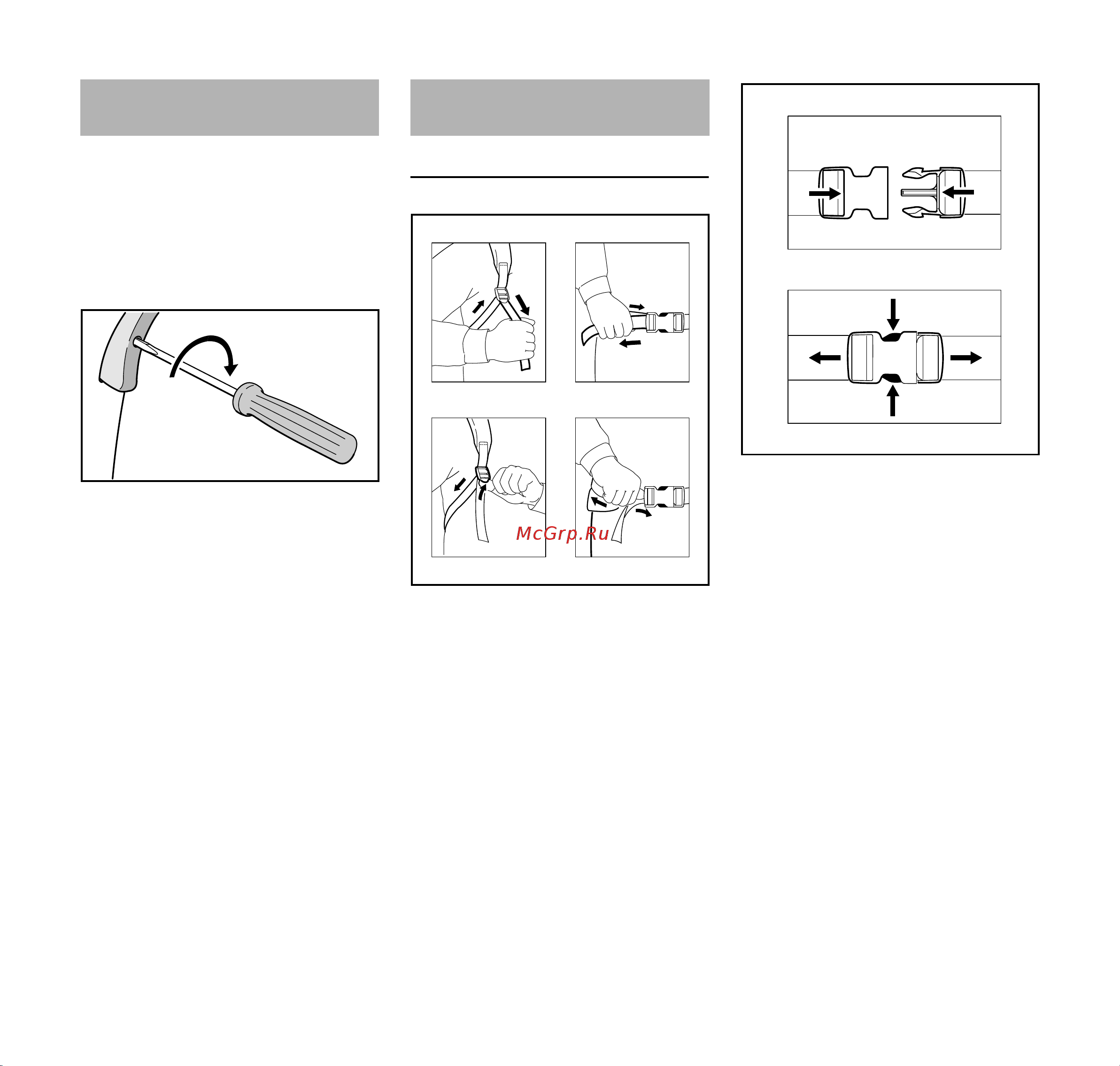

N Set the throttle trigger to the full

throttle position.

N Carefully rotate the screw in the

throttle trigger in the direction of the

arrow until you feel initial resistance.

Then rotate it another half turn in the

same direction.

Adjusting the Harness

A Pull the ends of the straps to tighten

the harness.

B Lift the tabs of the adjusters to

loosen the straps.

C Close the buckle by pushing the two

parts together.

D Squeeze the hooks to open the

buckle.

Adjusting the Throttle Cable

002BA655 KN

Fitting the Harness

271BA047 KN

271BA048 KN
