M-Audio Studiophile DSM3 Guide16
To adjust the Desktop 200 Hz Filter:
Set switches 9, 10 11 and 12 to the positions
shown below to activate the corresponding EQ
levels.
Tips for Best Performance
DSM3 speakers are built and tested to exacting
standards with features to protect the units from
failure under normal usage. Keep in mind the
following:
Overdriving the units for prolonged periods
or not observing the warnings set out in this
guide may result in failure.
If distortion occurs, reduce the input level im-
mediately.
Both the HF and LF drivers are delicate and
should not be touched. A damaged driver will
adversely affect the performance of the speaker.
As a precaution, always turn off the units be-
fore plugging or unplugging signal connections
or switching source equipment.
Troubleshooting
The LED located on the front of the unit indi-
cates the following states of operation.
If the LED is lit solid blue and there is no sound, do
the following:
Check that the unit is receiving an analog sig-
nal or valid digital signal.
Check the temperature of the rear metal
panel. If it is hot, turn the unit off for a mini-
mum of five minutes to allow it to cool. When
cool, turn the unit on and check for normal op-
eration. If necessary, relocate the unit to ensure
adequate ventilation.
If the thermal shutdown activates a second
time, contact M-Audio customer service.
If the LED is unlit and there is no sound:
Check fuse and power connection. If the fuse
is intact and the power connection is good, but
the LED remains unlit with no sound, contact
M-Audio customer service.

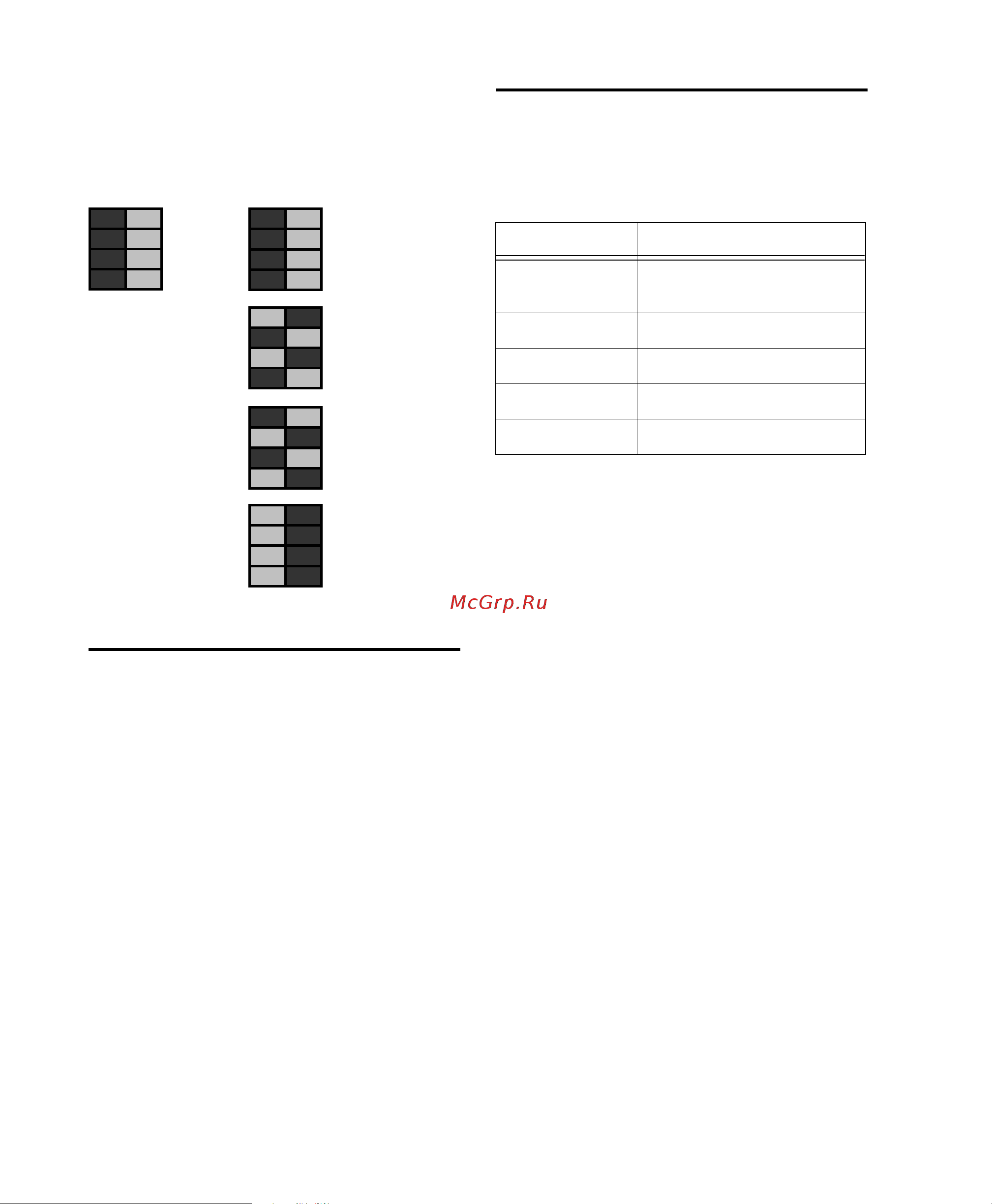

Desktop 200 Hz Filter switches and settings
9
01
11
12
0 dB
–1.0 dB
–2.0 dB
–3.0 dB
FFO
FFO
FFO
FFO
ON
OFF
ON
OFF
OFF
ON
OFF
ON
ON
ON
ON
ON
Front Panel LED States
LED State Indication
Blue Analog Input
Digital Input: Lock
Yellow Digital Input: No Lock
Blue (flashing) Digital Standby Mode
Red Clipping
Red (flashing) Hardware failure
