Nec NP03WK [11/14] Adjusting the projection position

Adjusting the Projection Position

Before adjusting

adjust the focus of the projected image.

For information on how to p

roject an image, see “Installation and Connections” and“ P

rojecting

an Image (Basic Operation)” in the user’s manual included with the projector.

• From the on-screen menu, select "Ceiling Front" as the method of projection.

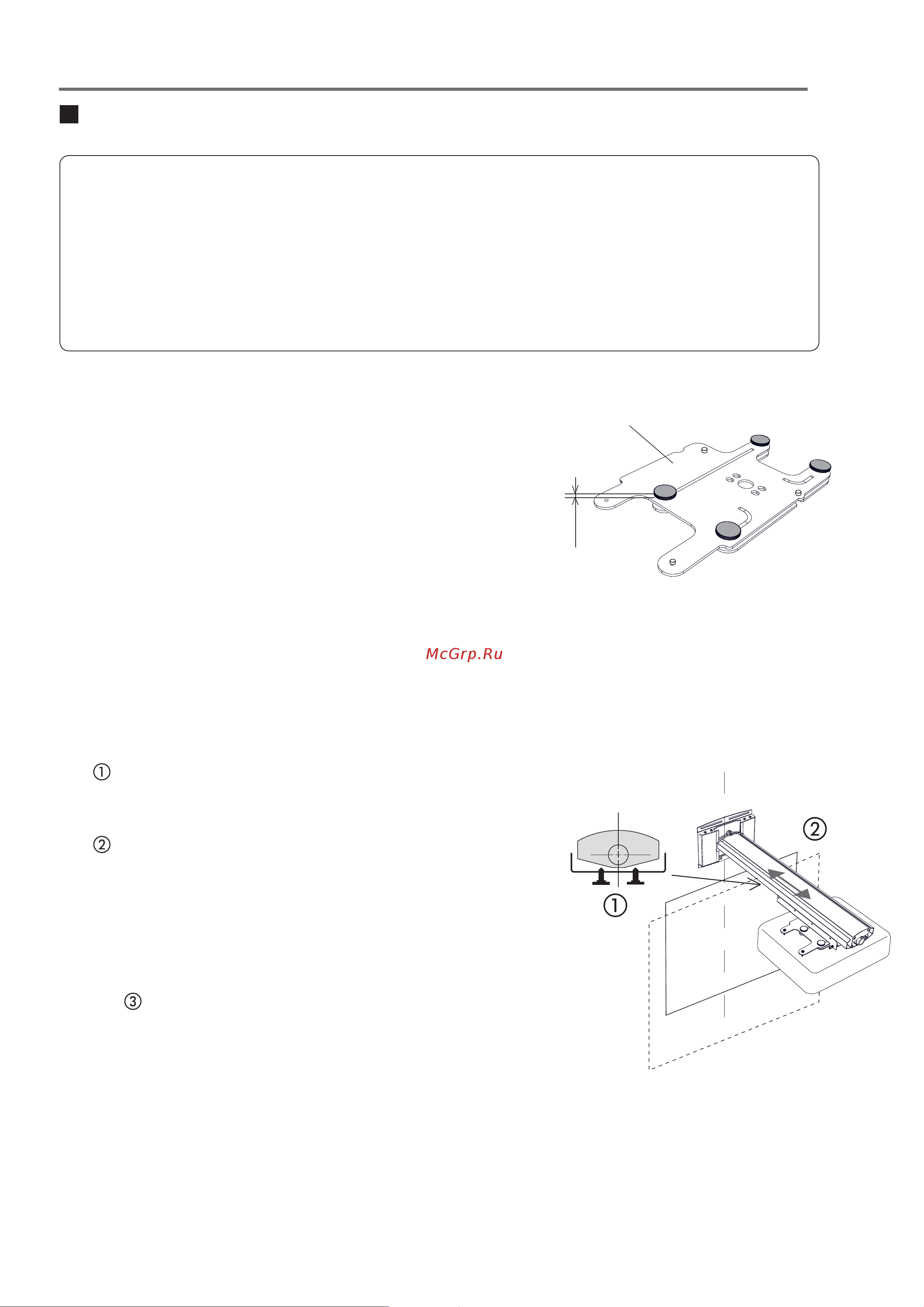

1. Check the tilt adjust knobs.

Verify that the four tilt adjust knobs are all set to the same

adjustment height.

If the projector fixation plate is slanted, correct vertical

adjustment and horizontal adjustment cannot be performed.

Projector fixation plate

Knob adjustment height

2. Adjust the size of the projected image and the left/right tilt.

* The illustrations in this manual show the adjustment for an image with a 4:3 aspect ratio.

Connecting cables for screen and projector are omitted.

Adjust the size of the projected image and, if necessary, the tilt in clockwise or anticlockwise

direction.

Loosen the vertical adjust/arm fixation knobs.

. noitartsulli eht ni kcalb ni nwohs sbonkowt eht nesooL -

Move the projector back and forth to match the size of

the projected image to the screen.

To do this, grasp the projector firmly on both sides and

move it carefully.

- To adjust tilt in the left/right direction, proceed to step

- If only size adjustment is to be performed, tighten the

two knobs shown in black in the illustration.

Preparations

Project an image from the projector, then first use the focus lever of the projector to roughly
