Nec NP03WK [13/14] Adjust the tilt

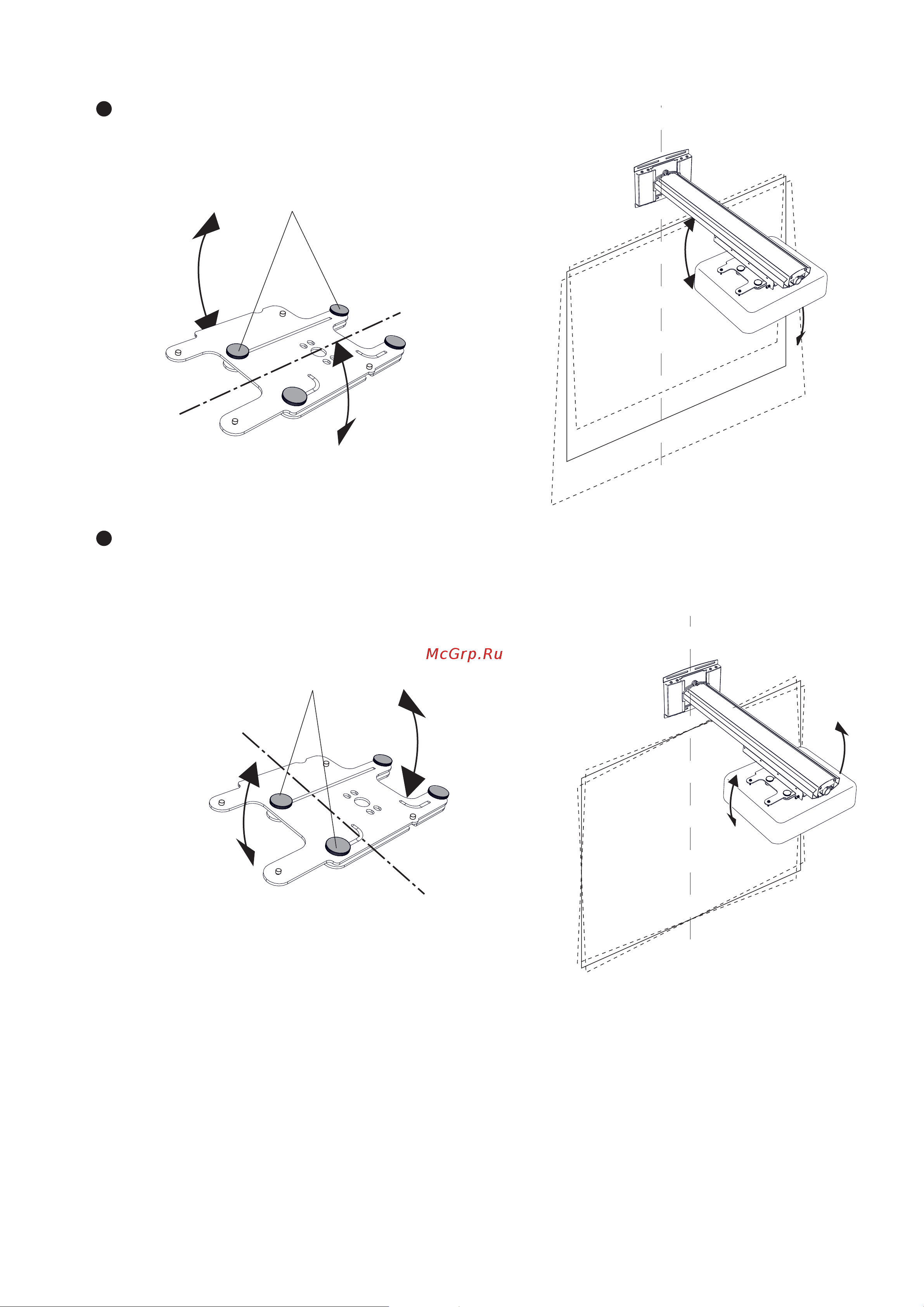

Tilt adjustment is performed with the four adjustment knobs.

Front/rear tilt adjustment

Rotation axis

Left/right tilt adjustment

Fine adjustment in same direction as for vertical adjustment

• If tilt adjustment achieved with these knobs is not suf cient, repeat the adjustment process from

step 2 on page E-12.

• During adjustment, the position of the projected image may shift. In such a case, loosen the wall

adapter and arm fixation screws and adjust the position.

This completes the adjustment.

Securely tighten all screws and adjustment knobs.

4. Adjust the tilt.

Adjust together

Rotation axis

Adjust together
