. retpada llaw eht ot mra eht hcattA.3

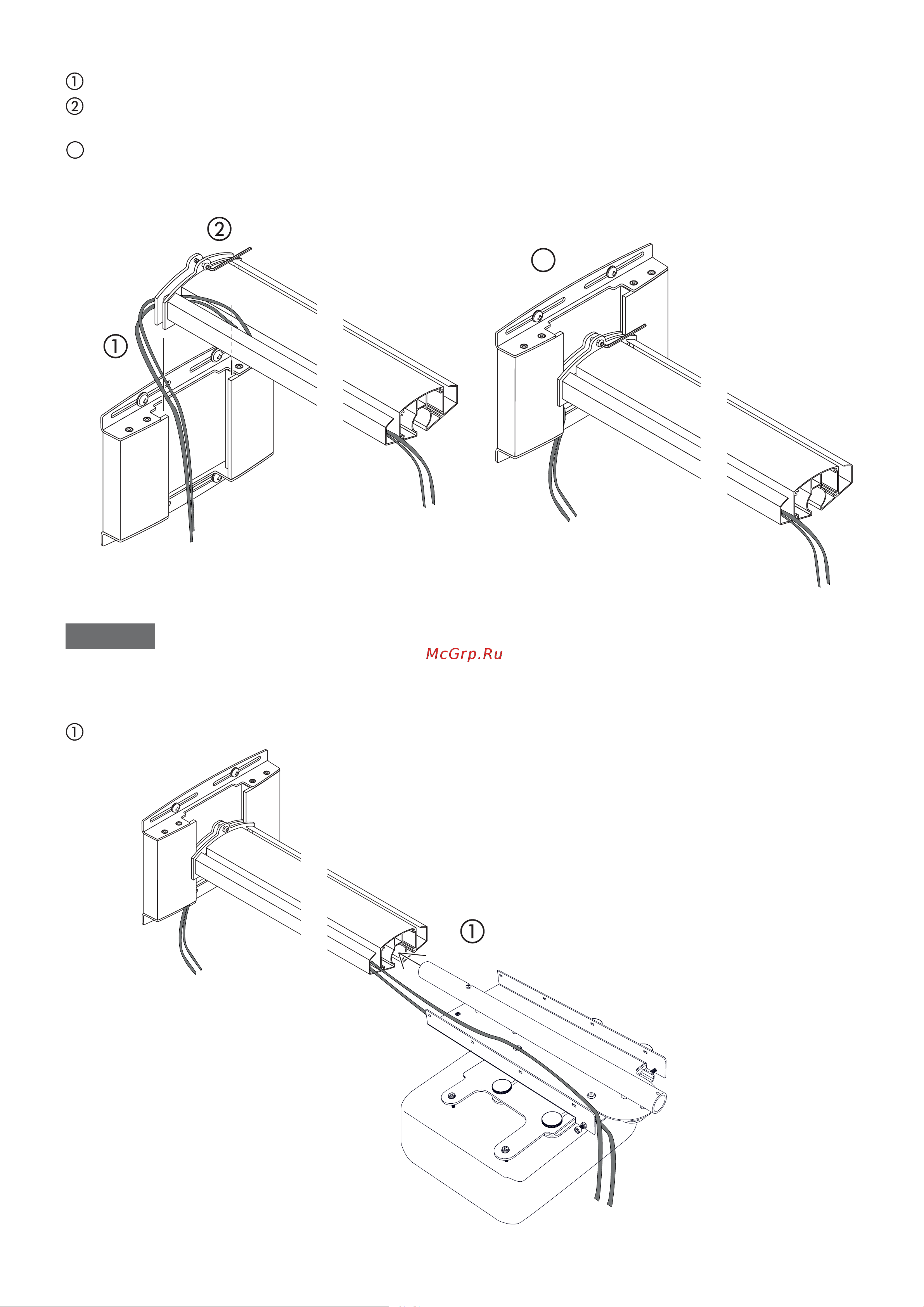

NP02WK: Loosen the arm fixation screws (top and bottom) with the supplied hex wrench.

NP03WK: Loosen the arm fixation screws (2 on top and 2 on bottom) with the supplied hex wrench.

Thread the cables through the arm plates and the arm.

Insert the arm plate (A) into the wall adapter from the top and tighten the screws (top and

bottom) near the center of the elongated hole.

* The covers (A) and (B) are to be attached after installation and adjustment are completed.

Mount the projector assembled in step 1 on the arm.

Caution

To do this, emove the packing spacers from the projector. Then hold the

projector body with the help of a second person and insert it carefully into the arm.

Do not hold the projector by the cable cover or the mirror section, and do not touch

the mirror or lens.

Insert the central axis of the projector adapter into the arm.
