Hisense U5120G [10/19] Placement and mounting

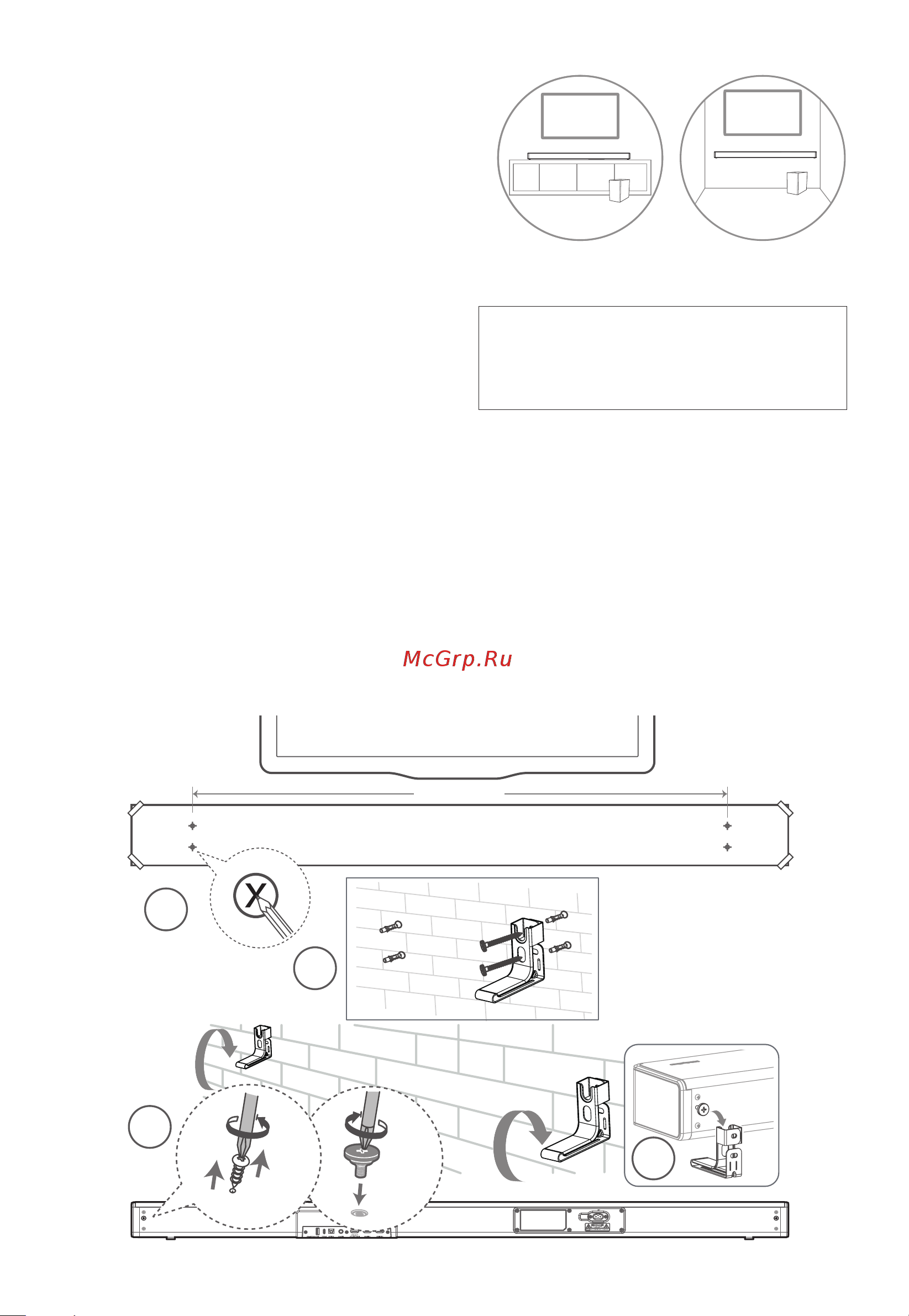

Placement and Mounting

Placement

A If your TV is placed on a table, you can place

the unit on the table directly in front of the TV

stand, centered with the TV screen.

B If your TV is attached to a wall, you can mount the

unit on the wall directly below the TV screen.

Wall Mounting (if using option-B)

Note:

- Installation must be carried out by qualified

personnel only. Incorrect assembly can result in

severe personal injury and property damage (if

you intend to install this product yourself, you

must check for installations such as electrical

wiring and plumbing that may be buried inside

the wall). It is the installer’s responsibility to

verify that the wall will safely support the total

load of the unit and wall brackets.

- Additional tools (not included) are required for

the installation.

- Do not overtighten screws.

- Keep this instruction manual for future

reference.

- Use an electronic stud nder to check the wall

type before drilling and mounting.

1156mm

WARNING

• To prevent injury, this apparatus must be securely

attached to the oor/wall in accordance with the

installation instructions.

• Suggested wall mounting height: ≤ 1.5 meters.

1. Drill 4 parallel holes (Ø 5.5-6 mm each according

to wall type) in the wall. The distance between

the holes should be 1156 mm.

2. Firmly fix 1 dowel into each hole in the wall if

necessary. Tighten the wall mount brackets on

the wall with screws and screwdriver (included).

Make sure that they are securely installed.

3. Remove the screws at the back of the unit.

Install the wall mounting screws into the back

of the unit.

4. Lift the unit onto the wall mount brackets and

slot into place.
