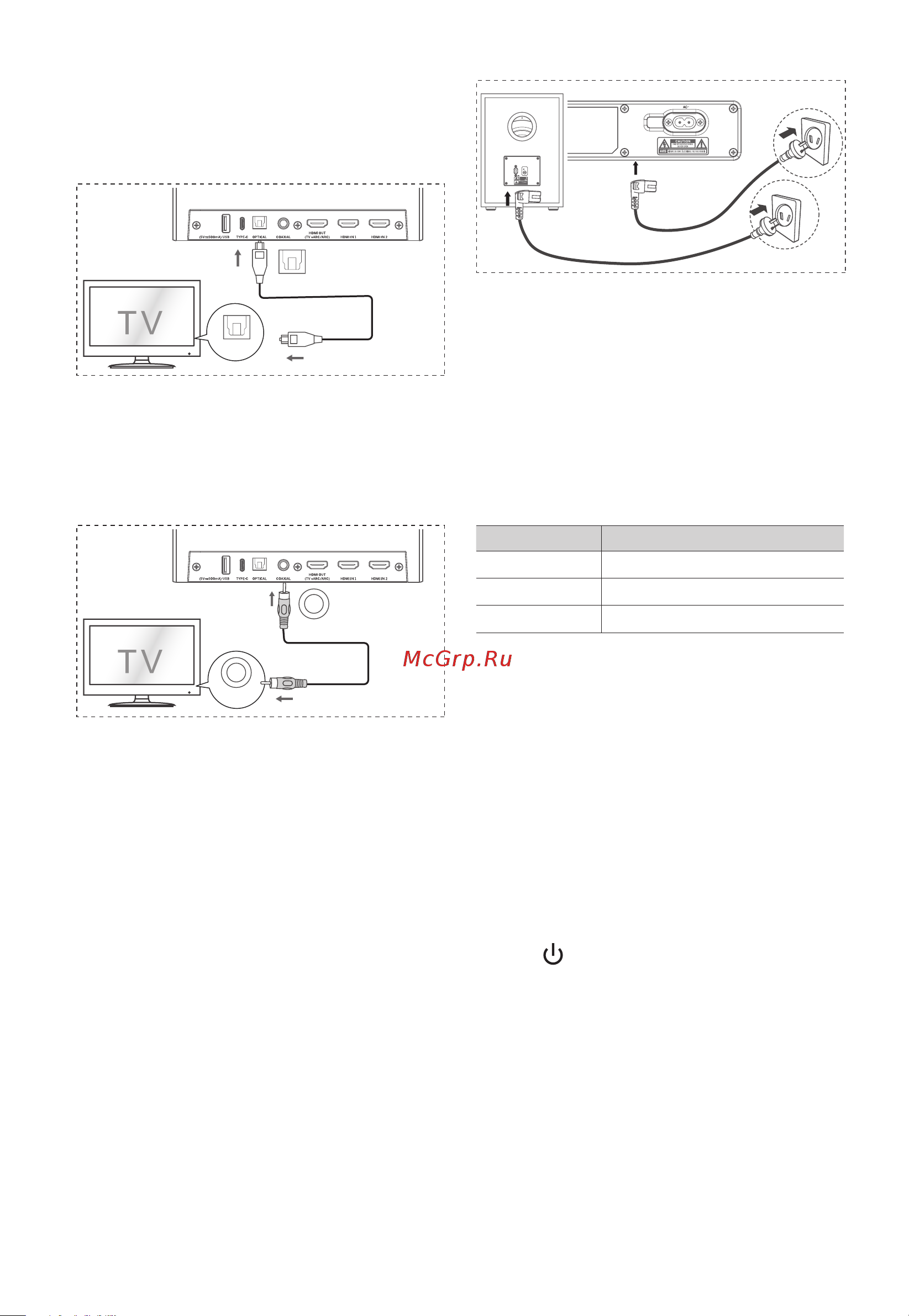

Use the OPTICAL Socket

- Connect an OPTICAL cable (not included) to

the TV’s OPTICAL OUT socket and the OPTICAL

socket on the unit.

OPTICAL

COAXIAL

OPTICAL

HDMI IN

Blu-ray Player / DVD Player /

Recorder / Set-top Box...

HDMI OUT

TV eARC/ARC

HDMI IN 1 HDMI IN 2

HDMI ARC

HDMI

eARC/ARC

Use the COAXIAL Socket

• You also can use the COAXIAL cable (not

included) to connect the TV's COAXIAL OUT

socket and COAXIAL socket on the unit.

OPTICAL

COAXIAL

OPTICAL

HDMI IN

Blu-ray Player / DVD Player /

Recorder / Set-top Box...

HDMI OUT

TV eARC/ARC

HDMI IN 1 HDMI IN 2

HDMI ARC

HDMI

eARC/ARC

Tip: The unit may not be able to decode all digital

audio formats from the input source. In this case,

the unit will mute. This is NOT a defect. Ensure

that the audio setting of the input source (e.g. TV,

game console, DVD player, etc.) is set to PCM or

Dolby Digital (Refer to the user manual of the

input source device for its audio setting details)

with HDMI / OPTICAl / COAXIAL input.

Connect Power

•

Risk of product damage!

Ensure that

the power supply voltage corresponds to the

voltage printed on the back or the underside

of the unit.

• Before connecting the AC power cord, ensure

you have completed all other connections.

• Soundbar

Connect the mains cable to the AC~ socket of

the main unit and then into a mains socket.

• Subwoofer

Connect the mains cable to the AC~ socket of

the Subwoofer and then into a mains socket.

Pair up with the subwoofer

Automatic pairing

The subwoofer and soundbar will automatically

pair when both units are plugged into the mains

sockets and turned on. No cable is needed for

connecting the two units.

• Determine the status based on the wireless

Subwoofer indicator.

LED State Status

Fast blink

Subwoofer in pairing mode

Constant on

Connected / Pairing successful

Slow blink

Connection / Pairing Failed

NOTE:

- Do not press the Pair button on the rear of the

subwoofer, except for manual pairing.

- If the automatic pairing fails, pair the

subwoofer with the main unit manually.

Manual pairing

1. Ensure that all the cables are well connected

and the main unit is in Standby mode.

2. Press and hold the Pair button on the rear

of the subwoofer for a few seconds. The

subwoofer will enter the pairing mode and the

Pair Indicator will blink quickly.

3. Press the button on the main unit or on the

remote control to switch the main unit on.

4. After the wireless connection succeeded, the

Pair Indicator will light up.

5. If the Pair indicator blinks, the wireless

connection has failed. Unplug the cable of the

subwoofer and then reconnect the main cable

after 3 minutes. Repeat step 1 ~ 4.

NOTE:

• If the wireless connection fails again, check

if there is conflict or strong interference

(for example, interference from an electronic
