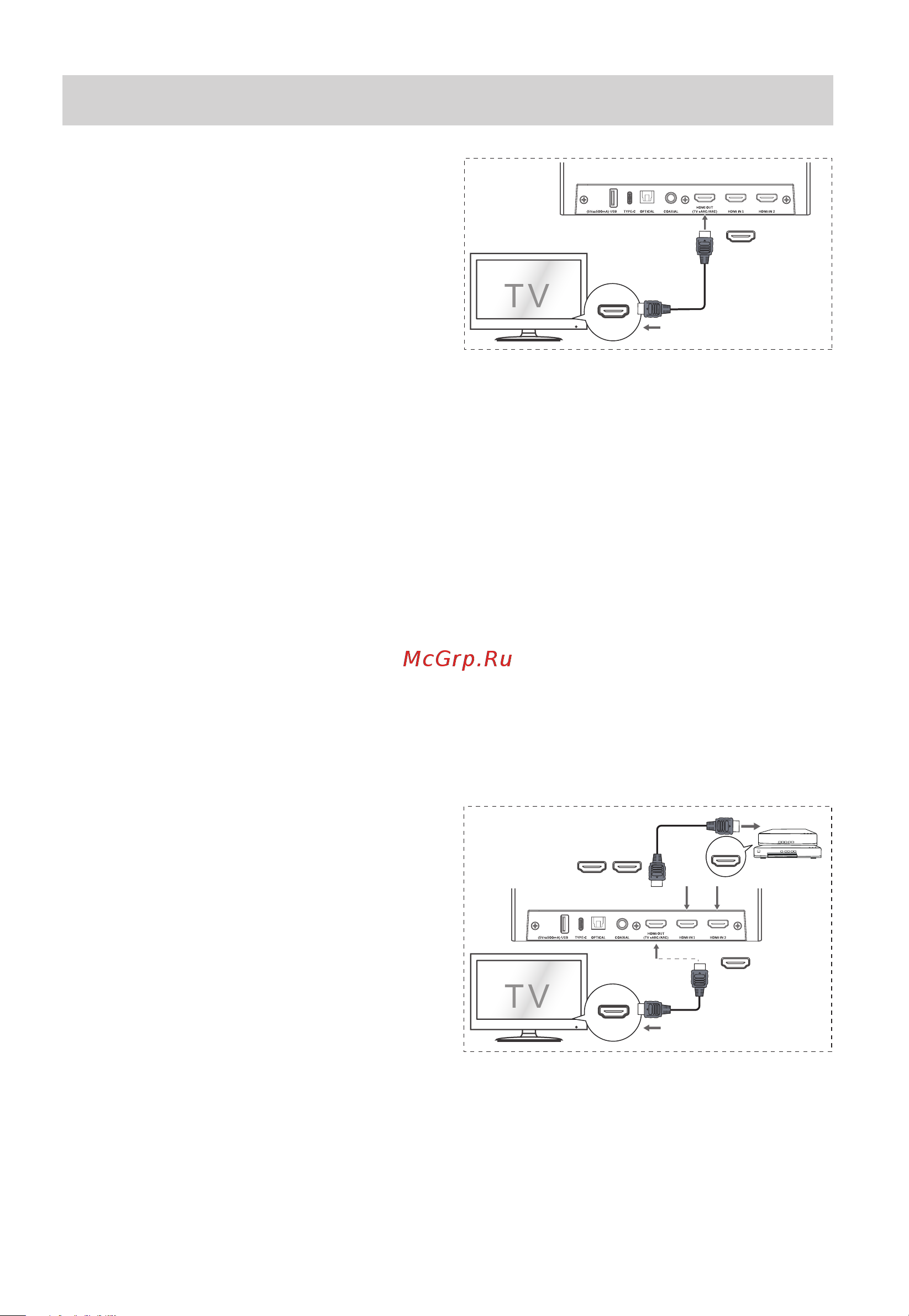

11
Connections
Dolby Atmos®
Dolby Atmos® gives you immersive listening
experience by delivering sound in three
dimensional space, and all the richness, clarity,
and power of Dolby sound. For more information,
please visit dolby.com/technologies/dolby-atmos
DTS: X
DTS: X The border sound is no longer constrained
by fixed-position speaker placement or specific
channel signals. It can be flexibly debugged
according to the playback environment to achieve
the best sound performance in this environment.
For using Dolby Atmos® / DTS: X
Dolby Atmos® / DTS: X is available in HDMI IN 1
/ HDMI IN 2 and HDMI eARC/ARC mode. For the
details of the connection, please refer to “HDMI
Connection”.
1. To use Dolby Atmos® / DTS: X in HDMI IN 1 and
HDMI IN 2 mode, Your TV had to support Dolby
Atmos® / DTS: X or HDMI audio passthrough.
2. Make sure that “Bitstream“, ”RAW“ or ”No
Encoding“ is selected for bitstream in the
audio output of the connected external device
(e.g. Blu-ray DVD player, TV etc.).
3. While entering Dolby Atmos / DTS: X / Dolby Digital
/ PCM format, the soundbar will show DOLBY
ATMOS / DTS: X / DOLBY AUDIO / PCM AUDIO.
Use the HDMI Socket
Some 4K HDR TVs require the HDMI input or picture
settings to be set for HDR content reception. For
further setup details on HDR display, please refer to
the instruction manual of your TV.
Using HDMI to connect the soundbar, AV
equipment and TV:
Method 1:
eARC / ARC (Audio Return Channel)
The eARC / ARC (Audio Return Channel) function
allows you to send audio from your ARC- compliant
TV to your soundbar through a single HDMI
connection. To enjoy the ARC function, please ensure
your TV is both HDMI-CEC and ARC compliant and
set up accordingly. When correctly set up, you can
use your TV remote control to adjust the volume
output (VOL +/- and MUTE) of the soundbar.
OPTICAL
COAXIAL
COAXIAL
OPTICAL
HDMI IN
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
HDMI OUT
HDMI OUT
TV eARC/ARC
HDMI IN 1 HDMI IN 2
HDMI ARC
HDMI
eARC/ARC
- Connect the HDMI cable (included) from unit's
HDMI OUT (TV eARC/ARC) socket to the HDMI
(ARC) socket on your ARC compliant TV. Then
press the remote control to select HDMI eARC.
Tips:
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC
may differ depending on the TV. For details
about ARC function, please refer to the owner’s
manual.
• ARC only works with devices that are HDMI
ARC capable as well as with an HDMI 1.4 cable
(and higher).
Method 2: Standard HDMI
- If your TV is not HDMI ARC-compliant, connect
your soundbar to the TV through a standard
HDMI connection.
OPTICAL
COAXIAL
COAXIAL
OPTICAL
HDMI IN
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
HDMI OUT
HDMI OUT
TV eARC/ARC
HDMI IN 1 HDMI IN 2
HDMI ARC
HDMI
eARC/ARC
1. Use an HDMI cable to connect the soundbar's
HDMI OUT (eARC/ARC) socket to the TV’s
HDMI IN socket.
2. Use an HDMI cable to connect the soundbar's
HDMI IN (1 or 2) socket to your external devices
(e.g. games consoles, DVD players and blu ray).
