Crown CT18183 BMC [23/164] Installation and regulation of power tool elements

English

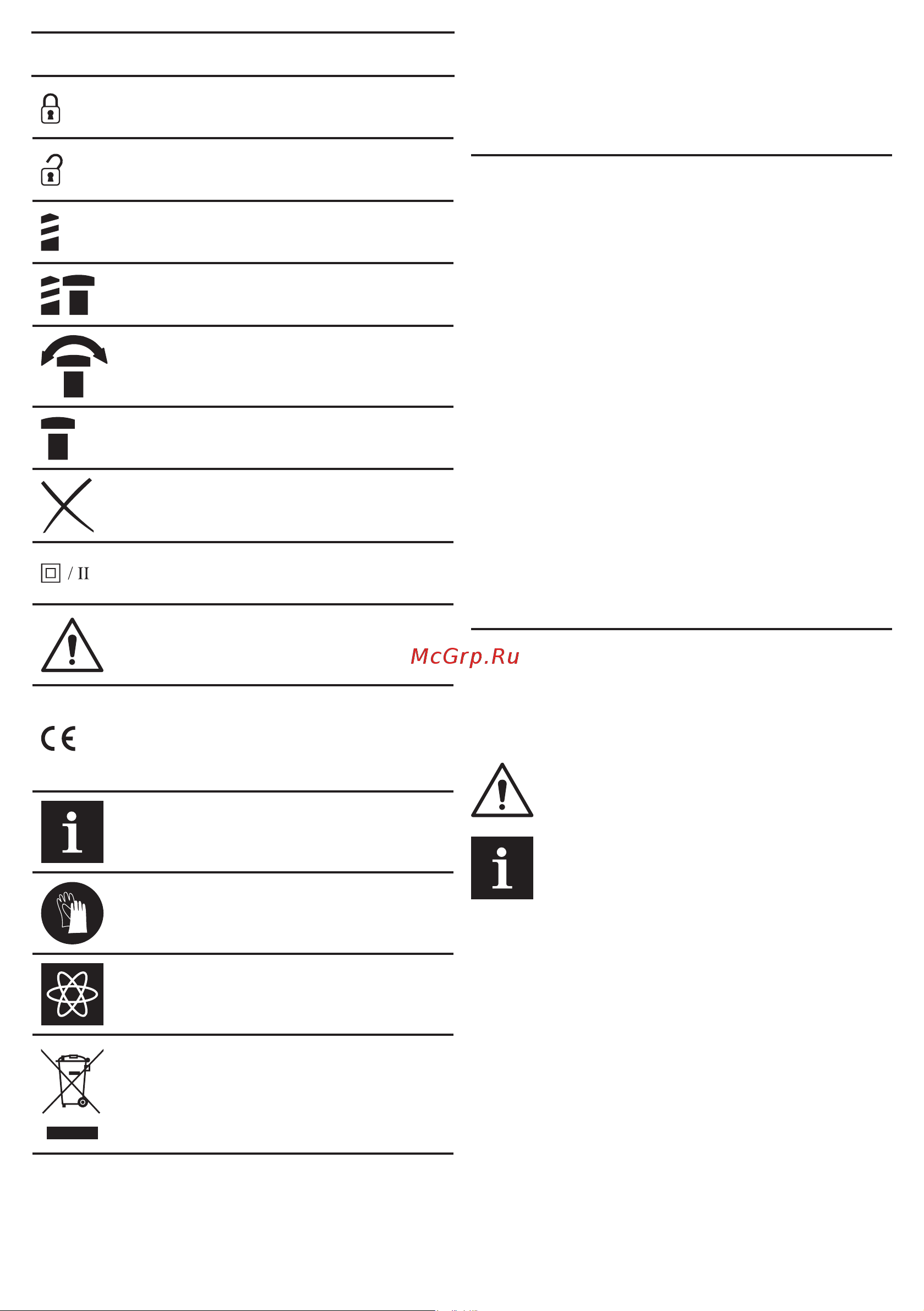

Symbol Meaning

Locked�

Unlocked�

"Drilling" mode�

"Impact drilling" mode�

Special mode that allows

for chisel rotation in order to

install it in a comfortable op-

eration position�

"Chiseling" mode�

Prohibited�

Double insulation / protec-

tion class�

Attention� Important�

A sign certifying that the

product complies with es-

sential requirements of the

EU directives and harmo-

nized EU standards�

Useful information�

Wear protective gloves�

Stepless speed control�

Do not dispose of the power

tool in a domestic waste

container�

Power tool designation

Power tools allow the following types of work to be per-

formed:

• drilling without impact (in wood, synthetic materials,

metal);

• impact drilling (in brick, concrete, natural stone);

• chiseling works (slotting cable channels in brick,

concrete, stone, removing old tiles, etc�);

• loosening and tightening threaded fasteners�

Power tool components

1 Сhuck SDS PLUS

2 Dust protection casing

3 Fixing bush

4 Retainer *

5 Depth stop *

6 Additional handle *

7 Lock button

8 Function switch

9 Ventilation slots

10 Rotational direction switch

11 On / off switch

12 Lock-on button

13 Screw *

14 SDS PLUS adapter *

15 Gear rim chuck *

16 Drill chuck key *

17 Dust collector *

* Optional extra

Not all of the accessories illustrated or described

are included as standard delivery.

Installation and regulation of power tool

elements

Before carrying out any works on the power tool it

must be disconnected from the mains.

Do not draw up the fastening elements

too tight to avoid damaging the thread.

Mounting / dismounting / setting-up of

some elements is the same for all power

tool models, in this case specic models

are not indicated in the illustration.

Additional handle (see g. 1)

Always use the additional handle 6 when operating�

Additional handle 6 may be positioned as deemed

comfortable by the user�

• Loose additional handle 6 as shown in g. 1.

• Place additional handle 6 in desired position�

• Tighten additional handle 6 as shown in g. 1.

Depth stop (see g. 2)

Use depth stop 5 to set a required drilling depth (see

g. 2).

• Press and hold retainer 4�

• Move depth stop 5 to set a required drilling depth�

• Release retainer 4�
