Cooker Hood / User Manual
15 / EN
650 mm
650 mm
570
440
386
298
310
530
274
508
ELEKTRİKLİ GAZLI
ELECTRO GAS
WORKTOP
TEZGAH
A,B,C,D = Ø3
B
A
C
D
MOUNTING TEMPLATE SCALE 1:1
MONTAJ ŞABLONU SKALA 1:1
H670.1170.0 5.01
Th�s area shows the d�mens�ons of furn�ture cutt�ng.
Bu alan mob�lya kes�m ölçüler�n� göstermekted�r.

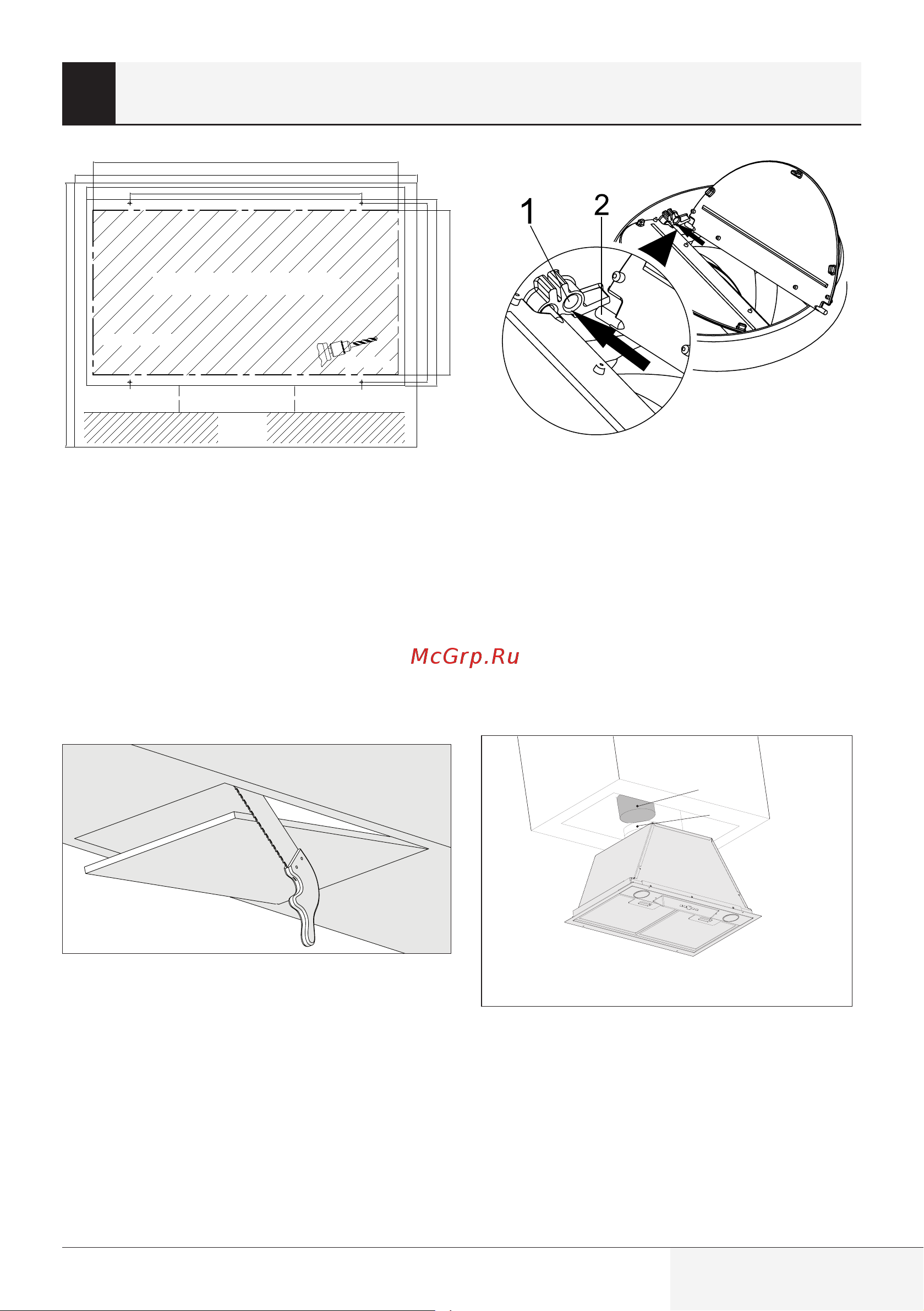

Figure 1
5.4 Drilling mounting holes
• Adhere the installation template provi-
ded with the appliance onto the surface
on which the installation will be carried
out.
• Drill the holes indicated on the installa-
tion draft with A, B, C, D using a Ø4 mm
drill bit. (Figure 1)
Figure 2
• Cut the lower surface of the cabinet
where the hood will be installed in the
dimensions specified in the technical
drawing (Figure 2).
Figure 3
1. Flap Pin Socket
2. Flap Pin
Insert the plastic pin (Figure 3/area no. 2)
on the pin socket on the motor exhaust
(Figure 3/area no.1). Then bend the flap
lightly to insert the other pin on the flap
and insert the other pin to its socket
(Figure 3).
1
2
Figure 4
1. Air discharge pipe
2. Air exhaust flue of the hood
If you are to use the Ø 120/150 mm
plastic flue adapter, attach one end of
the pipe to this adapter; if not, attach the
air discharge pipe of the product to the
5 Setting up the device
