Kuppersberg GIM 6078 [74/160] Built in installation for the integrated model

TECHNICAL PASSPORT ENGLISH

Dishwasher

Built-In Installation (for the integrated model)

Step 1. Selecting the best location for the dishwasher

The installation position of the

dishwasher should be near the existing

inlet and drain hose and power socket.

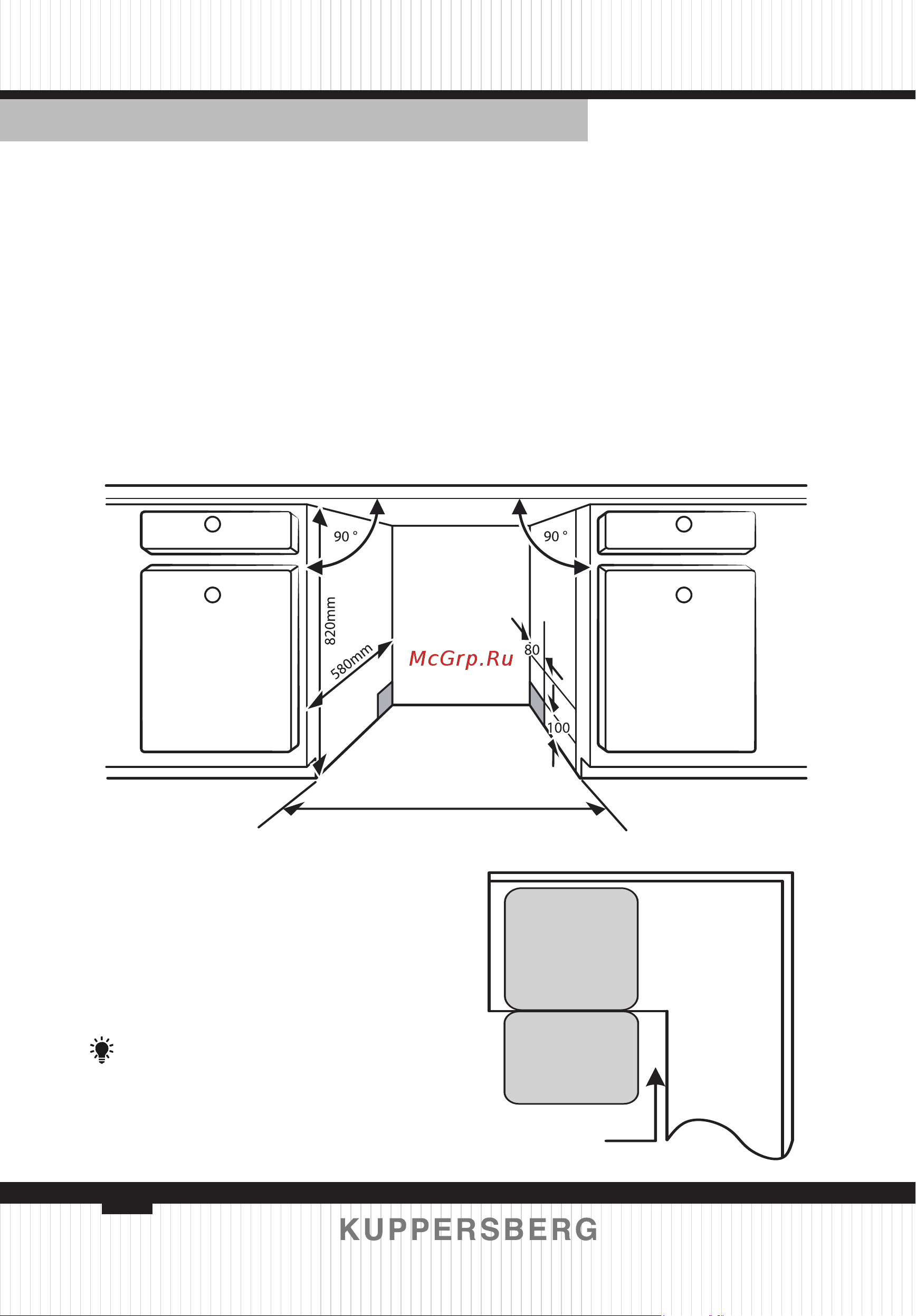

Illustrations of cabinet dimensions

and installation position of the

dishwasher.

1. Less than 5 mm between the

top of dishwasher and cabinet and the

outer door aligned to cabinet.

2. If dishwasher is installed at the

corner of the cabinet, there should be

some space when the door is opened.

NOTE:

Depending on where your electrical

outlet is, you may need to cut a hole in

the opposite cabinet side.

Dishwasher Cabinet

Door of

dishwasher

Minimum space

of 50mm

600 mm(for 60cm model)

450 mm(for 45cm model)

Space between cabinet

bottom and oor

Electrical, drain

and water

supply

line connection
