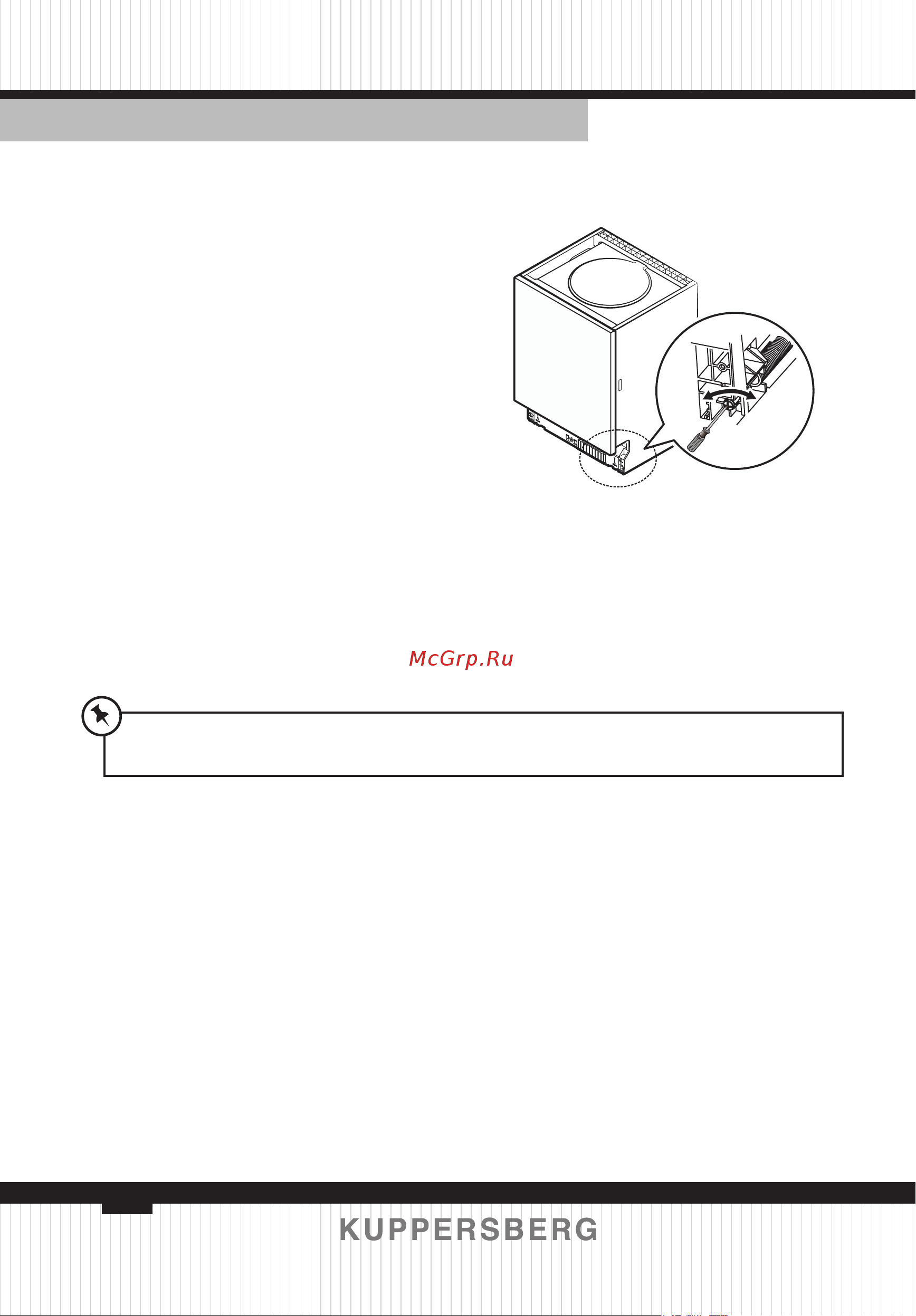

Step 3. Tension adjustment of the door spring

Step 4. Dishwasher installation steps

Please refer to the specic installation steps in the installation drawings.

1. Afx the condensation strip un-

der the work surface of cabinet. Please

ensure the condensation strip is ush

with edge of work surface.

2. Connect the inlet hose to the

cold water supply.

3. Connect the drain hose.

4. Connect the power cord.

5. Place the dishwasher into the

cabinet.

6. Level the dishwasher. The rear

food can be adjusted from the front of

the dishwasher by turning the a Philips

screw in the middle of the base of dish-

washer use a Philips screw driver. To ad-

just the front feet, use a at screw driver

and turn the front feet until the dish-

washer is level.

7. Install the furniture door to the

outer door of the dishwasher.

8. Adjust the tension of the door

springs by using a Philips screw driver

turning in a clockwise motion to tighten

the left and right door springs. Failure to

do this could cause damage to your dish-

washer.

1. The door springs are set at the

factory to the proper tension for the

outer door. If aesthetic wooden panel

are installed, you will have to adjust

the door spring tension. Rotate the

adjusting screw to drive the adjustor to

strain or relax the steel cable.

2. Door spring tension is correct

when the door remains horizontal in

the fully opened position, yet rises to a

close with the slight lift of a nger.
