4. STARTING OPERTION

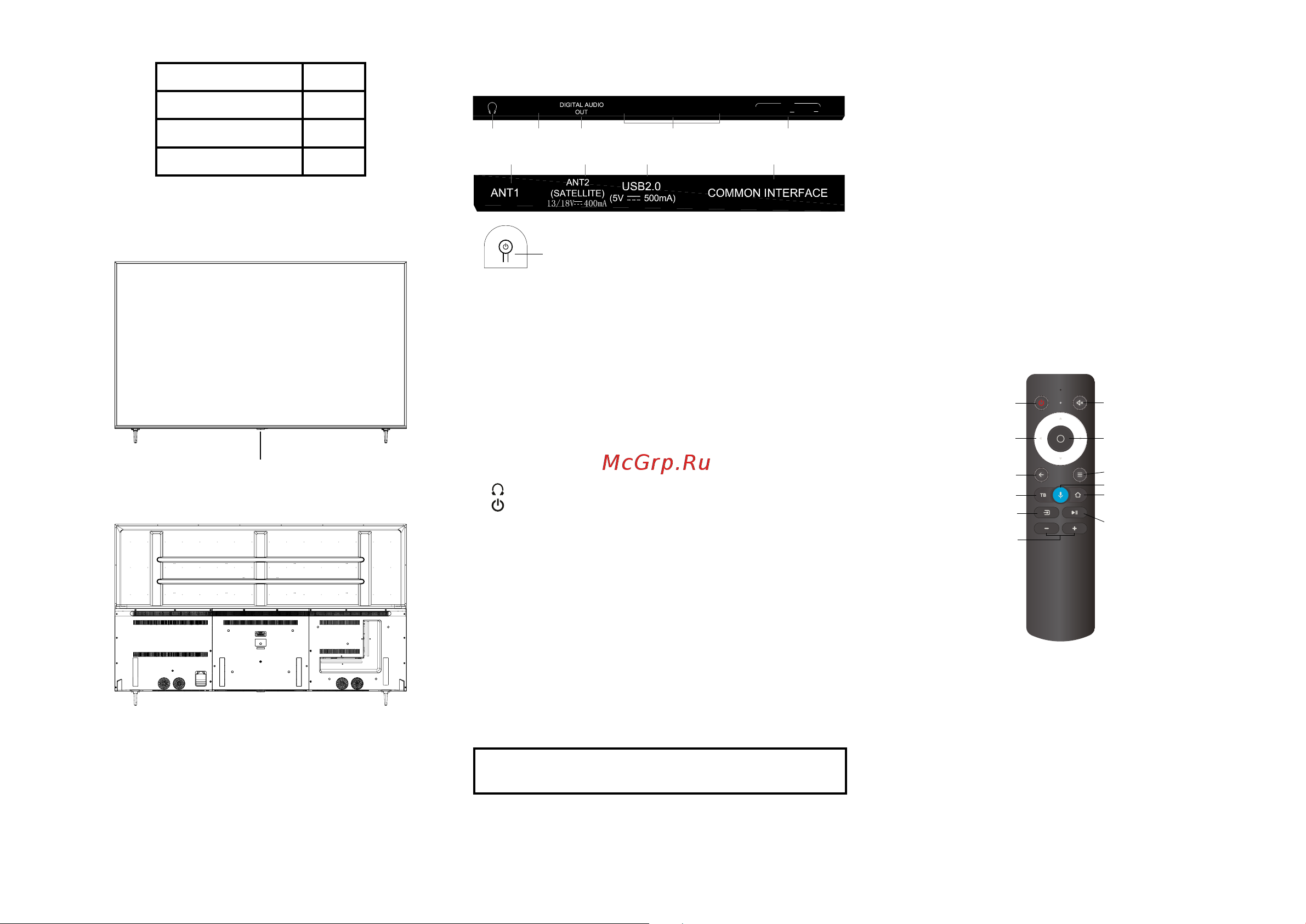

FRONT PANEL OF THE TV

Please carefully read the relevant sections “Important Notices and Warnings” and

“Safety Precautions” before operating the appliance.

Remote control sensor / Power indicator

BACK PANEL OF THE TV

SIDE PANEL OF THE TV

LAN

HDMI1 HDMI3

HDMI2

(ARC)

VIDEO L

AUDIO

1 2

LAN – LAN RJ-45 local area network connection port. Use a LAN cable with

RJ-45 connector (not included).

HDMI - input for HDMI. Ability to connect an external audio system via HDMI

Audio Return Channel (ARC) for HDMI2 input only.

USB – port for connecting USB 2.0 type devices (operates in “Media player”

mode).

4. ANT1 – antenna connection port (75 Ohm).

5. ANT2 (SATELLITE) – satellite antenna connection port.

6. DIGITAL AUDIO OUT – coaxial digital audio outlet.

AV – TV inlet connections for left/right audio channels from different sources

with a composite intake signal connected.

8. COMMON INTERFACE – slot for CAM module connection.

– headphone connection port.

10.

– Power ON/OFF button.

NOTE: the inlet/outlet connection options may differ depending on the specific

model.

STARTING OPERATION

Using the Remote Control

Pint the RC unit towards the RC sensor located on the TV. The RC may not work

if is some object located between it and the RC sensor on the TV.

- The RC may not work properly if the TV is operated in a brightly lit room.

The maximum effective range for proper operation of the RC unit is

approximately 7 meters.

Replacing RC Batteries

Replace depleted batteries without delay. Install the batteries according to

instructions to ensure proper operation of the RC unit.

ATTENTION! Incorrectly installed batteries can cause an explosion. Replace

the batteries with batteries of the same or equivalent type.

Installing the Batteries into the RC Unit

1. Open the cover on the back side of the RC unit.

Insert two ААА type batteries. Ensure that the “+” and “-“ markings on the

battery ends are aligned with the markings inside the battery compartment.

3. Close the battery cover.

Turning the TV On and Off

- Turning the TV on:

Connect the TV to power supply. If the TV has a main power switch, switch it on

first. In the standby mode press the power button on the RC unit to turn the TV on.

- Turning the TV off:

Press the power button on the RC to switch the TV to standby mode.

Do not leave the TV in standby mode for a long time. It is recommended to pull

the plug from the electric socket.

NOTE:

In case of an accidental power failure the TV will automatically return to standby

mode when the power supply is restored. Avoid frequent power startups and

shutdowns in order to ensure proper functioning of the TV; it is recommended

to pull the plug from the electric socket in case of an accidental power failure.

REMOTE CONTROL UNIT (RC)

TV ON/OFF button

Navigation button

Return button

Channel button

Source selection button

Sound volume control buttons

Play/Pause button

Home Screen button

Settings button

Voice Input button

OK button

Mute button

NOTE:

The RC buttons may differ from the images in the User Manual.

Initial Setup

Connect the TV to an electric socket and press the О (ON) button on the RC unit

or the TV housing. Wait for the TV to start up and display the greeting message.

Then press OK on the RC.

2. Read the user agreement and press OK on the RC.

Select the method to connect the TV to the Internet: via Wi-Fi or a local area

network. If a wireless network is used, find its name on the list, press OK on

the RC and enter the network password. To connect to a local network simply

connect the LAN cable and select Local Network. If you do not wish to connect

the TV to the Internet, press Skip — the system will proceed to RC connection
