10
.COM

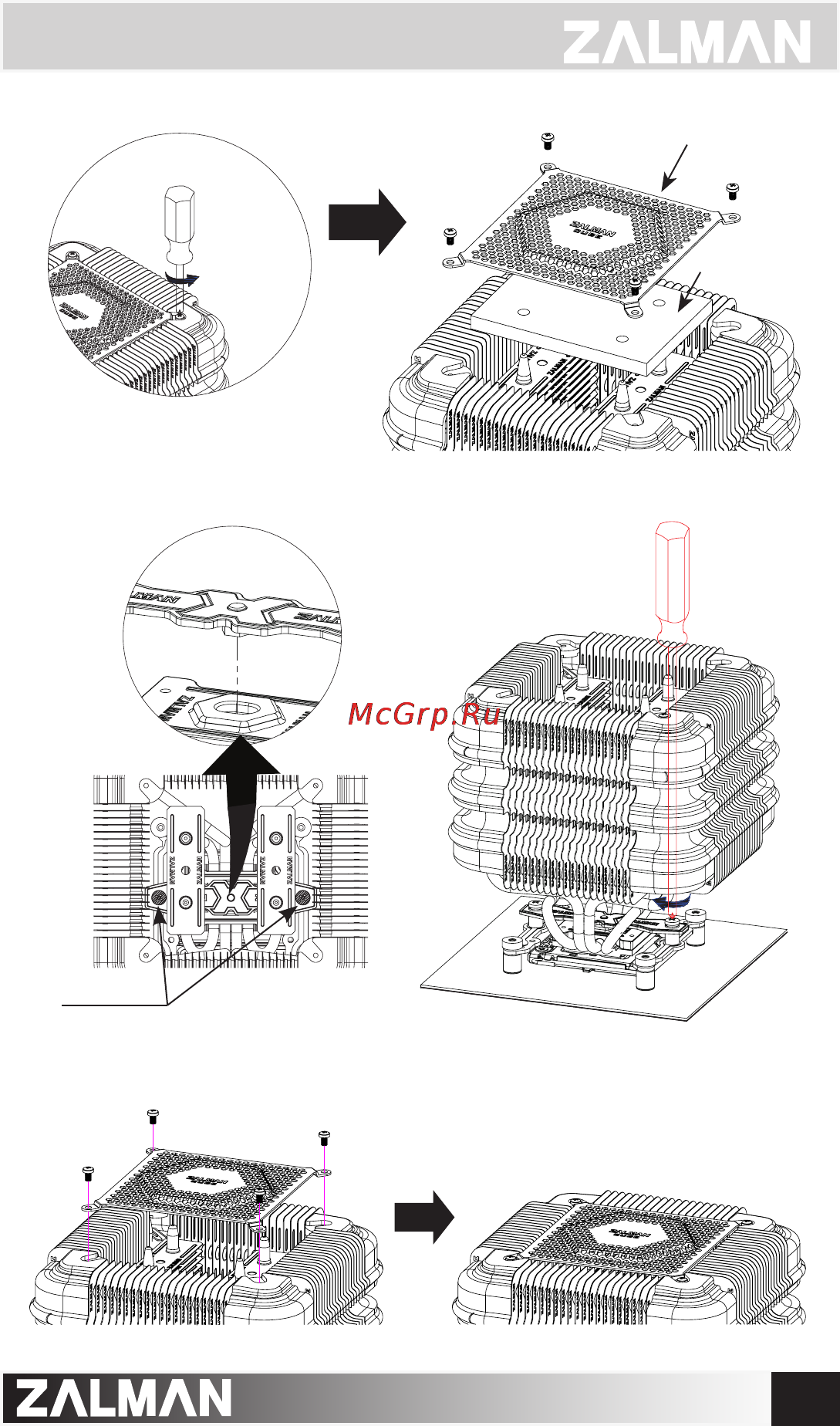

② Take off the heatsink cover and remove the protection pad.
③ Place Installation Clip on top of the base cover, and secure it by screwing
down two bolts on each end of Installation Clip.
④ Place the heatsink cover back on the cooler.
Bolt
Heatsink cover
Protection pad
