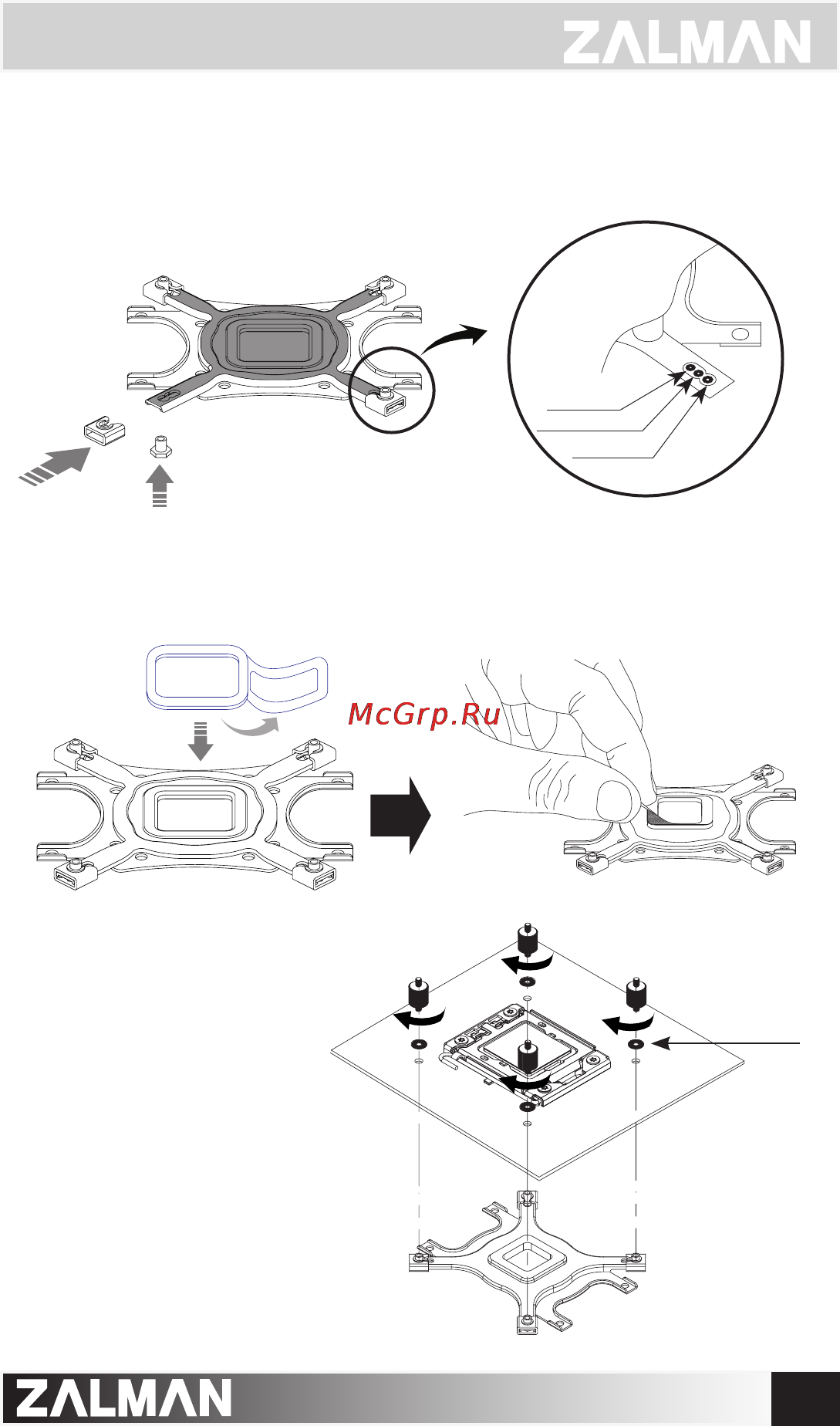

2) Intel Socket LGA 1366/1156/1155/1150 Installation
Socket 775
Socket 1156/1155/1150
Socket 1366
②
Attach Double-sided Tape to the center of the Backplate and remove
the Double-sided Tape’s Cover.
※ Socket LGA 1366/1156/1155/1150 Installation does not require the Loading Block.
① Install Bolts to the Backplate according to the Socket Type and secure with
Side Caps.
③
Align the Backplate’s nuts with
motherboard’s clip support
holes, attach it to the back side
of the motherboard, and then
fix it with Intel’s washer(0.1mm)
and Nipple A.
* Optional fan is required for LGA 1366 socket CPUs. (fan sold separately)
Intel Washer
