4. Installation Requirements
1) Space Requirments
2) Air Guide Removal
3) Cooler Orientation

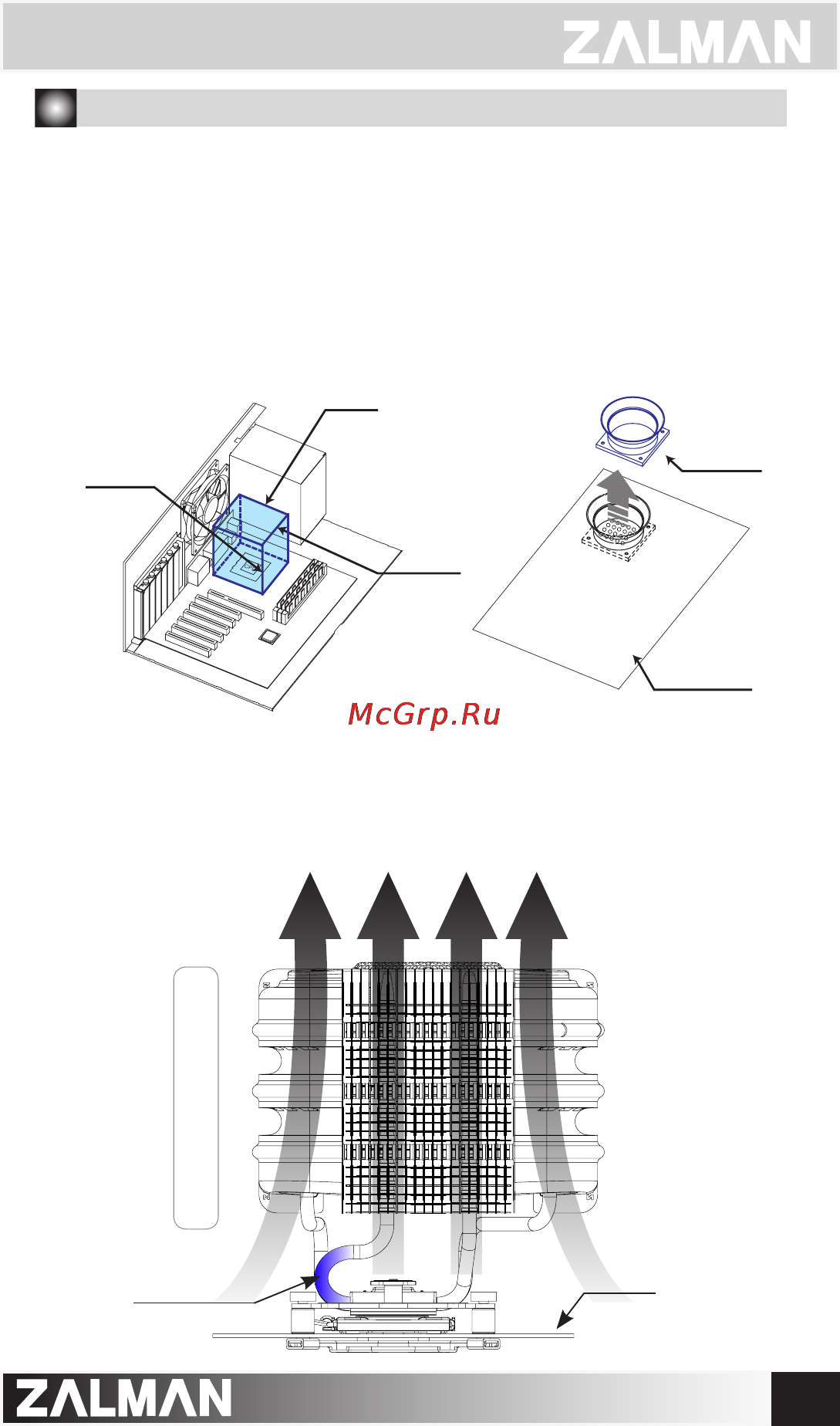

The cooler’s installation requires an unobstructed space of 156mm(width),
156mm(length), and 157mm(height), with the CPU as a central reference
point. Please check if components such as ODDs and PSU protrude into the
required space.
Air guides on enclosures must be removed before the cooler’s installation
since they protrude into the cooler’s required space.
Mount the CPU cooler with the C-shaped heatpipe portion facing towards the
VGA card (as shown below).
※ There may be clearance issues with the graphics card if the CPU cooler is
improperly installed.
156㎜
Air Guide
Case Cover
157㎜
156㎜
Mother
Board
C-shaped
heatpipe
V
G
A
C
A
R
D
