4
.COM
5. Installation
A.
Intel Socket Installation
※ Make sure to install the Clip Support by following specific instructions
based on your CPU socket.
※ Optional fan is required for LGA 2011 socket CPUs. (fan sold separately)
1)

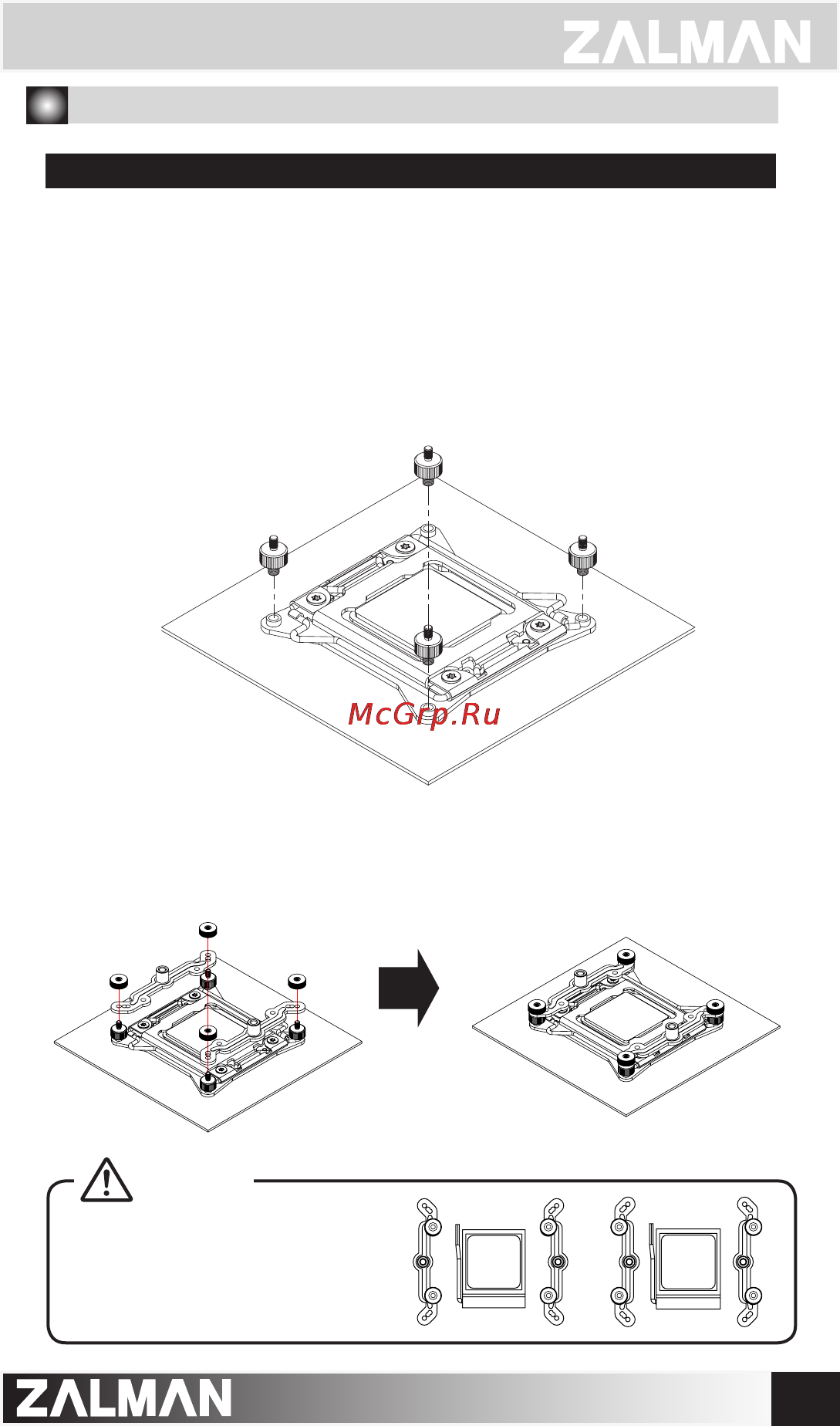

Intel Socket 2011 Installation
①
Fasten Nipple B to the clip support’s hole on the motherboard.
※ Backplate, Loading Block, and Intel's Washers(0.1mm) are not required for LGA
2011 socket CPUs.
②
Install the clip support on the motherboard using nuts.
Please make a note of the
orientation of the Clip Support.
O
X
Caution
